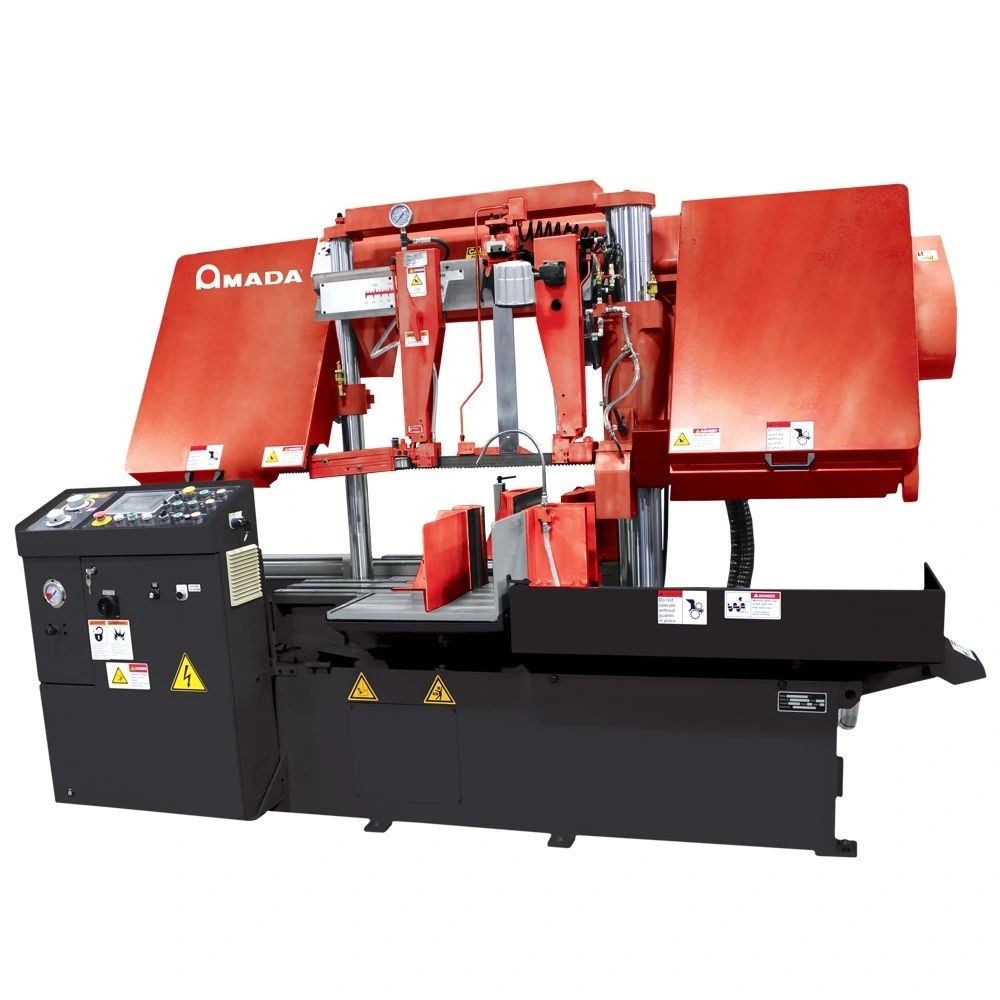

NEW AMADA HFA460P

High Production Sawing for all Materials

• Heavy-Duty
• 10 H.P.
• 1-1/2” Blade
• N/C Control

FEATURES
• Split Front Vise
• HMI Touch Screen Control
• Automatic Chip Removal
• Bi-Directional Shuttle Vise
• Full Stroking Hydraulic Vises
• Fully Adjustable Hydraulic Down Feed
• Automatic Height Selection with Fast Approach

Cutting Capacity:
Round (Diameter) 18″ 460 mm
Rectangle (W x H) 18″ x 18″ 460 x 460 mm
Work Load Capacity 7250 lb 3295 kg

Saw Blade:
Blade Size (L x T x W) 17’10” x 0.052″ x 1-1/2″ 5420 x 1.3 x 41 mm
Blade Speed 65 – 330 ft/min by Inverter 20-100 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Fast Approach Feeler
Cutting Control Hydraulic Pressure & Flow Control Valve

Vise Operation:
Type Front and Rear Vises
Control Hydraulic Full stroke cylinder

Motors:
Saw Blade 10 HP 7.5 kW
Cutting Fluid Pump 0.25 HP 0.18 kW
Hydraulic Pump 2 HP 1.5 kW

Power Requirements:
Power Supply Voltage AC230V +- 10% , 3PH, 60Hz, Required at factory voltage setting
Cutting Fluid Pump @@ kVA

Pressure Settings Hydraulic 569 PSI 4.0 MPa

Material Index:
Index Mechanism Shuttle Vise
Stroke 19.7″ 500 mm
Length 0.39″ – 999″ 10 – 25000 mm
# of Input Block 1-100
# of Input Station 1-20
# of Cut-Off Pieces 1-999
Remnant Length 2.75″ plus length of parts 70 mm plus length of parts

Fluid Capacities:
Coolant @@ gal @@ liters
Hydraulic Fluid @@ gal @@ liters

Machine Dimensions (W x L x H)
Head Up Position 109.2″ x 85.4″ x 66.4″ 2774 x 2170 x 1686 mm
Head Down Position 109.2″ x 85.4″ x 66.4″ 2774 x 2170 x 1686 mm

Chip Disposal Chip Conveyor

Table Height 29″ 732 mm

Machine Weight 7937 lbs 3600 kg
