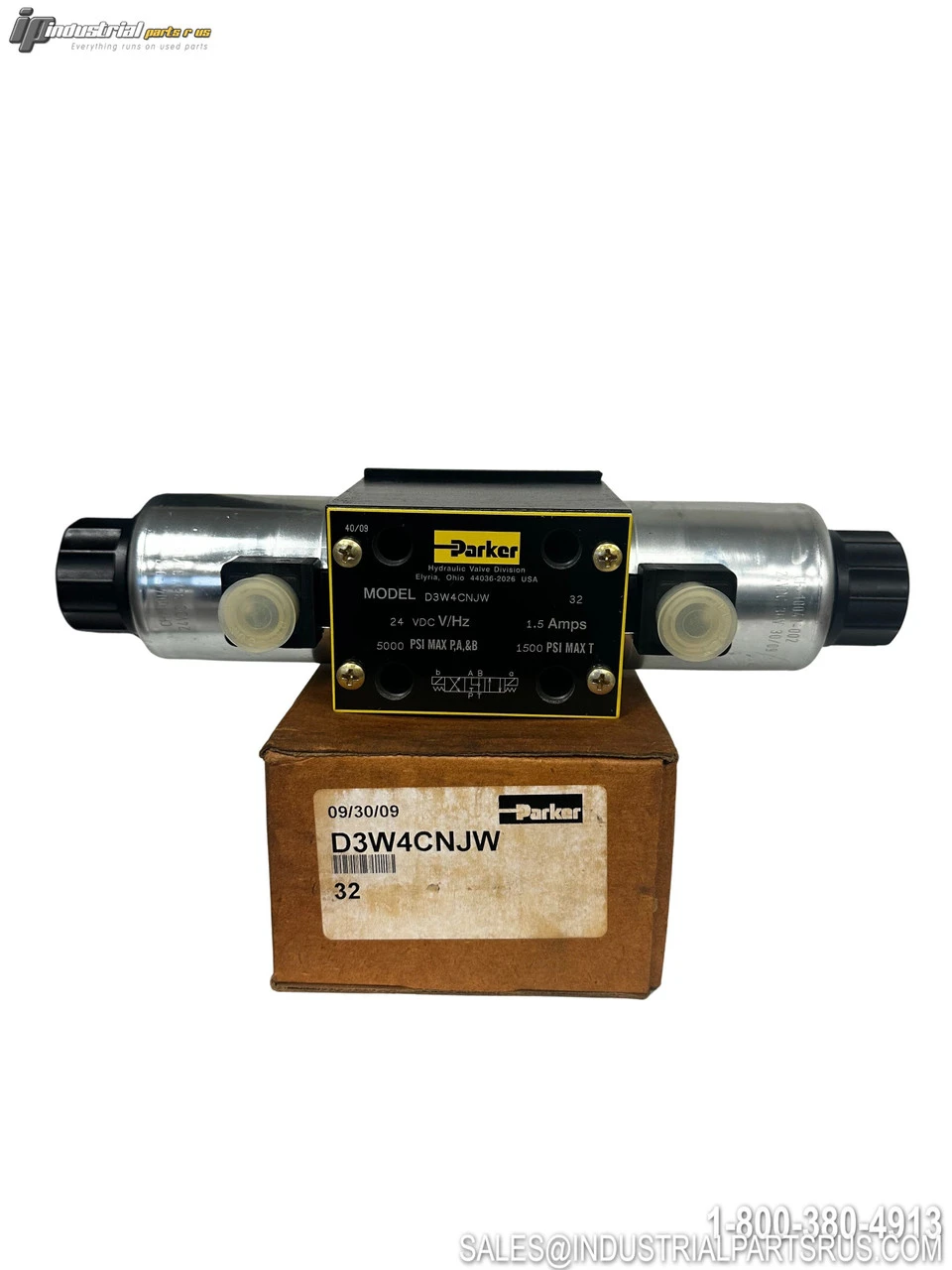

NEW PARKER D3W4CNJW
Overview
Description
The Parker D3W4CNJW is a high-performance, 4-chamber directional control valve featuring wet armature solenoid operation. This CETOP-5 compliant valve provides 3-position spring centered operation with double solenoid actuation for precision hydraulic control applications.
Specification
Value
Brand
Parker
Model/Part Number
D3W4CNJW
Product Type
Hydraulic Directional Control Valve
Series
D3W
Mounting Pattern
CETOP-5/NFPA D05/NG10
Valve Operation
Double Solenoid
Position Configuration
3-Position Spring Centered
Coil Voltage
24VDC
Maximum Operating Pressure
345 Bar (5000 PSI)
Maximum Flow Rate
150 L/min (40 GPM)
Tank Pressure Rating
103 Bar (1500 PSI)
Seal Material
Nitrile (Buna-N)
Connection Type
DIN 43650 w/o Plug
Spool Configuration
Spool 4
Weight
3.00 lbs
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI0460
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Equipment Type: Hydraulic Valve
Manufacturer: Parker
Part Number: D3W4CNJW
Shelf: K-48
Model: D3W4CNJW
MPN: D3W4CNJW
Type: Hydraulic Valve
