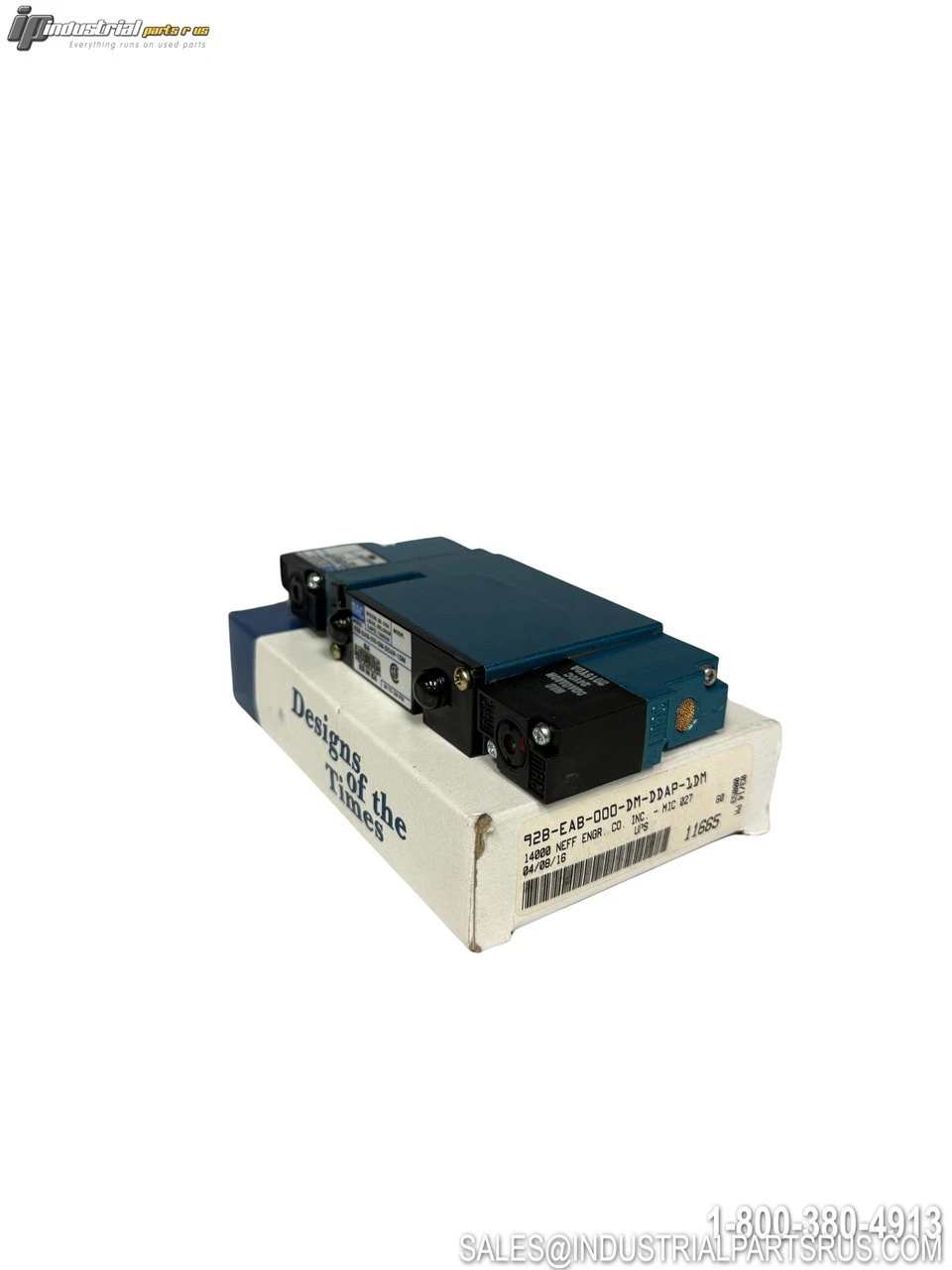

USED MAC 92B-EAB-000-DM-DDAP 1DM

The MAC 92B-EAB-000-DM-DDAP 1DM is a 5/3-way closed center double solenoid piloted valve from the MAC 92 Series. This valve features built-in auxiliary pilot valve with non-locking recessed manual operator and offers superior performance with patented MACSOLENOID technology for fastest response times and virtually burn-out proof operation.
Specification
Value
Brand
MAC
Model/Part Number
92B-EAB-000-DM-DDAP 1DM
Series
92 Series
Valve Configuration
5/3-way Closed Center
Operation Type
Double Solenoid
Voltage
24VDC
Power
5.4W
Pressure Range
35-120 PSI
Temperature Range
0°F to 120°F (-18°C to 50°C)
Exhaust Type
Muffled Pilot Exhaust
Connection Type
Plug-in Control
Cable Length
8 inches (20cm)
Manual Operator
Non-locking Recessed
Valve Type
Spool Valve
Pilot Type
Built-in Auxiliary Pilot
Operation
Pneumatic Spring Reset/Monostable
Dimensions
H125mm x D170mm
Indicator Light
Yes
Weight
0.95 lbs
Media
Compressed Air, Inert Gases, Vacuum
We warranty all items for 30 days from date of purchase.

SKU: AI0469
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Taiwan
Manufacturer: Mac
Part Number: 92B-EAB-000-DM-DDAP 1DM
Shelf: A-18
Model: 92B-EAB-000-DM-DDAP 1DM
MPN: 92B-EAB-000-DM-DDAP 1DM
Type: Solenoid Valve
