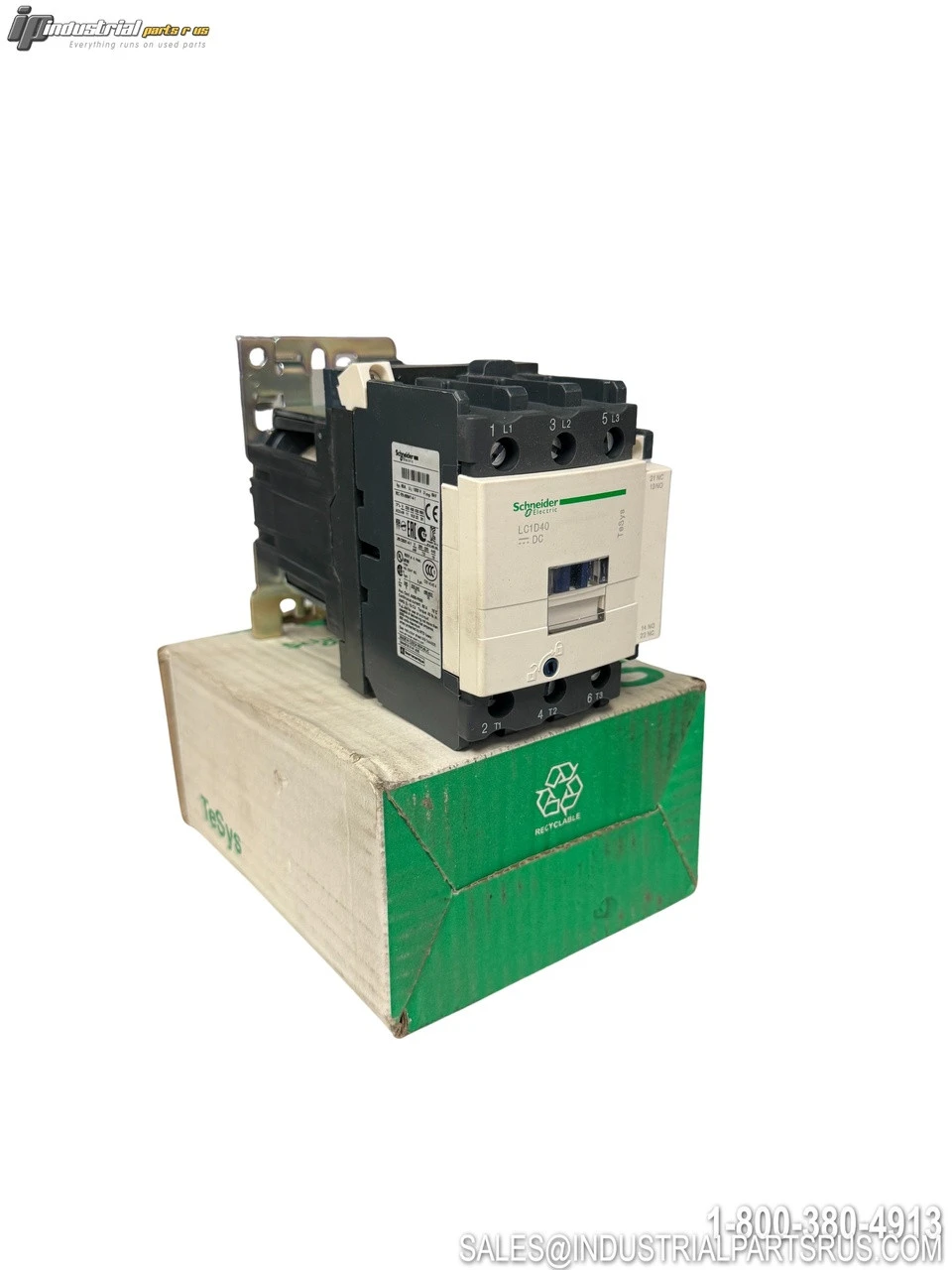

NEW SCHNEIDER ELECTRIC LC1 D40BD

The Schneider Electric LC1D40BD is a 3-pole IEC contactor from the TeSys D series designed for industrial motor control applications. This non-reversing contactor features a 40A AC-3 inductive rating and 24VDC coil voltage, making it suitable for controlling motors up to 30HP at 480VAC and provides reliable switching for demanding industrial applications.
Specification
Value
Brand
Schneider Electric
Model/Part Number
LC1D40BD
Series
TeSys D
Poles
3-Pole (3 N.O.)
Inductive Current Rating (AC-3)
40A
Resistive Current Rating (AC-1)
60A
Coil Voltage
24VDC
Coil Voltage Range
18-30VDC
Coil Power
14W at 24VDC
Maximum Voltage Rating
600VAC
Rated Operating Voltage (Ue)
690V
Rated Impulse Voltage (Uimp)
6kV
Horsepower Rating (1-Phase)
3HP@115VAC, 5HP@230VAC
Horsepower Rating (3-Phase)
10HP@200/230VAC, 30HP@460/575VAC
Auxiliary Contacts
1NO + 1NC built-in
Connection Type
Screw Clamp Terminals
Mounting Type
DIN Rail or Panel Mount
Degree of Protection
IP20
Mechanical Durability
15,000,000 operations
Electrical Durability
10,000,000 cycles
Action Type
Non-Reversing
Application Type
Direct On Line (DOL) FVNR
Short Circuit Current Rating
Up to 100kA SCCR
We warranty all items for 30 days from date of purchase.

SKU: AI0464
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 40A
Manufacturer: Schneider Electric
Part Number: LC1 D40BD
Shelf: K-50
Model: LC1 D40BD
MPN: LC1 D40BD
Type: Contactor
