USED OMRON WL G2-LDS-M1GJ-1

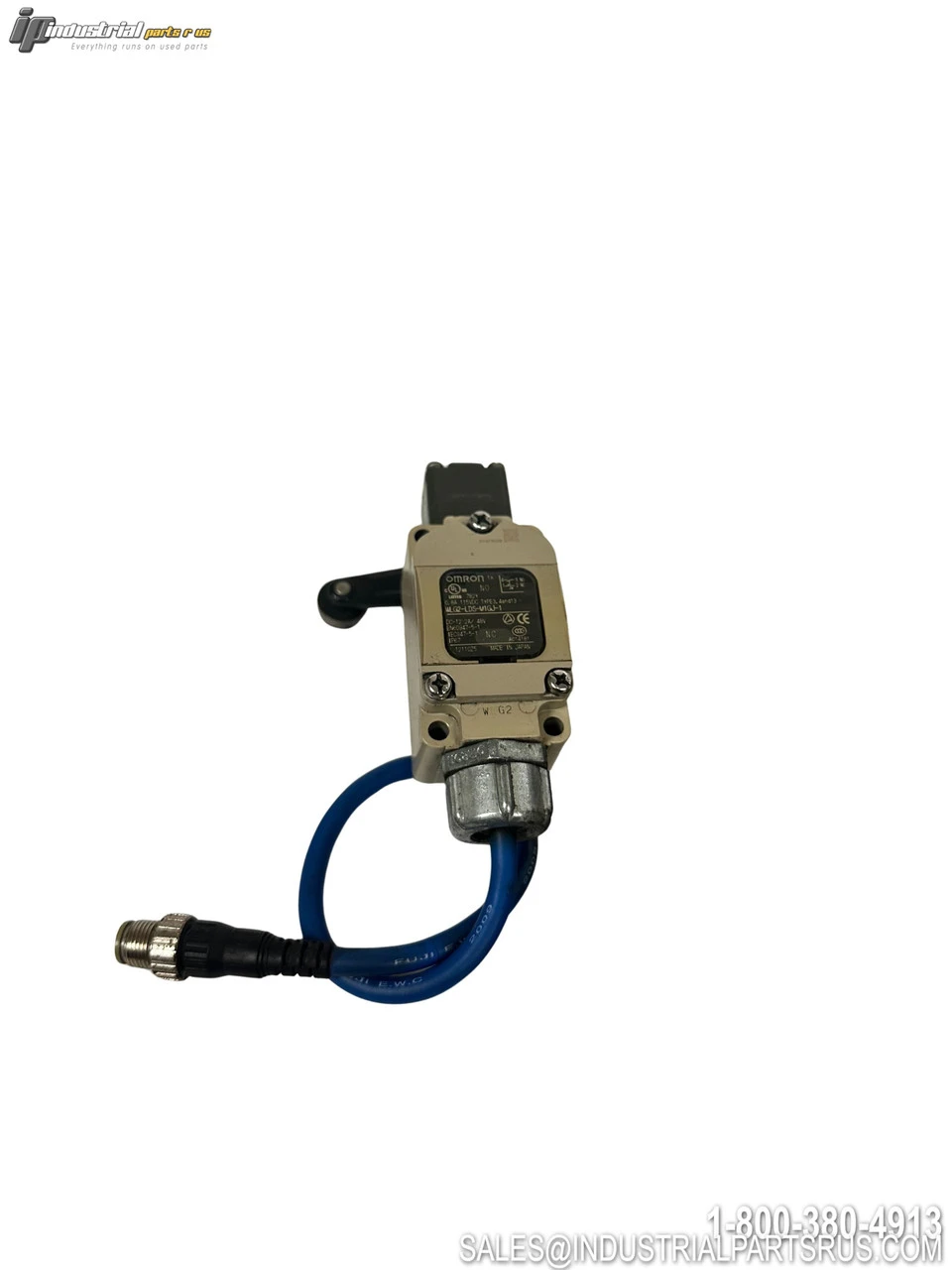

The Omron WLG2-LDS-M1GJ-1 0.3M is a high-sensitivity overtravel limit switch with roller lever actuator and LED operation indicator. This limit switch features SPDT contacts and is designed for reliable operation in industrial automation applications. The switch includes a pre-wired connector with 0.3-meter cable and offers excellent durability with IP67 protection rating.
Specification
Value
Brand
Omron
Model/Part Number
WLG2-LDS-M1GJ-1
Series
WL
Actuator Type
Roller Lever (High-Sensitivity Overtravel)
Circuit Type
SPDT
Contact Rating AC
5A @ 125VAC
Contact Rating DC
400mA @ 125VDC
Voltage Rating AC
125V
Voltage Rating DC
125V
LED Voltage
10 to 115 VAC/DC
Operating Temperature
-10°C to 80°C
Operating Force
1000gf
Release Force
100gf
Pretravel
10°
Differential Travel
7°
Overtravel
65°
Cable Length
0.3m
Protection Rating
IP67
Mounting Type
Chassis Mount
Termination Style
Cable with Connector
Indicator Type
LED
Connection Pins
Pin 1, 4 (DC NO Wiring)
Features
Spatter Prevention, Status Indicator
We warranty all items for 30 days from date of purchase.

SKU: AI0472
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Omron
Part Number: WL G2-LDS-M1GJ-1
Shelf: K-5
Model: WL G2-LDS-M1GJ-1
MPN: WL G2-LDS-M1GJ-1
Type: Limit Switch
