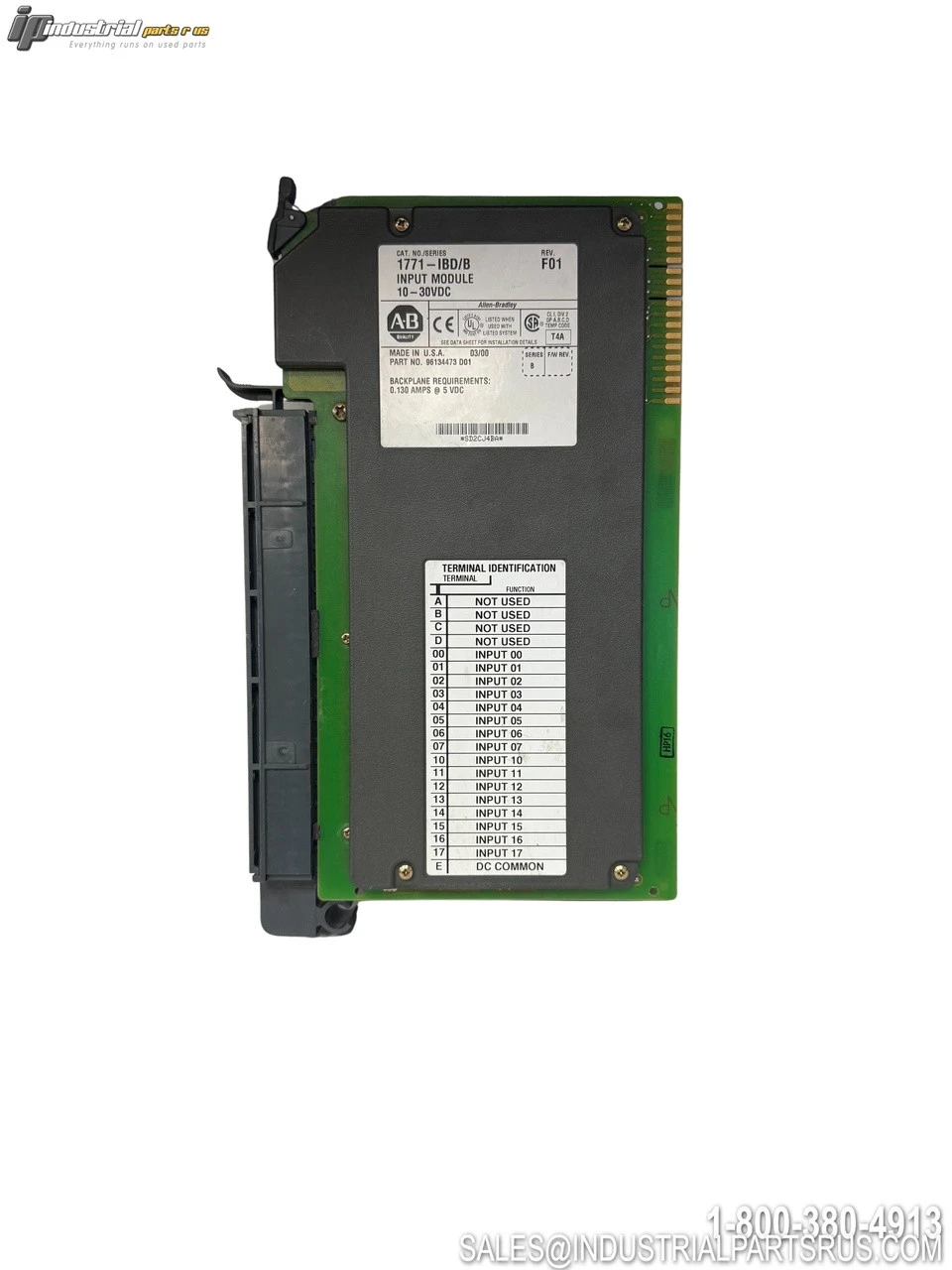

USED ALLEN-BRADLEY 1771-IBD/B

The Allen-Bradley 1771-IBD/B is a Series B discrete DC input module designed for the PLC-5 control system. This 16-point digital input module provides reliable signal detection for DC sensors and switches operating between 10-30VDC with sink (source load) configuration.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
1771-IBD/B
Series
B
Platform
PLC-5
Module Type
Digital DC Input Module
Input Points
16
Input Voltage
10-30VDC
Circuit Logic
Sink (Source Load)
Backplane Current
130mA
Minimum On-State Voltage
10VDC
Maximum Off-State Voltage
5VDC
Maximum Off-State Current
2.0mA
Input Signal Delay
1.3ms ±0.1 (On/Off)
Power Dissipation
7.3W max, 1.0W min
Wiring Arm
1771-WH
Operating Temperature
0 to 60°C (32 to 140°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Relative Humidity
5 to 95% (non-condensing)
Dimensions
3.5 x 6.5 x 2.0 inches
Weight
1.06 lbs
We warranty all items for 30 days from date of purchase.
