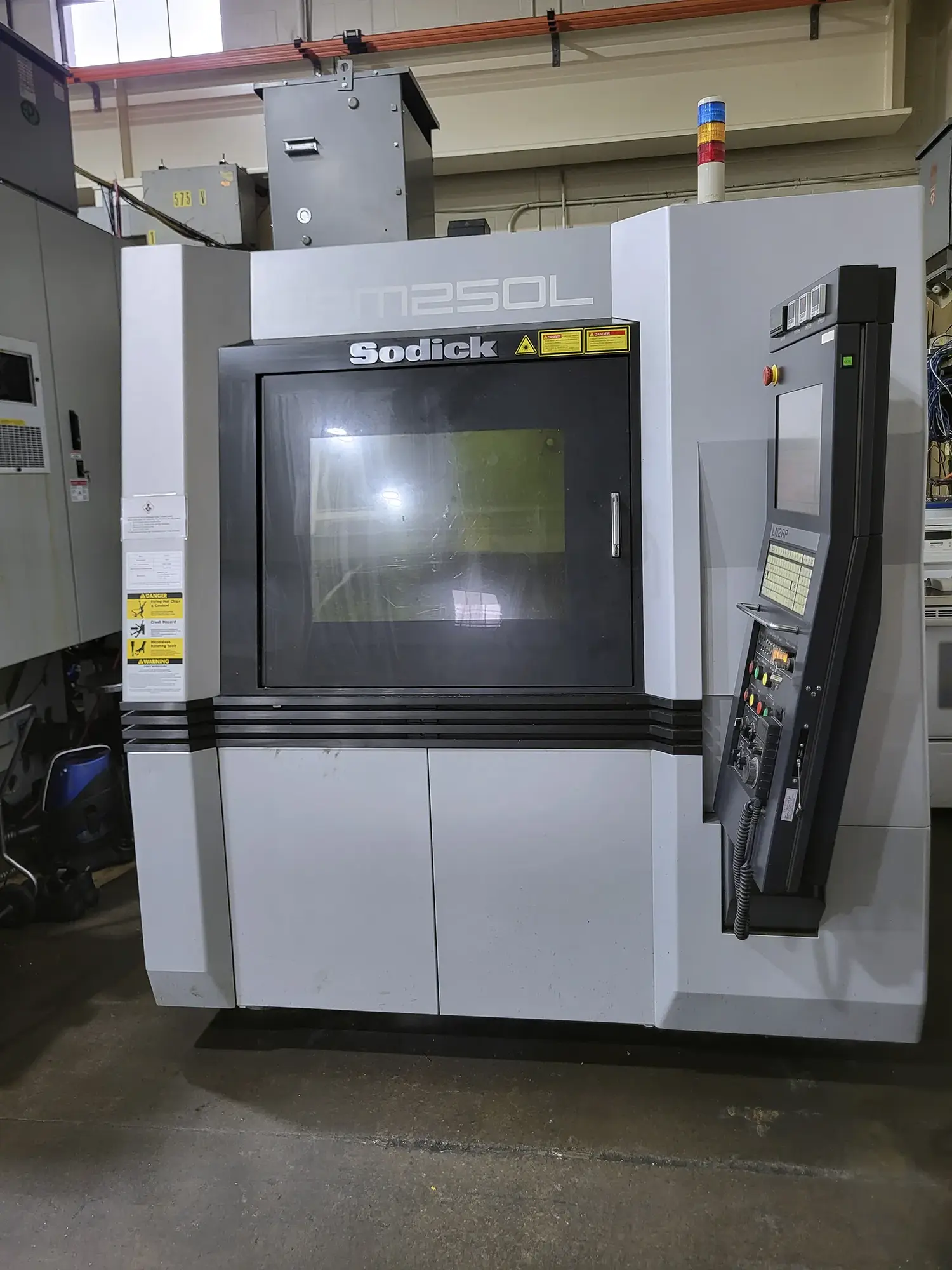

USED 2016 SODICK OPM250L
Overview
One-Process Efficiency: Combines printing and finishing in a single workspace. Eliminating the need for post-process EDM or separate CNC setups
The Sodick OPM250L (2016) Hybrid Metal 3D Printer and CNC Mill combines metal additive manufacturing with precision CNC milling to produce complex, high-hardness steel molds in a single setup. Ideal for creating conformal cooling channels that reduce injection molding cycle times by up to 60%, it is widely used for precision tooling, mold & die production, and advanced components in aerospace and medical industries.
Specs
Max Spindle Speed: 45,000 RPM
X-Axis Travel: 10.24" (260 mm)
Y-Axis Travel: 10.24" (260 mm)
Z-Axis Travel: 10.24" (260 mm)
Spindle Z-Axis Stroke: 3.94" (100 mm)
Tool Holder Type: HSK-E25 (Dual face contact)
Max Workpiece / Build Size: 9.84" x 9.84" x 9.84"(250mm x 250mm x 250 mm)
Molding Tank Inner Dimensions:: 11.42" x 11.42"(290mm x 290 mm)
Max Workpiece Weight: 220 lbs (100 kg)
Laser Type: Yb (Ytterbium) Fiber Laser
Max Laser Output: 500 W
Laser Wavelength: 1070 nm
Laser Scanning Method: Galvano Method
Power On Time: 20779 Hrs
Cut Time: 1244 Hrs
Laser Time: 3173 Hrs
Spindle Time: 1712 Hrs
Overall Machine Dimensions: 73.62" x 87.80" x 80.91" (1,870mm x 2,230mm x 2,055 mm)
Machine Weight: 9,920 lbs (4,500 kg)
Equipped With
Sodick LN2RP CNC Control
Sodick OS-FLASH CAM Software
Automatic Tool Changer (ATC): 16 Position Automatic Tool Changer
Tool Measurement: Blum Laser Tool Length Measuring System
Drive System: Rigid Linear Motors (X- Y- Z axes)
Absolute Linear Glass Scales (X/Y/Z)
High Speed Spindle Chiller Unit
Automatic Material Recovery System (MRS): Integrated unit for powder supply. collection. and automatic sieving for material recycling with dedicated Sinter software
Fume Collector
Nitrogen Supply Interface
Conformal Cooling Capability
