Tailstock
Steady Rest
Chip Conveyor
Tool Post
Coolant System
Inch/Metric Threading
All Available Tooling
All Available Manuals

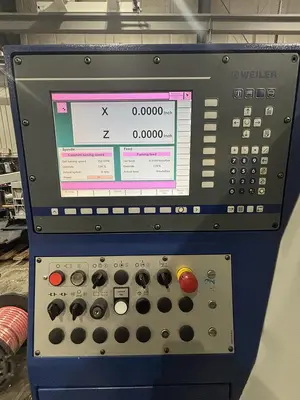

Machine Control: Weiler

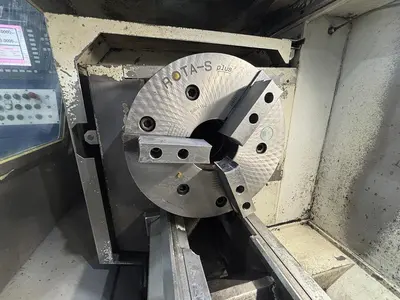

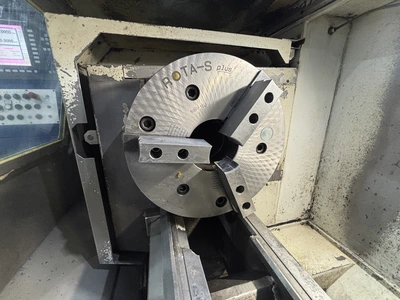

Chuck type: 20" 3 Jaw Chuck
Swing over bed: 22.44"
Swing over cross slide: 13.39"
Distance between centers: 78.74"
X axis travel: 13.39"
Z axis travel: 78.74"
Spindle Bore: 6.5"
Spindle Speeds: 1,500 RPM
Spindle Motor: 20 HP
Turret type: 4 Position Tool Post
Tailstock center: #5 MT
Tailstock quill diameter / stroke: 3.15" / 7.87"
Metric Threads: 0.001" - .78"
Inch Threads: 112 1/64 TPI
Modular Threads: 0.001" - 2.20"
Diametral Threads: 448 - 0.05 DP
Number of Thread Courses Max: 360
Machine Dimensions: 173" x 91" x 75"
Machine Weight: 9,370 lbs.
