USED 1999 COOPER WEYMOUTH PETERSON #8R-72 / #30060 CLC / #HD72-PDSTT / #SMX72H6
Overview
Description

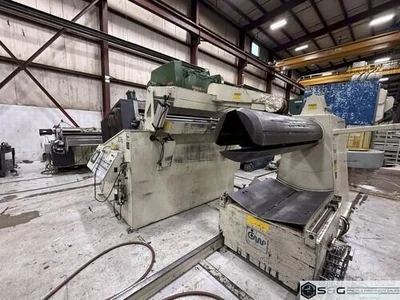

30,000 lbs. x 72" Wide COOPER WEYMOUTH PETERSON Servo Coil Feed Line For Sale - Good Condition!
Specifications
Coil Weight: 30000 pounds
Coil Width: 72 inches
Coil Thickness: .125 inches
Cooper, Weymouth, Peterson (CWP)
"Conventional" Servo Coil Feed Line
72 inch Wide x .125 inch Capacity30,000 lbs. Maximum Coil Weight at Full Width72" Maximum Coil O.D..125" x 72" Stock Thickness.285" x 24" Wide Stock Thickness Capacity19.5" - 24.5" Mandrel Expansion RangeLine Speed 75 FPMSN/ C8223-1/3

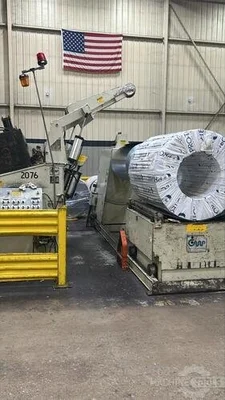

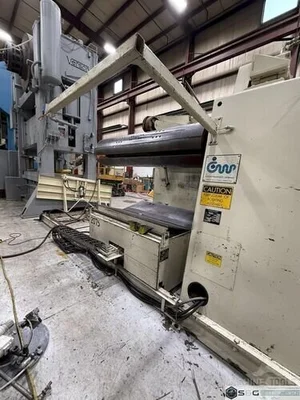

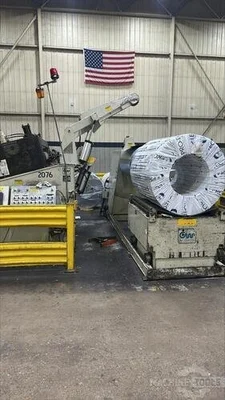

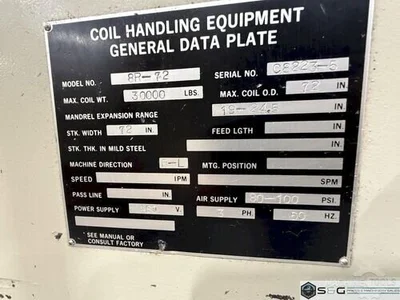

CWP Coil Reel Model No. 8R-72Three leaf mandrel Hydraulic mandrel expansion Air brake (adjustable tensioning) Jog forward and reverse Traveling coil load car Powered lift and travel

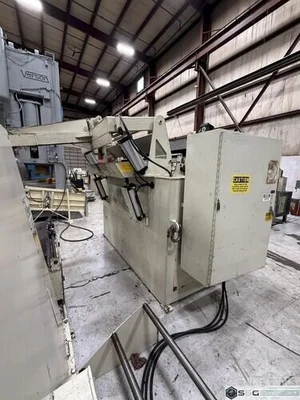

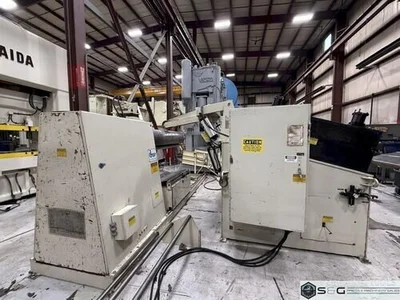

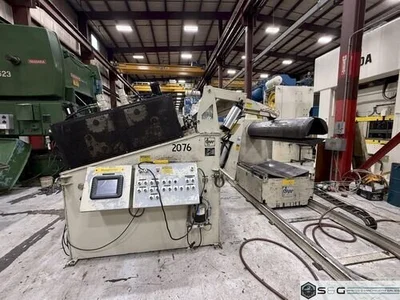

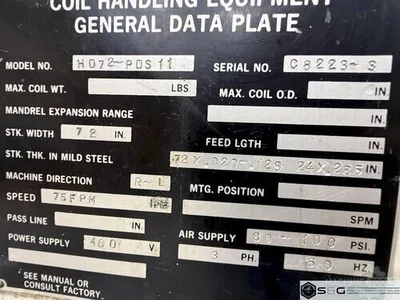

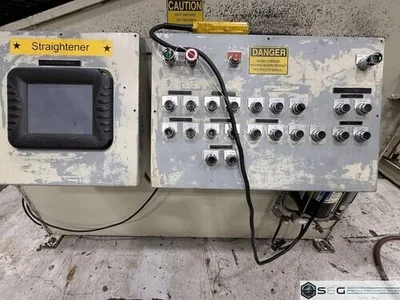

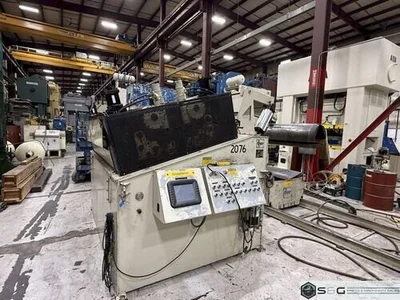

CWP Powered Coil Straightener Model No. HD72-63PDS11Eleven straightening rolls x 3" diameter Back ups on upper and lower straightening rolls Motorized upper roll adjustments Coil hold down arm with motorized end wheel Stock peeler table AC Variable speed drive and control system Operator's controls Loop control

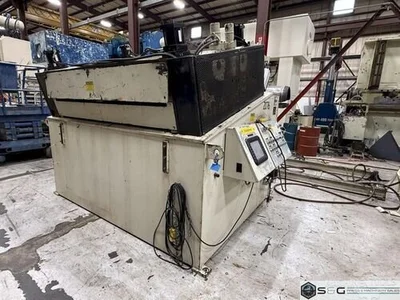

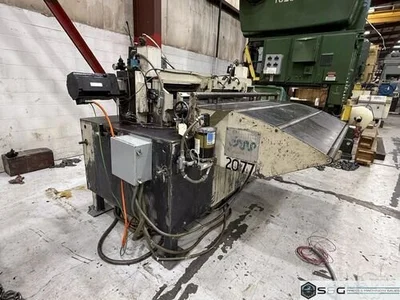

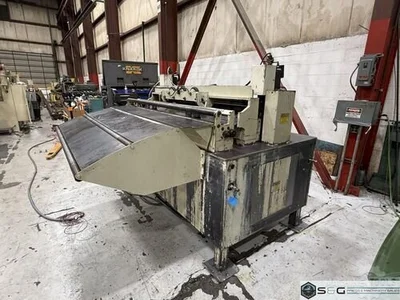

CWP Servo Roll Feed Model No. SMX72-H6-RETSix inch diameter upper and lower feed rolls Piloting upper feed roll Entry cascade loop support rollers Adjustable stock width edge guides Heavy duty cabinet base Adjustable pass line 50" +/- 6"Automatic lubrication AC Servo Controls SE Series
Maximize your stamping productivity with this heavy-duty CWP (Cooper Weymouth Peterson) Conventional Servo Coil Feed Line. Designed for high-volume operations, this 72" wide coil line features a 30,000 lbs. capacity and handles stock thicknesses up to .125" at full width and .285" at 24" widths.
The system includes a CWP 8R-72 Coil Reel with a traveling load car, a Model HD72-63PDS11 Straightener featuring 11 backed-up rolls for precision flatness, and a SMX72-H6-RET Servo Roll Feed with 6" diameter rolls and SE Series AC servo controls.
Built for durability and precision, this CWP feed line offers a 75 FPM line speed and automated lubrication. Contact S&G Press today to secure this high-capacity used coil processing equipment for your facility.
