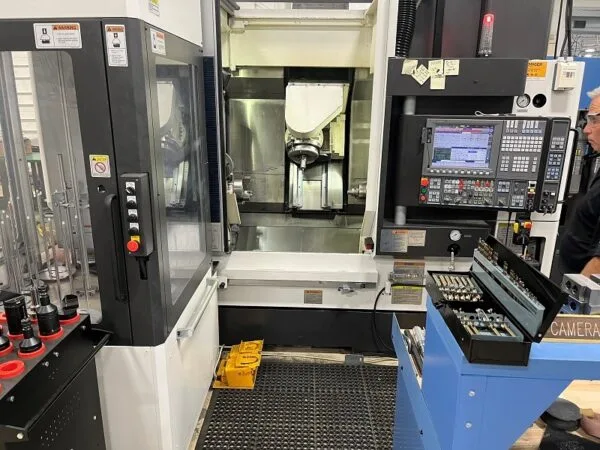

OKUMA MULTUS B250II-1SW/750 ARMROID – 2022

OKUMA MULTUS B250II-1SW/750 ARMROID
Product Details:

Chuck Size 8″

Max Diameter Bar Capacity 2.6″

Spindle Motor 30 / 20 HP

Spindle Speed 5000 RPM

Spindle Nose A2-6

Spindle Bore 3.15″

Tools 60

Sub Spindle Chuck Size 6″

Sub Spindle Motor 15 / 10 HP

Sub Spindle Nose 140 mm Flat

Sub Spindle Speed 6000 RPM

Rapid Traverse Rates (X & Z / Y / W) 1575 / 1023 / 787 ipm

X-Axis Travel 19.69″

Z-Axis Travel 31.5″

Y-Axis 7.87″

C-Axis Index (Left & Right Spindles) .001 Degrees

Distance Between Spindles 40.55″

H1 Index 0.001 Degrees

H1 Spindle Speed 50 – 12000 RPM

H1 Swivel 225 Degrees

Max Tool Diameter 3.54″ / 5.12″

Max Tool Length 7.87″

Max Tool Weight 8.8 lbs.

Max Turning Diameter 23.62″

W-Axis Travel (Sub Spindle) 31.89″
Features:

• OKUMA OSP-P300SA-H CNC Control

• 12.1″ Color TFT

• USB Port

• H1 Upper Tool Spindle

• Programmable Sub Spindle

• Kitagawa 8” BB208 Hydraulic Chuck Left

• Kitagawa 6” B206 Hydraulic Chuck Right

• NC B-Axis with Contouring (0.001 Degrees)

• Armroid A201 Robot 3-Jaw Spec

• Work Stocker 6 Station Lift Up Type

• End Effector Stocker 3 Station

• End Effector Work Support Roller

• 5-Axis Machining Kit

• High Precision C-Axis Both Spindles

• Spindle Motor Upgrade 30 HP Left

• 60 Tool Magazine (Capto C6)

• Auto Gauging Renishaw RMP600 RMI-Q Capto C6

• Renishaw Inspection Plus Software with GUI – Lathe

• Y-Axis Gauging with Slope Gauging

• Z-Axis Auto Zero Offset Function Both Spindles

• C-Axis Auto Zero Offset Function Both Spindles

• Touchsetter Auto Touch Sensor Gauging Interface Renishaw RMI-Q

• Lathe Tool Index Function Multi Edge 12 Position

• Chip Conveyor Right Discharge Drum Filter High 750

• C-Axis Torque Skip Function Both Spindles

• Constant Surface Speed for Y-Axis

• Additional Light OKUMA Logo

• Coolant Splash Gun

• Lubrication Monitor B-2

• User Task III

• 10 MB Program Cap

• Three Color Tower Light

• Lathe Tool Index

• Lathe Tool THD Clamp

• Tool Clamp Output Hold

• HI-G Control

• PFC II

• (10) Sets Work Coordinates

• (500) Sets Tool Offsets

• One Touch IGF Advanced

• Tape Data In / Out

• Home Position B

• Plane Conversion

• Profile Generation

• Synchronized Tapping

• Helical Cutting

• Slant Cutting

• Home Position

• Spindle Fluctuate

• NC Torque Limiter

• GM Code Macro

• Center Compensation

• Tool Center Control

• Super-NURBS Hi

• Super Hi-NC

• Super-NURBS Rac

• Inverse Time Feed

• G00 Linear Feed

• B-Axis Interpolation

• Turret Position Clamp

• 0.0001M Control

• Lap 4

• Nose Radius 2B

• User Task 3

• Expanded Auto Chamfer

• Arc Thread Cutting

• C Zero Offset

• Y Gauging

• Optical Sensor

• Pitch Error Compensation

• Tool Life Management

• Tool Wear Compensation

• Tool Offset System

• Inch / Metric Switchable

• Cycle Time Calculation

• NC Work Counter

• Cycel Time R New

• NC Work Monitor

• Cycle Time Check

• Load Monitor

• Mac Man

• DNC T-1

• DNC DT

• Hi-Cut Pro

• Thermal Compensation L2

• Spindle Orientation

• M-Axis Orient

• Spindle Max IL

• Coordinate Conversion

• Coordinate Calculate

• Program Message

• Custom-API

• Use Tool Display

• Machining Mode

• Nose-R Direction Change

• Base Operating System

• Tool Mac Information

• Offset Base Fix

• Axis Active Stop

• Variable Lost Motion

• Servo Navi L

• CE Marking

• CE Marking Stop

• New Operation Panel

• Servo Link NC

• Servo Link Spindle

• Not New R Spec

• Collision Avoidance System

• Program Help

• Help

• 3D Animation

• Animation

• Y-Mode Touch Setter

• 3D Coordinate Conversion

• Hi-Speed Restart

• Sup VL Dip Reg

• Robot Dandori Display

• Cycle Mode Set

• Short Rapid Droop

• EES Motor

• Con Back Spindle

• Super Easy Set

• Tool Direction

• Tool Direction Compensation

• TCPC Machine Co

• TCPC Sub Spindle

• Super Prof Gene

• Rapid Feed Speed Set

• Work Weight Set

• C-Axis Manual Coordinate

• SDF Separate NC

• SDF Separate SP

• MFU

• Spindle Collision Detection

• Rotary Notch Fil

• Gather Aging

• Machine Diagnostics

• Eco Suite

• Eco Suite Plus

• OSP Suite

• Thermal Compensation OilCon

• Mac Time Short

• Spindle Out Monitor

• Suite Without Widget

• Remaining Time Display

• Chuck Grasp Confirmation

• Y-Axis Turning

• Easy Operation Panel

• Multi Operation Panel

• EOP Animation Scale-Up

• Base Zero Z V Measure

• Road TCP

• Adjustable Path Align

• Position Smoothing

• Coolant Level Check

• Safety Tape SW

• Chuck IL RLS

• 2 Chuck PDL 1SP

• 2 Chuck PDL 2SP

• Oil Cooler Alarm A

• Ex Brake Release

• Spindle Orientation Electric

• First Spindle Oil Cooler

• Second Spindle Oil Cooler

• Coolant Through Spindle

• M-Axis Orientation

• B-Axis Position LOMP

• ATC Type H

• Mechanical Lock Door 1

• Override Special

• Load Monitor

• Air Pressure Detection

• Program Stop Special

• Oil Level Detection

• Thru Airblow IL

• B-Panel

• OSP Chip Convere

• High Pressure Coolant Unit 3

• C-Axis Brake Torque Limiter

• Coolant L/M Change

• Touch Setter

• Touch Setter Motor

• Touch Sensor

• Optical Sensor

• Door IL S

• Auto Door

• DnC-B

• Chip Conveyor Check

• Portable PH

• B-Axis Turret

• Turret Type H1

• TR Pendulum Control

• B-Axis Interpolation

• Slant-Y Axis

• MG Door Mechanical Lock

• NC Turret with Brake

• New CEMK

• Thermal Oil Cooler

• EE Manual Change

• Armroid Client

• EES Type-B

• Armroid CO Hand

• First Spindle C Gain Cut

• Second Spindle C Gain Cut

• PH Type B

• Spindle Diagnostics

• Manufacture Date May 2022

• New Replacement Cost $731,151

• 4134 Power On Time

• 710 NC Running Time

• 149 Spindle Revolution Time

• 483 Cutting Time
