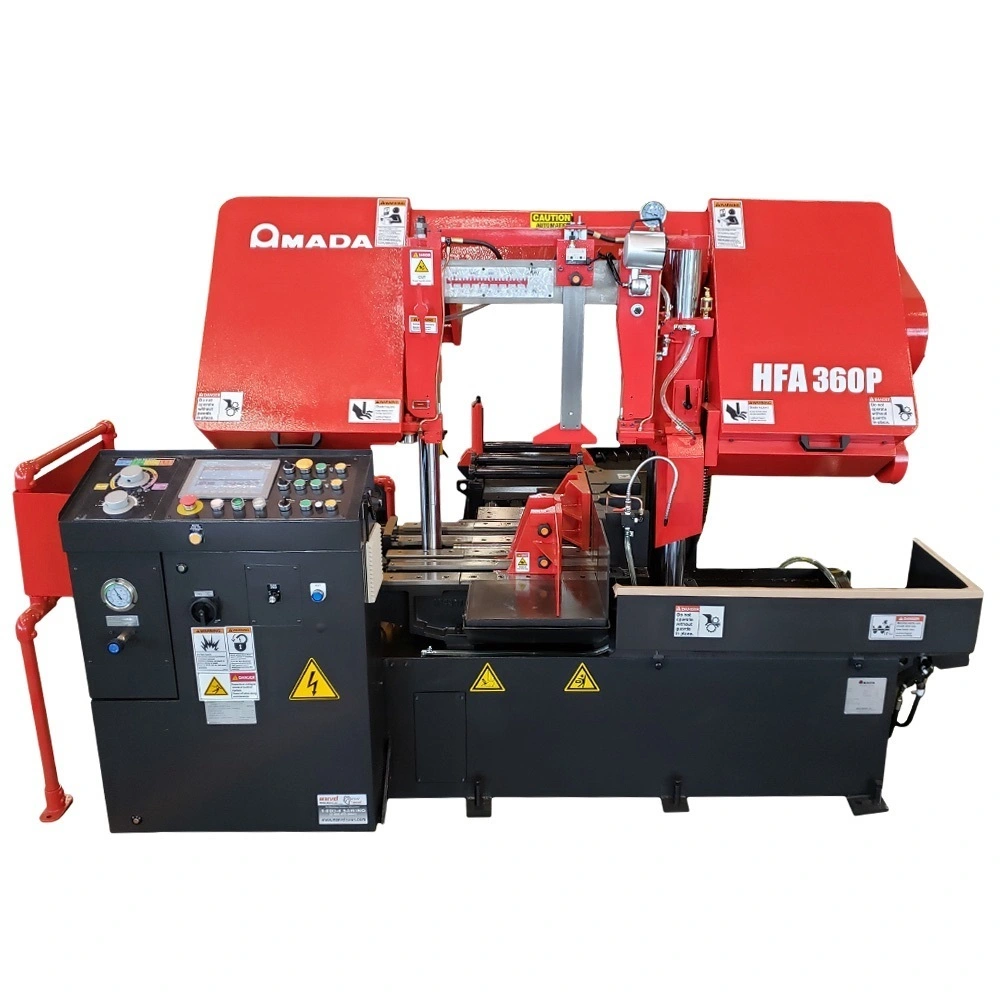

NEW AMADA HFA360P

The Vision of Precision

• Automatic
• Heavy-Duty
• High Speed
• Hydraulic
• 5 H.P.
• 1-1/4” Blade
• Programmable Control

FEATURES
• Split Front Vise
• HMI Touch Screen Control
• Automatic Chip Removal
• Bi-Directional Shuttle Vise
• Full Stroking Hydraulic Vises
• Robust Rigid Dual Column Design
• Fully Adjustable Hydraulic Down Feed
• Automatic Height Selection with Fast Approach

Cutting Capacity:
Round (Diameter) 14″ 360 mm
Rectangle (W x H) 14″ x 14″ 360 x 360 mm

Saw Blade:
Blade Size (L x T x W) 14’6″ x 0.042″ x 1-1/4″ 4420 x 1.1 x 34mm
Blade Speed 65 – 330 ft/min by Inverter 20-100 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Fast Approach Feeler
Cutting Control Hydraulic Pressure & Flow Control Valve

Vise Operation
Type Front and Rear Vises
Control Hydraulic Full stroke cylinder

Motors:
Saw Blade 5 HP 3.7 kW
Cutting Fluid Pump 0.25 HP 0.18 kW
Hydraulic Pump 2 HP 1.5 kW

Power Requirements
Power Supply Voltage AC230V +- 10% , 3PH, 60Hz, Required at factory voltage setting
Cutting Fluid Pump @@ kVA

Pressure Settings Hydraulic 427 PSI 3.0 MPa

Material Index:
Index Mechanism Shuttle Vise
Stroke 19.7″ 500 mm
Length 0.39″ – 999″ 10 – 25000 mm
# of Input Block 1-100
# of Input Station 1-20
# of Cut-Off Pieces 1-999
Remnant Length 2.75″ plus length of parts 70 mm plus length of parts

Fluid Capacities:
Coolant 26.4 gal 100 liters
Hydraulic Fluid 18.8 gal 71 liters

Machine Dimensions (W x L x H)
Head Up Position 93″ x 83.3″ x 68.7″ 2363 x 2115 x 1745 mm
Head Down Position 86.9″ x 81.3″ x 68.7″ 2207 x 2065 x 1745 mm

Chip Disposal Chip Conveyor

Table Height 26″ 663 mm

Machine Weight 4850 lbs 2200 kg
