Used Mueller 2,500 Liter (660 Gallon) 316L Sanitary Jacketed Reactor/Fermenter – 51.5 PSI / FV, Inconel Jacket

Used Mueller 2500 Liter (660 Gallon) Sanitary 316L Stainless Steel Reactor/Fermenter/Kettle. Internal Rated 51.5/Full Vacuum @ (-20)/ 300 degrees F. Jacket is Inconel 600 and Rated 150/Full Vacuum @ (-20)/ 300 degrees F. 24" top center manway in addition to other top openings. Has bottom mount for bottom mounted mixer (not installed). 2" Outlet with no valve. 90" OAH. Jacket has been Hydro-tested. National Board# 36308, Serial# 291636-2, built 2003. Last used in sanitary pharmaceutical facility.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Mueller

Equipment Type: Sanitary Reactor / Fermenter / Kettle

Capacity: 2,500 Liters (Approx. 660 Gallons)

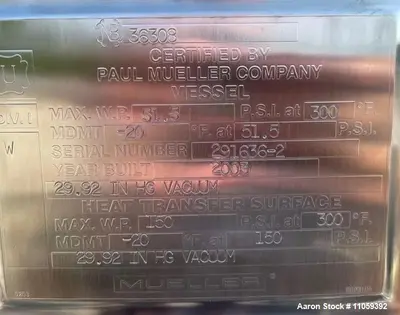

National Board #: 36308

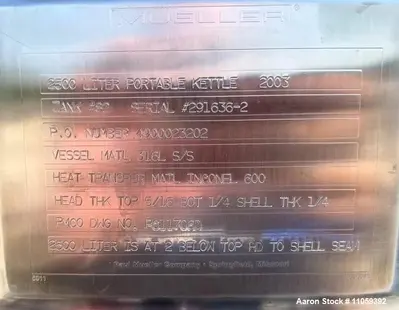

Serial #: 291636-2

Year Built: 2003

Previous Use: Sanitary Pharmaceutical Facility

Condition: Used

Description
This Used Mueller 2,500 Liter (660 Gallon) Sanitary 316L Stainless Steel Reactor/Fermenter/Kettle is a pressure-rated, pharmaceutical-grade vessel designed for high-purity processing applications.
The vessel is internally rated 51.5 PSI / Full Vacuum at -20°F to 300°F, allowing for both pressurized and vacuum operations. The Inconel 600 jacket is rated 150 PSI / Full Vacuum at -20°F to 300°F, offering exceptional corrosion resistance and thermal performance. The jacket has been hydro-tested, confirming structural integrity.
Features include:

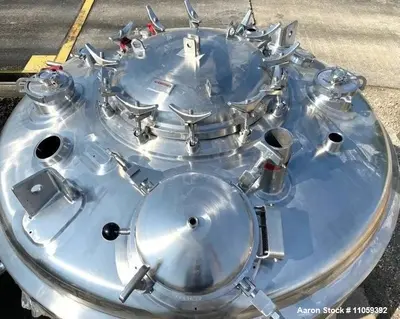

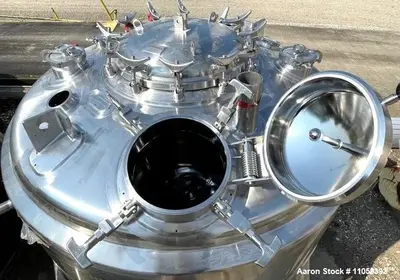

24" Top Center Manway

Additional top nozzles/openings

Bottom mount provision for mixer (not installed)

2" bottom outlet (no valve)

Approximate 90" overall height

Previously used in a sanitary pharmaceutical facility, this vessel is well suited for GMP-regulated manufacturing requiring premium metallurgy and pressure capability.

Specifications

Capacity: 2,500 Liters (Approx. 660 Gallons)

Construction: 316L Stainless Steel

Internal Rating:

51.5 PSI / Full Vacuum

-20°F to 300°F

Jacket Material: Inconel 600

Jacket Rating:

150 PSI / Full Vacuum

-20°F to 300°F

Manway: 24" Top Center

Agitation: Bottom mount provision (no mixer installed)

Bottom Outlet: 2" (no valve)

Overall Height: Approx. 90"

Jacket: Hydro-tested

National Board #: 36308

Serial #: 291636-2

Year Built: 2003

Applications

Pharmaceutical batch processing

Biotech fermentation

Sterile blending

High-purity chemical reactions

Temperature-controlled processing

What Might This Be Used For
This sanitary jacketed reactor is typically used for controlled reactions, fermentation, blending, and heating or cooling of high-purity liquids under pressure or vacuum conditions, especially in regulated pharmaceutical environments.

Products This Equipment Is Used For

Active pharmaceutical ingredients (APIs)

Sterile intermediates

Biopharmaceutical cultures

Nutraceutical products

Specialty chemical formulations

Enzyme production

Cosmetic emulsions

High-purity liquid compounds

Research batches

Pilot-scale pharmaceutical products
