X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Memory‑Lock Key
Power‑Failure Protection

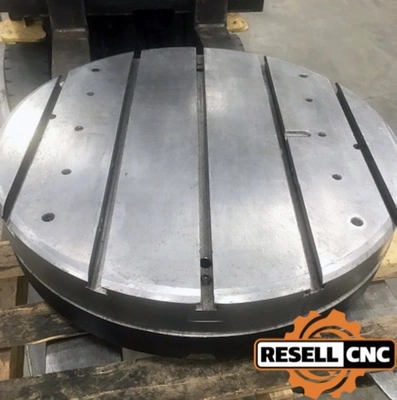

Additional Machine Specs: Integrated Rotary Platter: 30-in diameter, full 360° indexing, 10000 lb capacity
Auxiliary Systems Included: Enclosure, coolant system
30" x 8" Platter Riser
B Axis: false
C Axis: false
Chip Removal: Chip Auger
Chip To Chip Time: 12.6

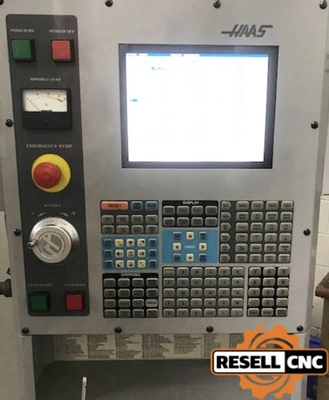

Control Make Model: Haas CNC Control
Control Options: Color Monitor, Remote Jog Handle, Rigid Tapping, USB
Coolant Type S: Thru-Spindle Coolant
Cutting Feed Rate: 500
Horizontal Table Pallet Size In MM: 762.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Worklight
Max Table Pallet Load: 10000.0
Max Tool Diameter: 4.0
Max Tool Diameter Adjacent: 10.0
Max Tool Length: 20.0
Max Tool Weight: 30.0
Number Of Pallets: 2.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Rapid Traverse: 600
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 30
Spindle Speed: 6000.0
Spindle Taper Type: CAT#50
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 8
Tool Magazine Capacity: 30.1
Twin Turret: false
X Travel: 64.0
Y Axis: false
Y Travel: 50.0
Z Travel: 32.0
