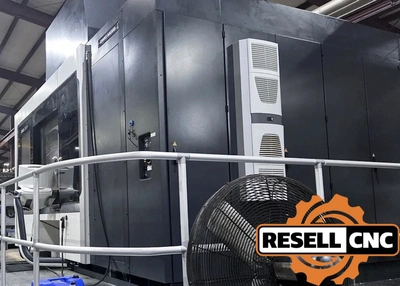

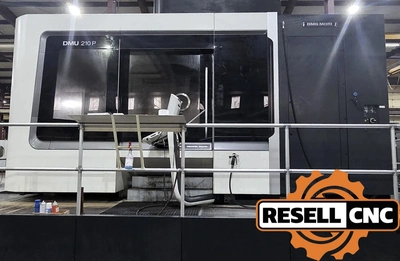

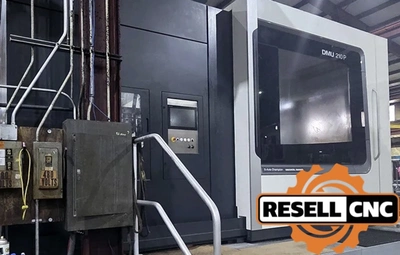

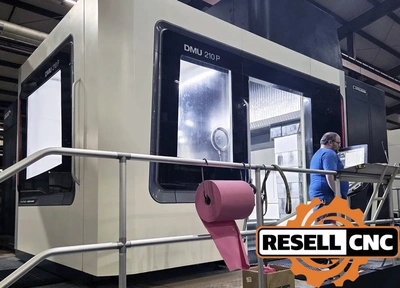

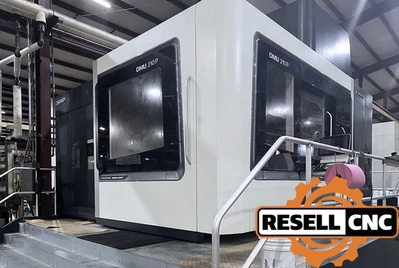

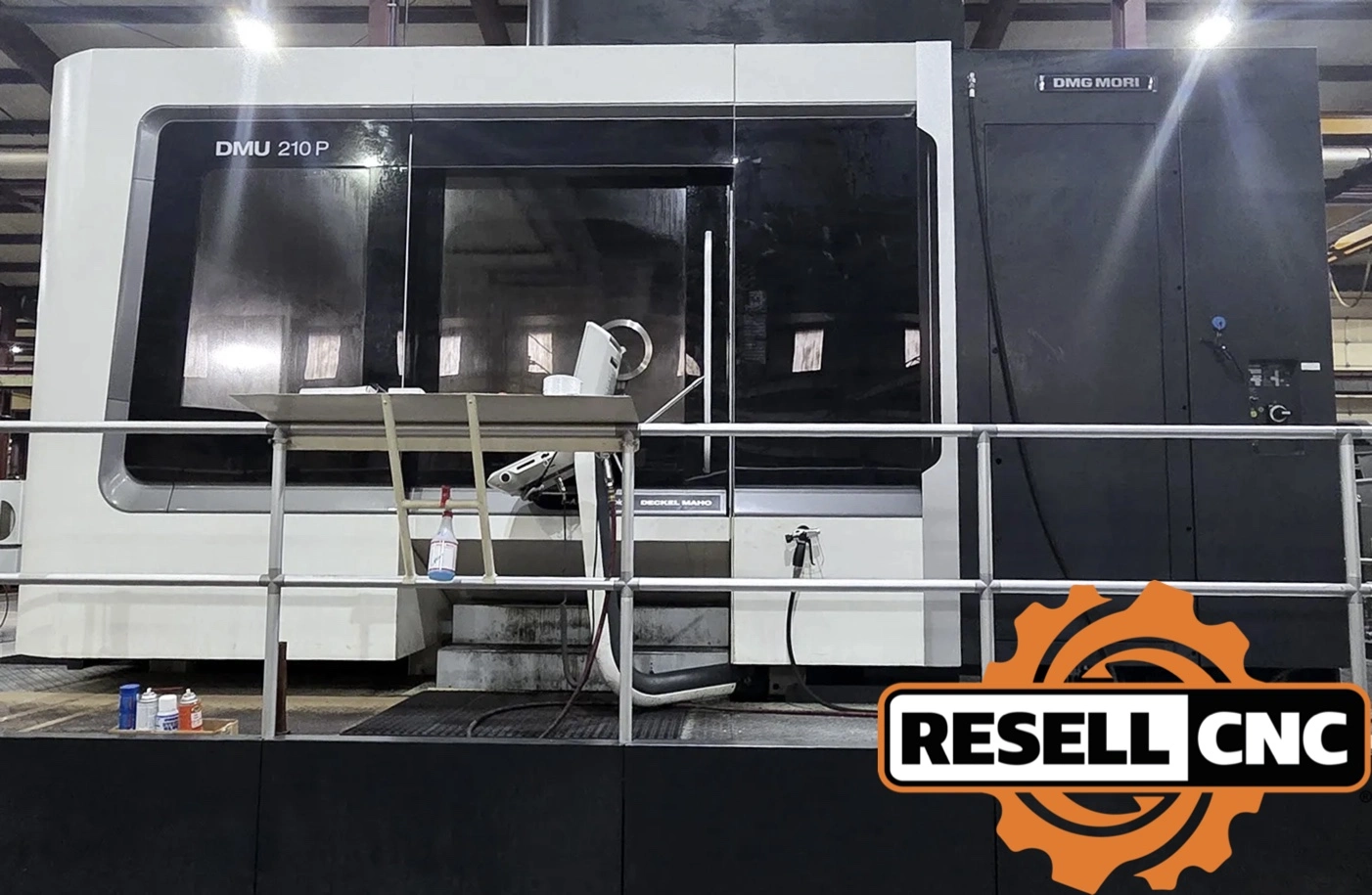

USED 2020 DMG Mori DMU-210P

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: CELOS

3D QuickSET

MDynamics Package

Increased Accuracy

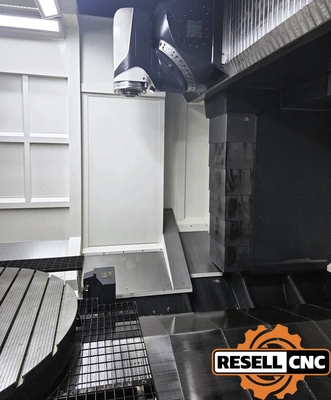

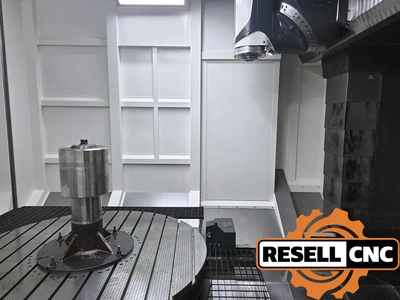

Additional Machine Specs: B-Axis Swivel Milling Head: -30 Deg To + 180 Deg

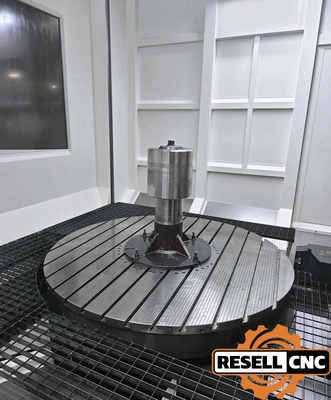

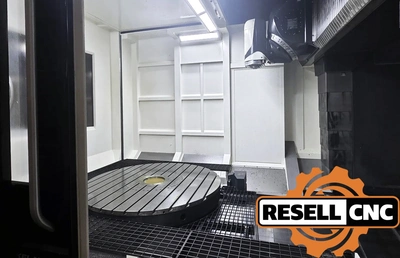

C-Axis Rotary Table Travel: 360,000 Deg

Max Work Piece Diameter: 98.4"

Max Work Piece Height: 49.2"

Cooling Air Blast

Taper Cleaning Brushes

Interface for Oil and Emulsion Mist Separator

Mist Separator

Blum Laser

Coolant Tempering for 980 / 1300 l Units

Infrared Measuring Probe Renishaw SK 50

Set of 5 Lubricants

Electrical Cabin Content Follows CSA / UL Spec

Tropical Package (Ambient Temp. max. 50 °C)

P-D1-GB Documentation 1 (English)

P-D2-GB Documentation 2 (English)

P-EP-GB Electric Circuit Diagram (English)

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

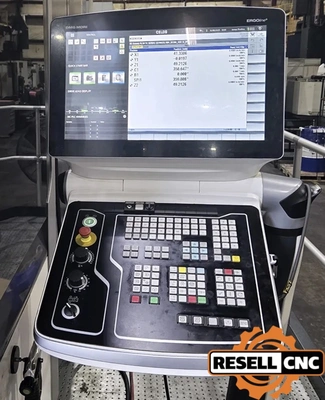

Control Make Model: Siemens 840D SL CNC Control
Control Options: Early Power Failure Detection, Inch/Metric Conversion
Coolant Psi: 1000.0
Coolant Type S: Thru-Spindle Coolant
Electrical: 480V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 17637.0
Number Of Pallets: 1.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 69.7
Spindle Speed: 16000.0
Spindle Taper Other: HSK-100A
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 127.0
Twin Turret: false
Vertical Table Pallet Size: 66" x 66
X Travel: 70.9
Y Axis: false
Y Travel: 82.7
Z Travel: 49.2
