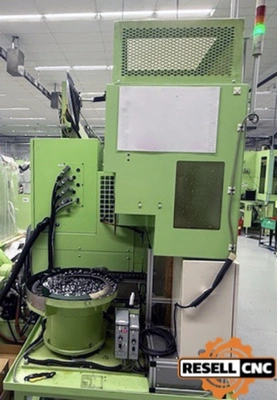

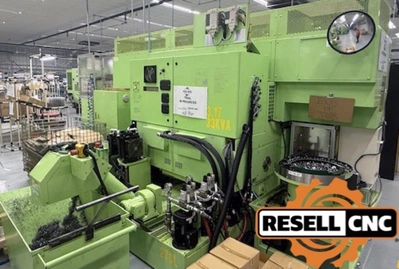

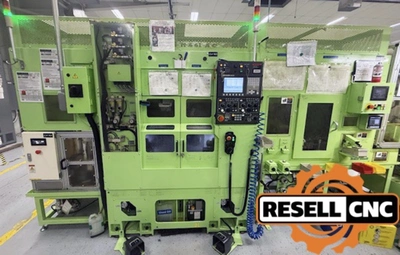

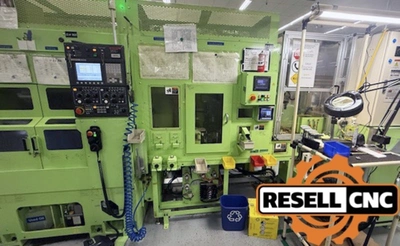

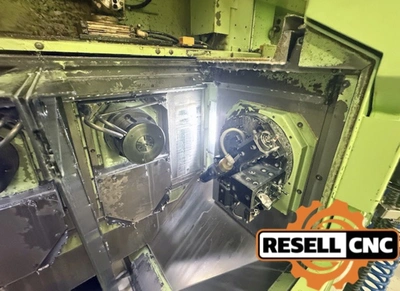

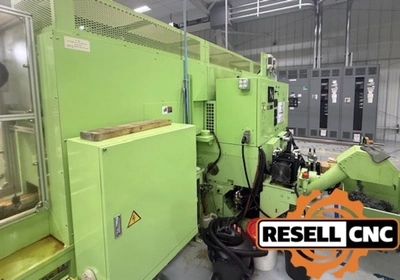

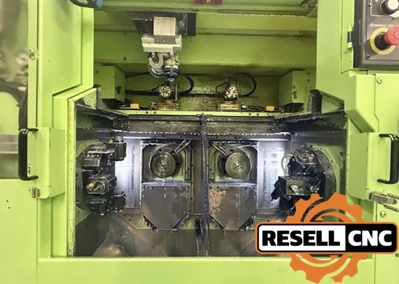

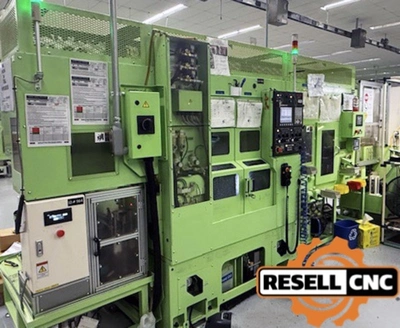

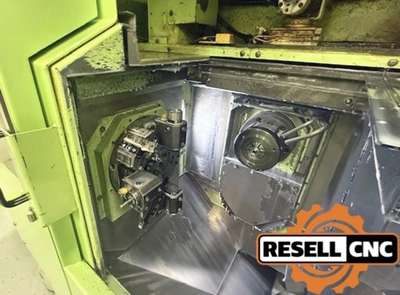

USED 2019 DMG Mori AA-1 Twin Turret

X2nd Chuck Description: RIKEN SAD40 + NIKKO Hydraulic Hollow Cylinder 25FR

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: X-Axis Direction (JIS/ISO Selectable)

Optional Program Protection (w/ Password)

RS232C Interface

Pitch Error Compensation

Built-in Worklight Switch

Tool Interference Sensors

Reverse Hand Loading

Out-of-Position Detection

Ladder Logic Customizations

Auto Power Off

Air Pressure & Hydraulic Pressure Detection

Lubrication Detection

Vibration Detection

Tool Life Notification

Tool Offset Recall

SOL Relocation

Safety Features: Door Interlock, Safety Switch, Emergency Stop

Additional Machine Specs: Spindles: Parallel 2 spindles, 2 turrets

Turning Capacity: Ø 65 mm diameter x 50 mm length

Indexing Time: 1.0 sec/station (approx.)

Coolant Tank Capacity: 200L

Chip Bucket: Includes Chip Cart w/ Caster

Water-Soluble Coolant

Coolant Tank w/ Separate Mounting

Coolant Through Turret

Through-Spindle Air Blow for Spindle #1 & #2

Tool Holders (SHB-E2516, SHB-E2520, SHB-E2260, SHB-E2281)

Rotary Tool Holders

Turret-Mounted Rotary Tool Spindle

SR-0 Hand

Load/Unload Functions

Load Hand Checking

Proximity Sensors

Material Handling Enhancements

Hydraulic Pump Unit

Various Displays (Weight, Electric Capacity, Etc.)

User’s Manual Included

Mist and Coolant Duct Kits

Setup Confirmation Switch

Electrical Connection Diagrams, Control Manuals, Accuracy Test Results

Custom Specifications for EOD Training and Applications

Bar Capacity: 2.56
B Axis: false
C Axis: true
Chuck Description: RIKEN SAD40 + NIKKO Hydraulic Hollow Cylinder 25FR

Chuck Type: Hydraulic
Control Make Model: Fanuc 0i-TF CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 2.0
Live Milling Hp: 2.95
Live Milling Max Rpm: 10000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Mist Collector
Max Cutting Turning Diameter: 3.94
Max Swing Over Bed: 4.0
Max Turning Cutting Length: 2.0
Programmable Tailstock: false
Second Spindle Motor: 10
Second Spindle Speed: 6000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 10
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 8.0
Total Spindles: 2
Twin Turret: true
X Travel: 6.0
Y Axis: true
Z Travel: 7.0
