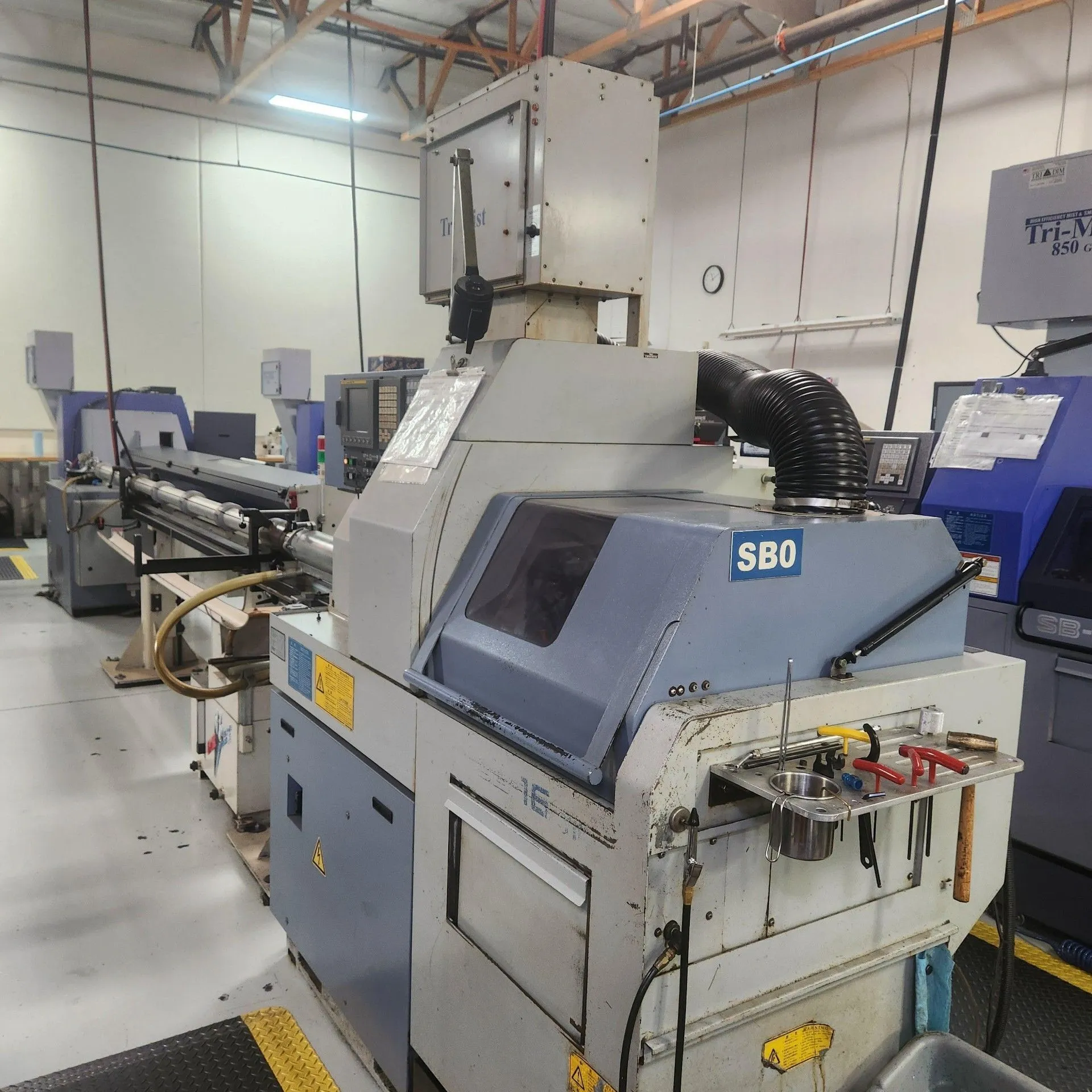

Star SB-16D CNC Swiss Lathe, New in 2007
| Capacity | 16 mm | 0.6299" |
| Power | 4.9 kW | 6.6 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # Axis | 5 | 5 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Main Spindle Indexing | 15 Degree | 15 Degree |
| Live Back Working Tools | Yes | Yes |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 73" x 42" x 69" | 73" x 42" x 69" |
| Weight | 3,750 lbs | 3,750 lbs |
General Specifications:
Machining Diameter: 5/8"
Headstock Stroke
-Stationary GB: 8"
-Revolving GB: 6-3/32"
Total Tools: 6
4-Spindle Sleeve Holder
-Number of Tools (Front/Back): 4/2
-Drilling Capacity: 25/64"
-Tapping Capacity: M5 x PO.8
Power Driven Attachment
-Number of Tools: 2
-Drilling Capacity: 15/64"
-Tapping Capacity: M5 x PO.8
Main Spindle Speed: 10,000 RPM
Main Spindle Motor: 4.9 HP
Rapid Feedrate (X, Y, Z, XB, ZB): 1377 IPM
Indexing Angle: 15 Degrees
Live Tool Speed: 7,500 RPM
Live Tool Motor: 0.5 HP
Machine Dimensions: 73" x 42" x 69"
Machine Weight: 3,750 lbs
Fanuc 18i-TB CNC Control
LNS 3.20-HS-4.8 Super Hydrobar Barfeed
Tri-Mist Mist Collector
High Pressure Coolant
*Spindle and guide bushing housing bearings replaced*
