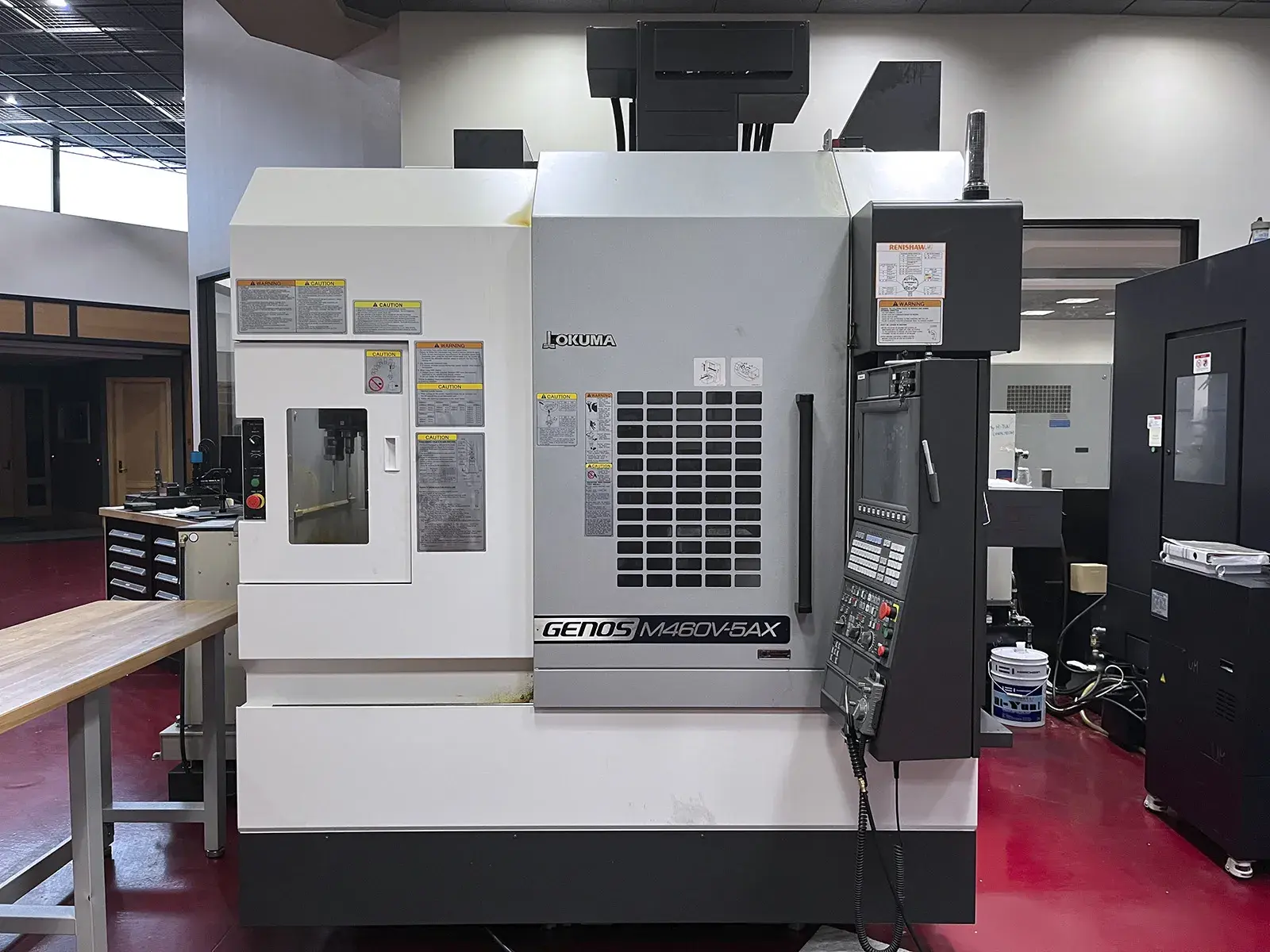

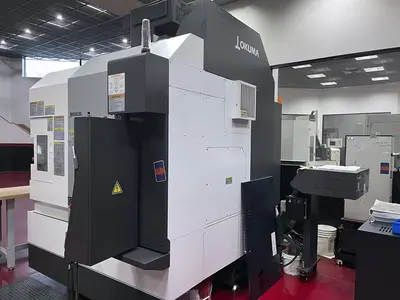

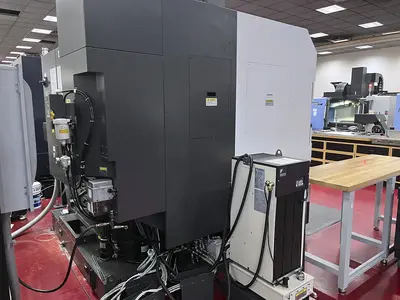

USED 2021 OKUMA Genos M460V-5AX
Overview
Description
Used 2021 Okuma Genos M460V-5AX 5-axis machining center with OSP control. Designed for complex simultaneous milling, it delivers high accuracy, thermal stability, and heavy-cutting performance for aerospace, automotive, and die/mold applications.
Specifications
| X-Axis | 30" | 762 mm |
|---|---|---|
| Y-Axis | 18.11" | 459.99 mm |
| Z-Axis | 18.11" | 459.99 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 48 | 48 |
| Taper | CAT40, Big Plus | CAT40, Big Plus |
X-Axis Travel: 30"
Y-Axis Travel: 18.11"
Z-Axis Travel: 18.11"

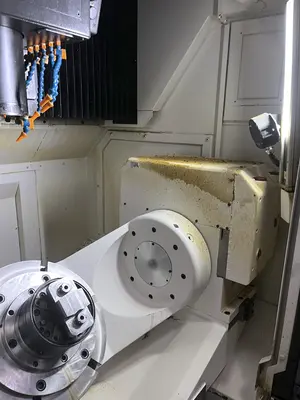

A-Axis Travel: 20 to -110 degrees
C-Axis Travel: 360 degrees
Table surface to spindle nose: 3.94" to 22.05"
Table Size: 15.75"
Max Work Size: 23.62" (Diameter) X 15.75" (Height)
Floor to Table Top: 41.34"
Max Load Capacity: 660 lbs
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40 Big plus
Rapid Traverse X,Y: 1575 ipm
Rapid Traverse Z: 1260 ipm
Cutting Feedrate: 1260 ipm
Spindle Motor: 30/25 HP
ATC Capacity: 32
Equipped With
Simultaneous 5 Axis Capability
Spindle Chiller
Coolant Thru Spindle (300 PSI)
CAT 40 Big Plus Tool Shank
Chip Conveyor
Renishaw RMP60 probing system
