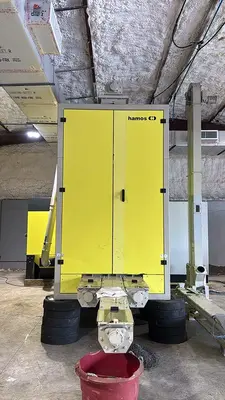

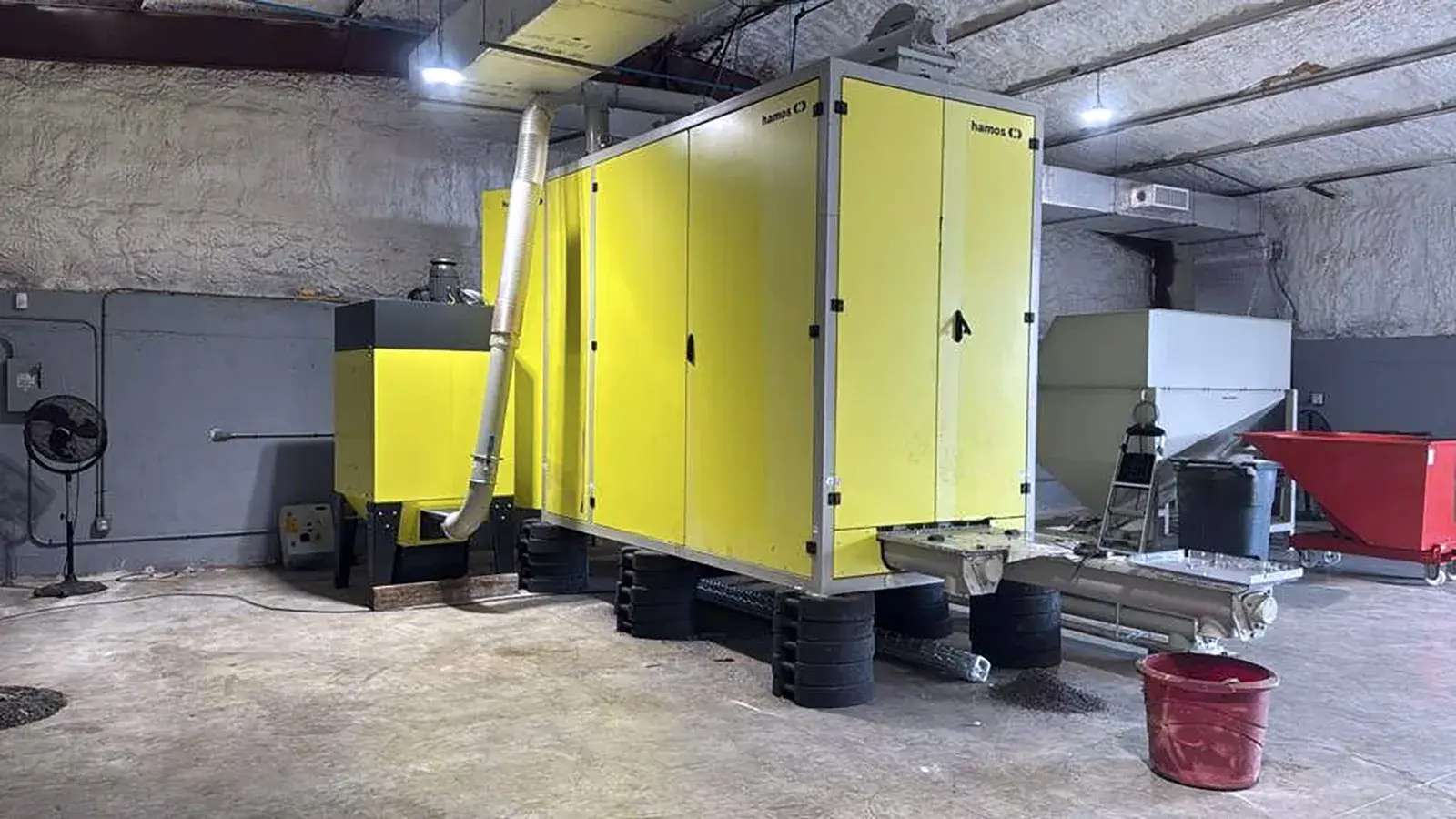

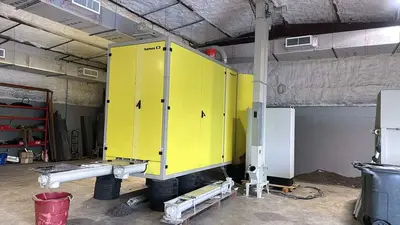

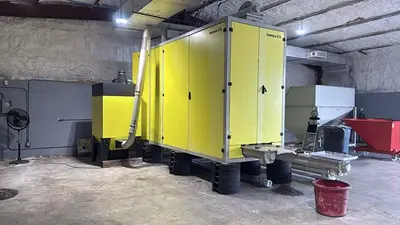

The 2024 Hamos KWS 2522-2 Corona Electrostatic Separator is a complete recovery line with silo, elevator, and dust extraction system, designed for high-efficiency cable recycling operations. Installed after densimetric separation, it recovers the final 1–5% of residual metals—such as copper—from plastic mixtures. An ideal upgrade for cable chopping plants, increasing metal yield, improving material purity, and maximizing recycling profitability.
Throughput: Approx. 1.3 metric tons/hour
Input size: 0.08–0.4 in (2–10 mm) granulate
Separation voltage: 15,000–30,000 V
Separation efficiency: 95–98% (material‑dependent)
Inlet silo, 100 ft³ capacity:
Electrical Requirements: 400V, 3 Phase
Assembled footprint (L × W × H): 23 ft × 27 ft × 16.5 ft
Total Weight: 13,227 lbs
Touchscreen HMI control panel with real‑time monitoring and parameter adjustment
100 ft³ inlet storage silo

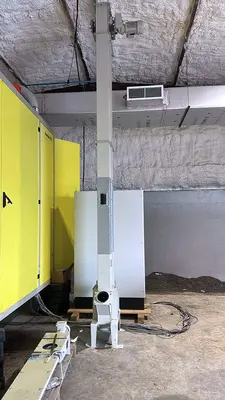

Bucket elevator for continuous feed loading
Primary feed transport screw from elevator to separator
Corona charging system (15
000–30
000 V)

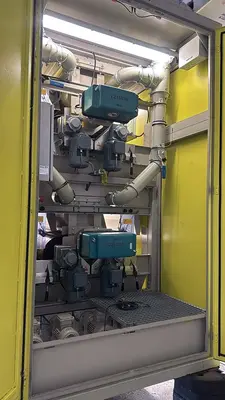

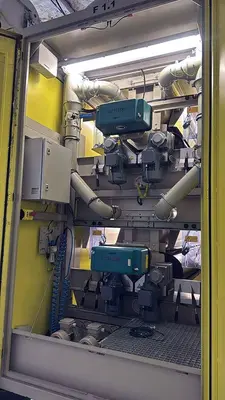

4 rotating separation drums
Adjustable electrode system
Integrated material distribution system
Three discharge transport screws for plastics - metals - and mixed residuals
Dust Extraction System
Full perimeter access doors for maintenance and cleaning
Complete wiring
interconnects
and safety interlocks
Steel support frame and platforms for the entire line Application: Cable recycling - Separation of metals inside plastic mixtures
