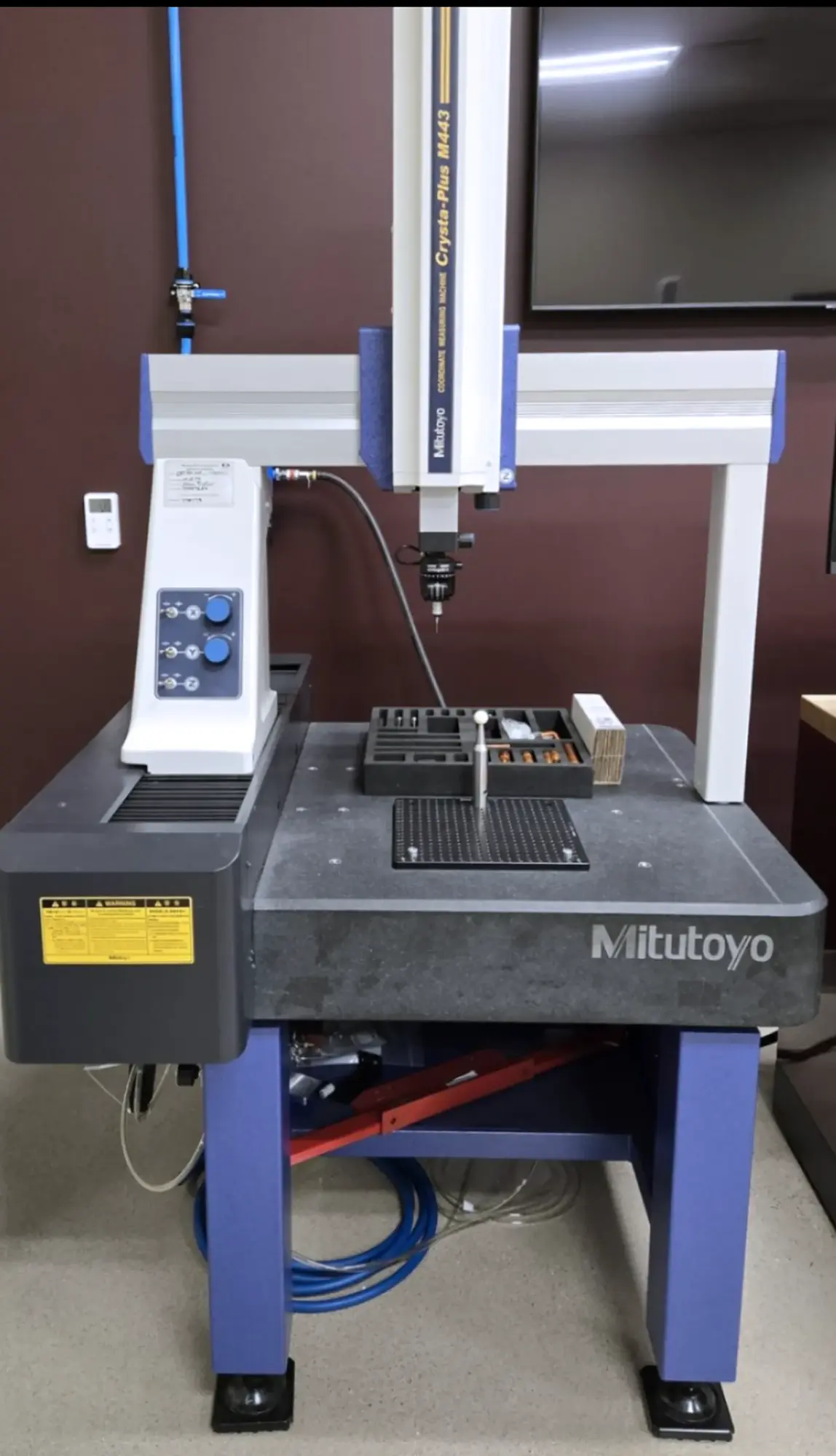

USED 2014 Mitutoyo Crysta-Plus M443

X Axis: 15.75” (400 mm)
Y Axis: 15.75” (400 mm)
Z axis: 11.81” (300 mm)
Max. Workpiece Height: 18.9” (480 mm)
Environmental temperature: 20 °C ±1 °C
Width: 38.62” (981 mm)
Depth: 41.22” (1047 mm)
Height: 77.44” (1967 mm)
Max. table loading: 396 Ibs (180 kg)
Workpiece Clamping: No. of M8 x 1.25” Threaded Holes 13
Resolution Length measuring system: .00002” (0.5µm)
Material Granite Dimensions: 33.07” x 51.97” (624 x 805mm)
Air supply Consumption/air pressure: ca. 50 l/min at 0.35 MPa
Mass (with supporting table): 904 Ibs (410kg)
Air bearing: Guidance Air bearings on all axes

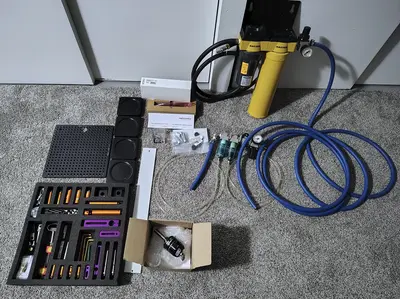

MH20i Probing System
TP20 Touch Trigger
Includes Calibration Sphere
Small Fixture Kit
Shipping Brackets
Single Phase
