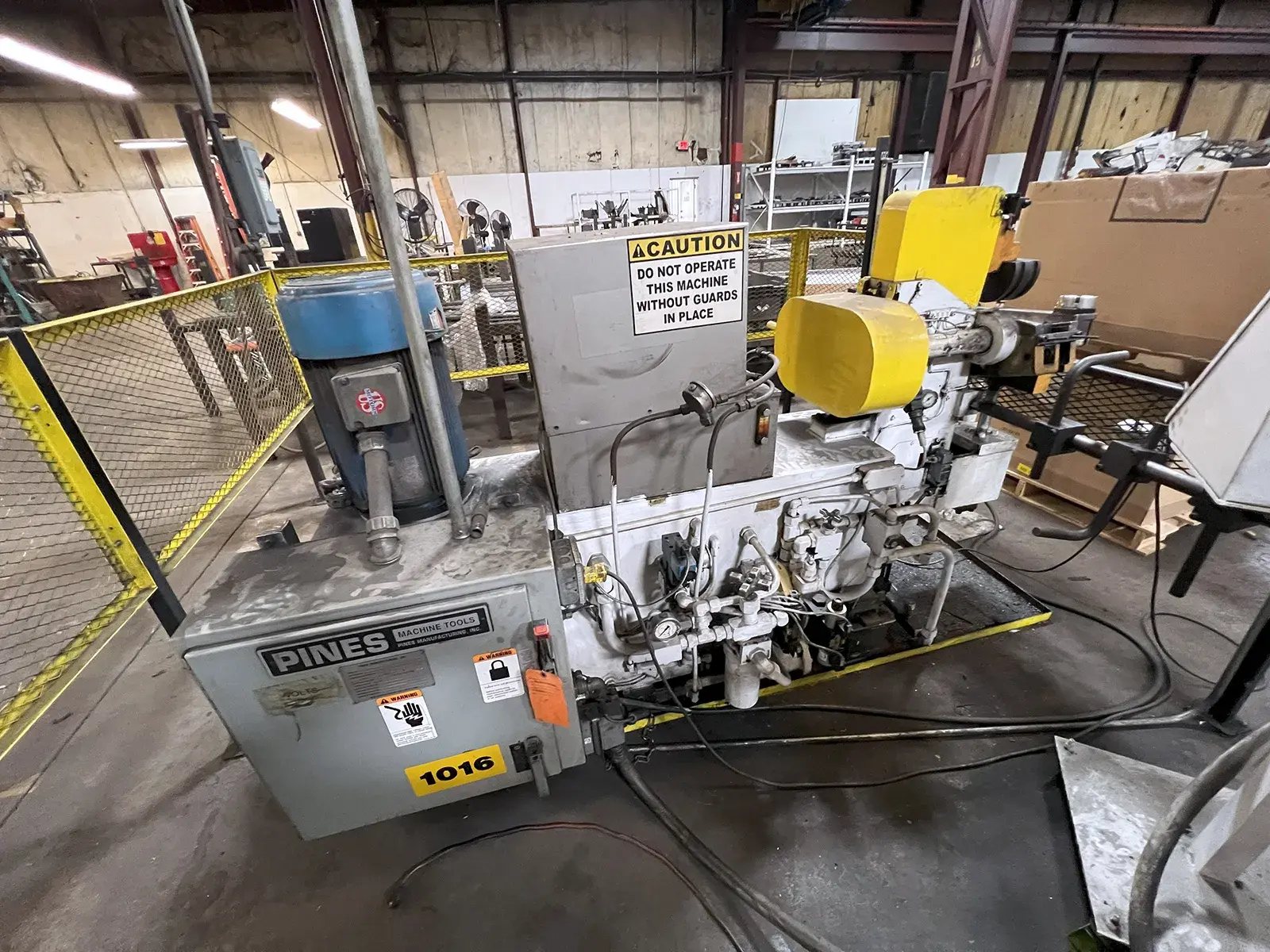

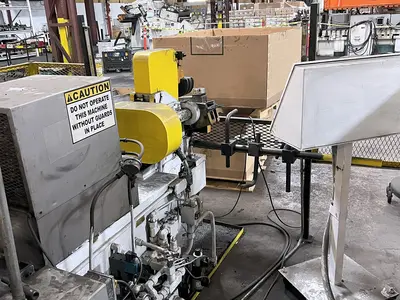

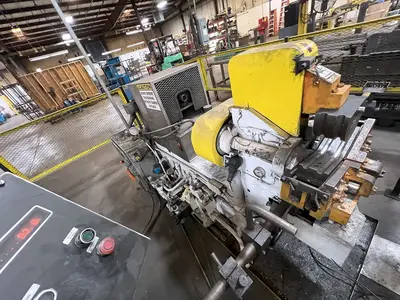

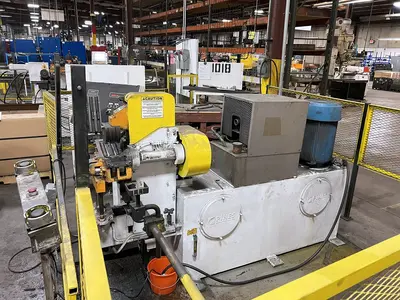

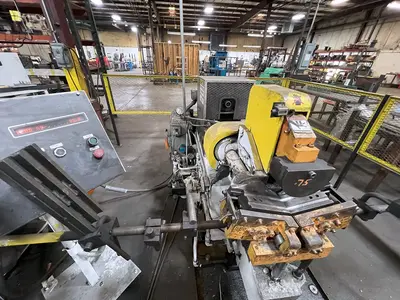

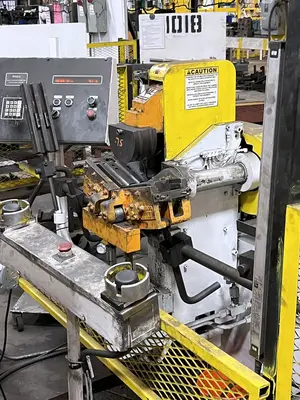

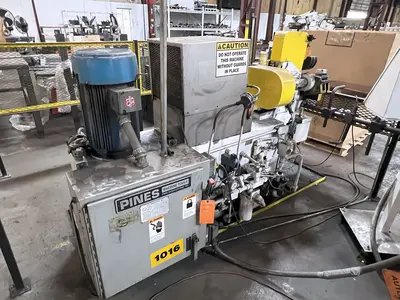

USED 1995 Pines 3T
Overview
Specifications
| Capacity | 1.25" | 31.75 mm |
|---|
Round Tubing Mild Steel: Y.P. to 40,000 psi – 1.25” x .065
Round Tubing Non-ferrous: Y.P. to 25,000 psi – 1.25” x .083
Round Tubing Stainless Steel: Y.P. to 60,000 psi – 1.25” x .049
Square Tubing Mild Steel: 1” x .065
Round Bar Mild Steel: ¾”
Square Bar Mild Steel: 9/16”
Bending: Bends one tube at a time
Production Capacity: Bends per hour approximate – 1,000 strokes (bends)
Maximum Bend Angle: 140º
Approximate Weight: 4,600 lbs
Overall Height: 60 inches
Weight: 2,900 lbs
Maximum standard radius for 90° bend: 4.5”
Minimum radius to diameter ratio: 2 to 3
Maximum bend angle with special tooling: 165°
Bend arm repeatability: ± ¼°
Motor horsepower: 20HP
Working height to dies: 40 inches
Footprint (floor space required): 30 x 80 inches
Steel tube capacity: 1.25" x .065" wall
Pines Model: 3T vertical hydraulic
Maximum section modulus, mild steel: .072
Equipped With

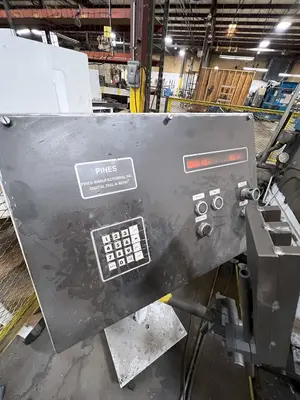

dial -a - bend programable control electrical controls hydraulic system
