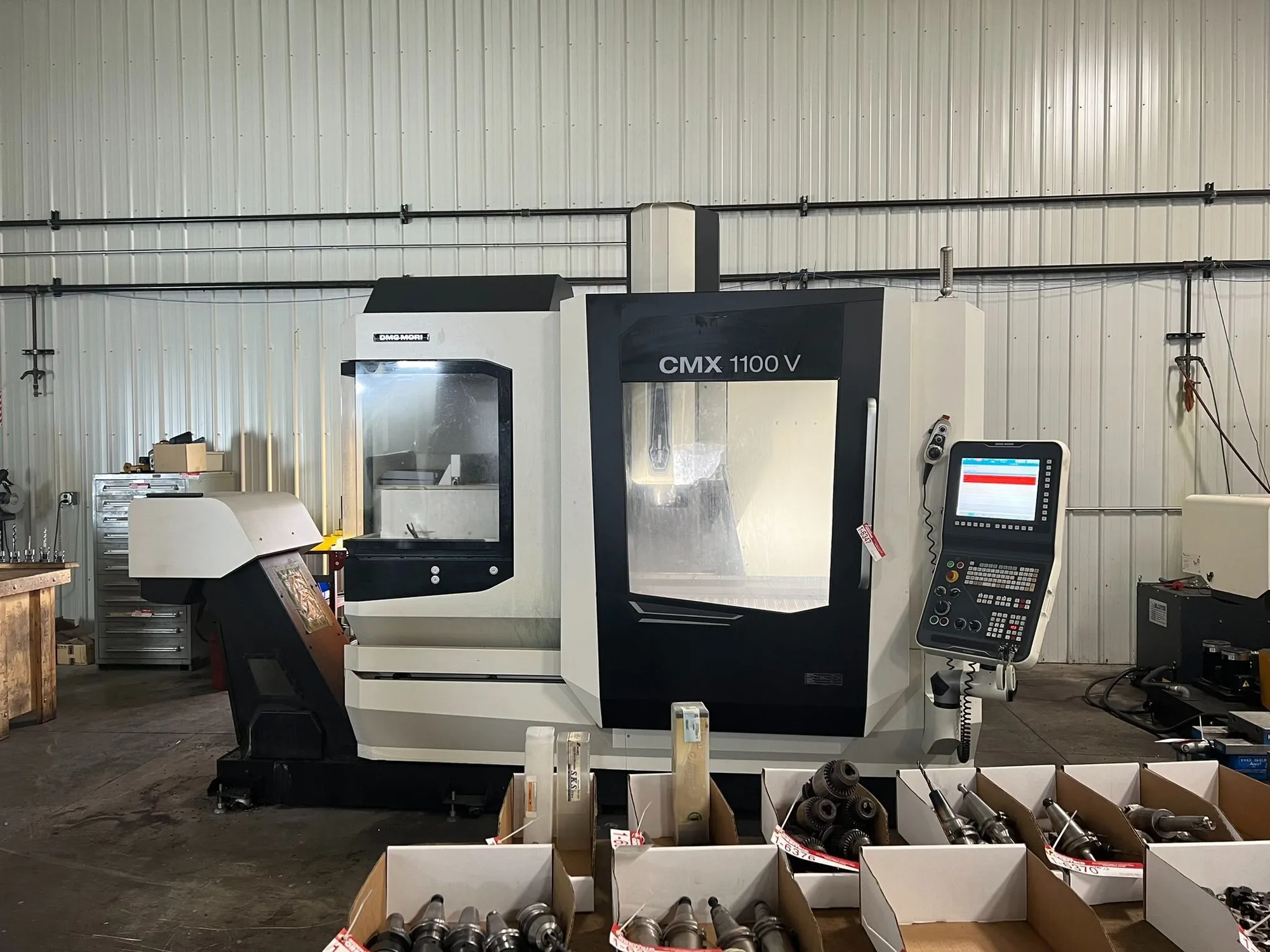

2018 DMG Mori CMX 1100V CNC Vertical Machining Center
43" x 22" x 20", 15K RPM, Table Probe, Cooljet High PSI Coolant
| X-Axis | 43.3" | 1,099.8 mm |
| Y-Axis | 22" | 558.8 mm |
| Z-Axis | 20.1" | 510.54 mm |
| Power | 21 hp | 15.7 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT40 | BT40 |
| Table-W | 22" | 558.8 mm |
| Table-L | 55.1" | 1,399.5 mm |
| # Axis | 3 | 3 |
DMG Mori CMX 1100V CNC Vertical Machining Center
New: 2018
Specifications:
Travels:
X-Axis: 43.3"
Y-Axis: 22.0"
Z-Axis: 20.1"
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Tool Changer: 30 ATC
Max Workpiece L: 55.1"
Max Workpiece W: 22.0"
Max Workpiece H: 24.8"
Max Workpiece Wgt: 2204.6lbs
Equipped With:
DMG Mori Slimline Control
Chip Conveyor
Cooljet 1000PSI Coolant Unit
6418 Cutting Hours
