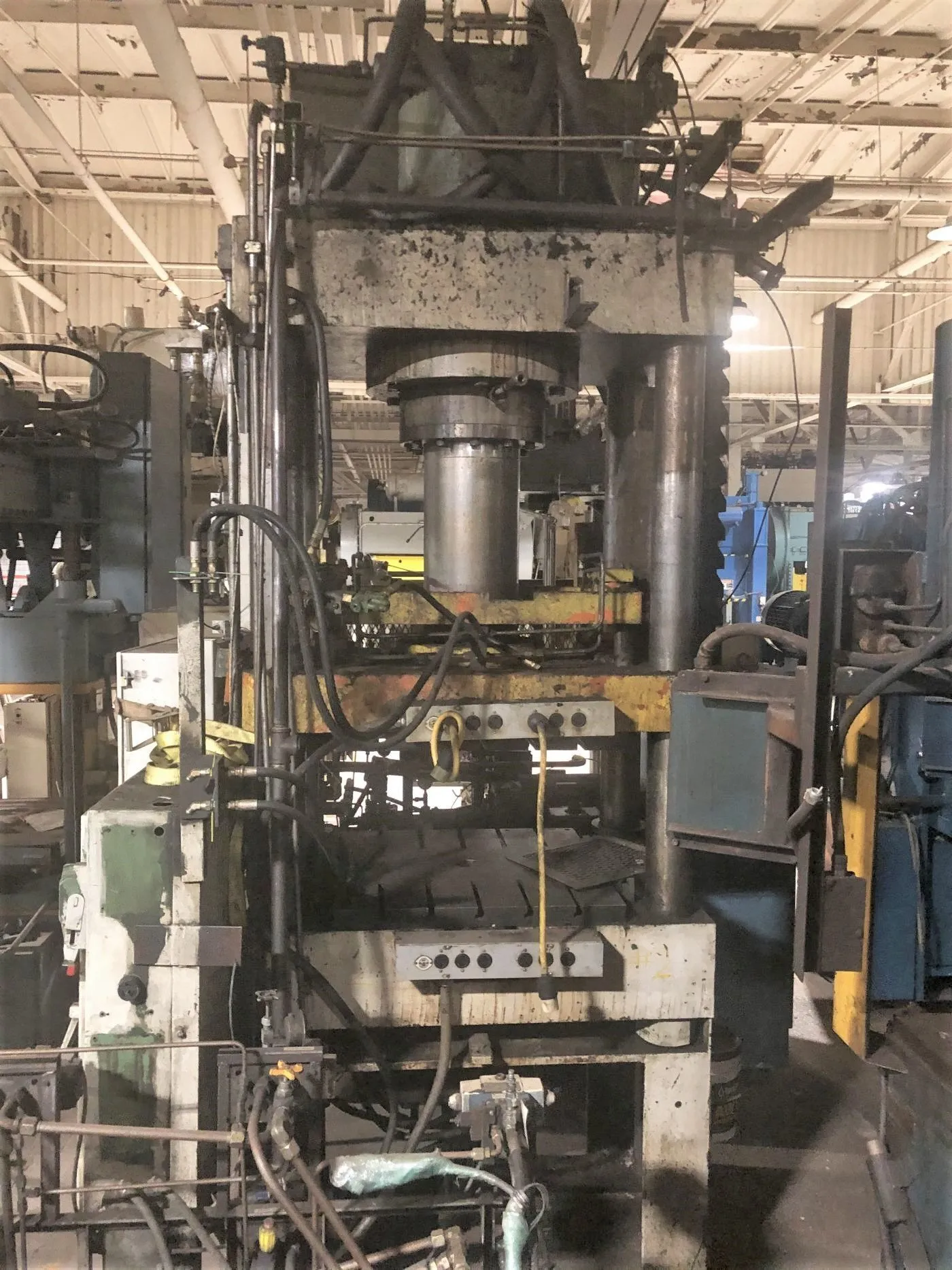

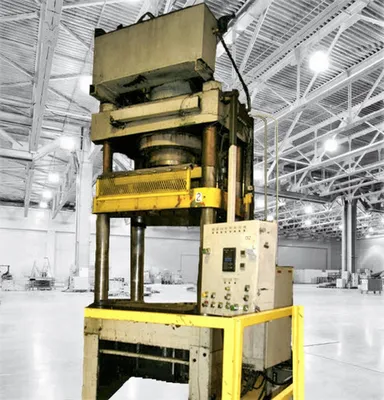

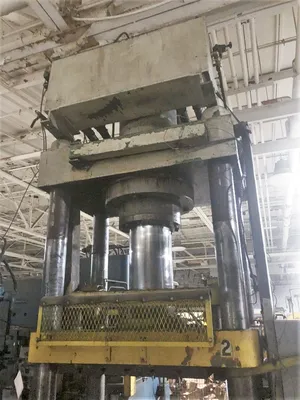

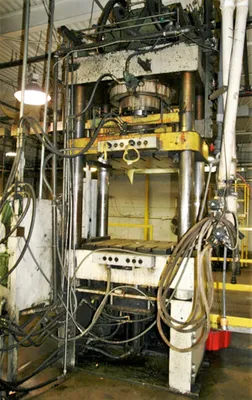

220 Ton Rodgers, 4 Post, 18-24" Stroke, 48" DL, 58"X36" OA Bed, Bottom Transfer Cylinder (12" Str), Mold Heaters, 2 Identical Presses Available
| Tonnage | 220 TON @ 1700 PSI | 199.581 t |
| Design | 4 Post | 4 Post |
| Up or Downstroke? | Downstroke | Downstroke |
| Stroke | 24" | 609.6 mm |
| Daylight | 48" | 1,219.2 mm |
| Bed (L-R) | 42" | 1,066.8 mm |
| Bed (F-B) | 36" | 914.4 mm |
CAPACITY 220 TON @ 1700 PSI
MAX. STROKE APPROX. 18"-24"
MAX. DAYLIGHT TO BED 48" - (43.5" BETWEEN BOLSTERS)

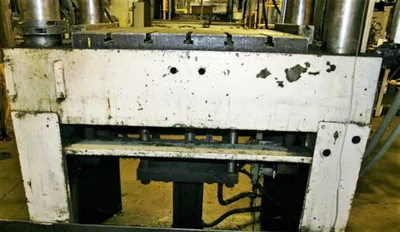

OVERALL BED & RAM AREA 58" X 36" (RL X FB) WITH 3-1/2" HOLE IN BED
DISTANCE BETWEEN POSTS 42" X 21" (RL X FB)
BOLSTER PLATE SIZES (2) 36" X 35" (RL X FB) X 2.25" THICK
USABLE BED AREA 42" X 36" (RL X FB)
FLOOR TO BED 51.5"
POST SIZE 6" DIA.
CYLINDER SIZE APPROX. 18" DIA. BORE

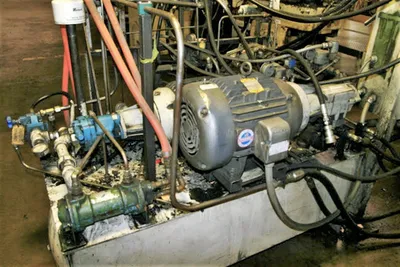

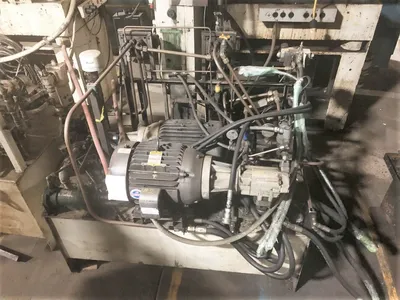

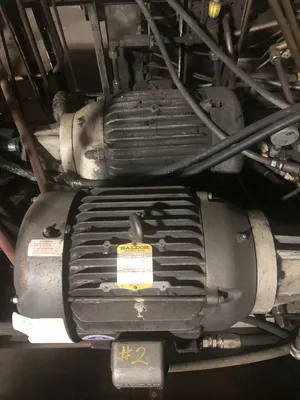

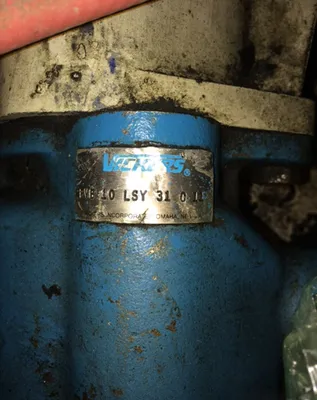

HYDRAULICS (FLOOR MOUNTED) 20 HP, 230/460 V MOTOR-VICKERS PISTON PUMP NO. PVB10LSY31011, 15 GPM

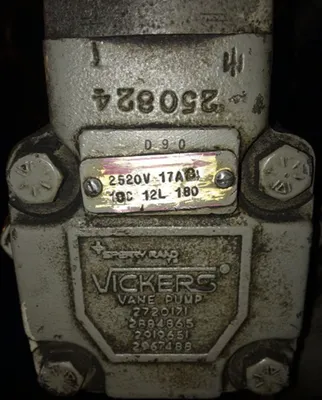

-- VICKERS DOUBLE VANE PUMP NO. 2520V17AB, 10C12L180

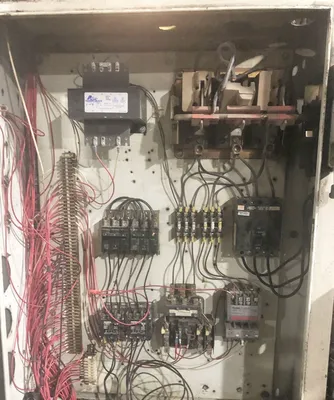

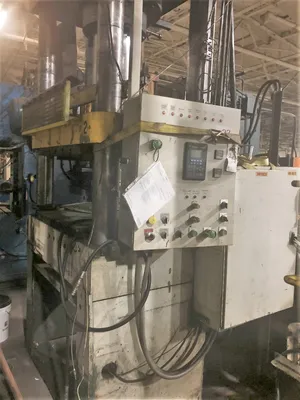

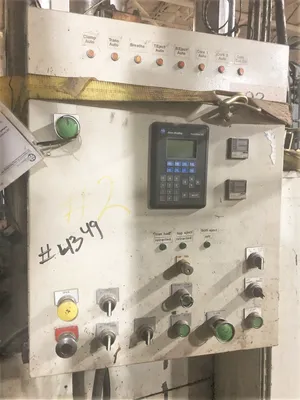

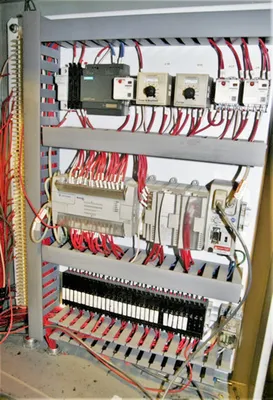

PRESS CONTROLS *AB "MICROLOGIX" 1200 PLC CONTROLLER AB PANELVIEW "300" Touch Screen

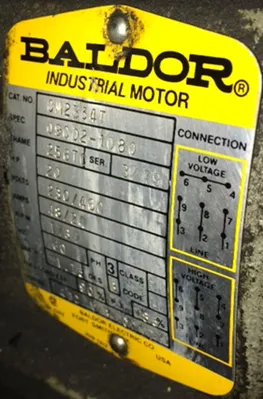

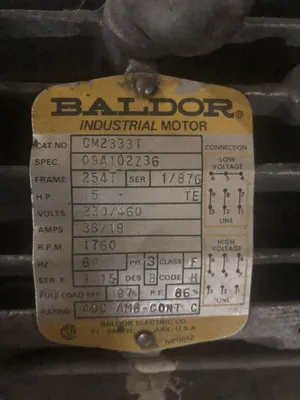

ELECTRICS 15 HP, 230/460 V MOTOR
APPROX. DIMENSIONS 14' HIGH, 7' RL, 6' FB
APPROX. WEIGHT 40,000 LBS.

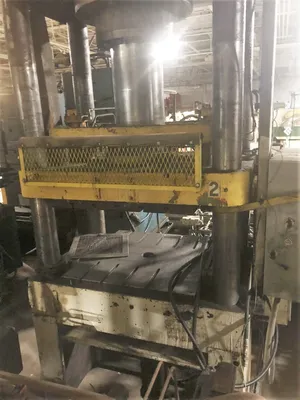

Equipped With SAFETY LATCH ON RAM FLOOR STANDING *BOTTOM TRANSFER CYLINDER-12" STROKE **TOP & BOTTOM EJECTORS ***WITH MOLD HEATERS TOP & BOTTOM
