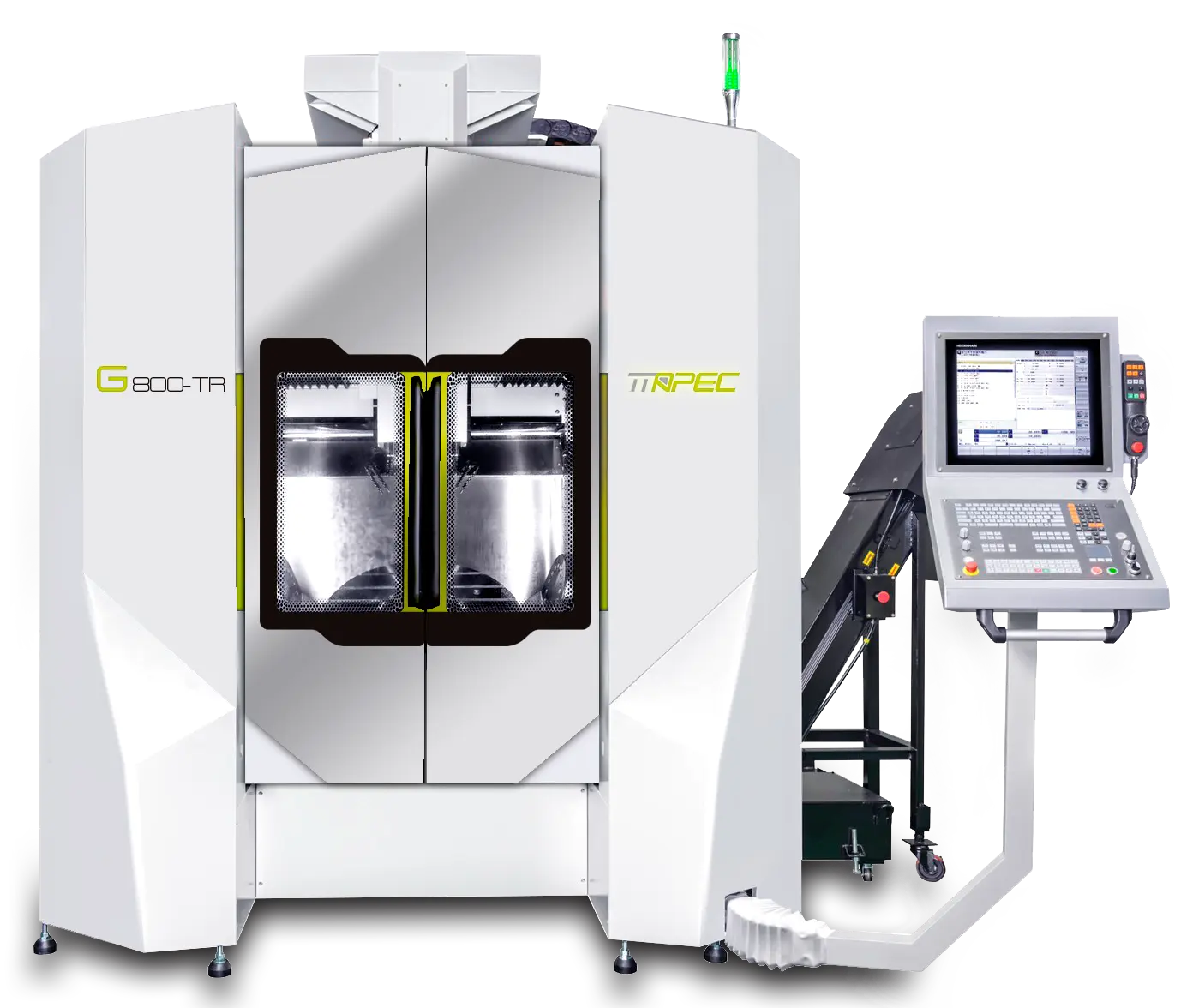

NEW APEC G800-T
Overview
Description
The APEC G-800 series is engineered for industries demanding precise and efficient five-axis simultaneous machining, including aerospace, mold, and automotive manufacturing. Its compact design, advanced features, and exceptional stability make it perfect for machining complex workpieces such as engine blisks, aluminum and titanium alloy structural parts, engine impellers and cases, as well as precision molds for car lamps and aerospace components.
Key Features:
• High-Speed Spindles: Options include 12,000 rpm (HSK100A), 15,000 rpm (HSK100A), 20,000 rpm (HSK63A), or 24,000 rpm (HSK63A) to suit diverse applications.
• Compact Gantry Design: Minimal footprint with optimal 3D space configuration for efficient operations.
• Precision Motion Control: X/Y/Z-axis powered by high-speed ball screws, with A/C-axis driven by direct drive motors for superior accuracy and smooth performance.
• Dynamic Stability: High-rigidity beam and triangular force flow design ensure structural stability and reduced vibration during machining.
• Advanced Accuracy: Heidenhain optical scales on all axes provide exceptional stability and protection from contaminants.
• Compact Trunnion Rotary Table: Features center of gravity drive and servo-driven design for better machining stability and shorter cycle times.
Discover financing options and take your manufacturing to the next level with MEGATEL CNC, your trusted partner for APEC machines.
Specifications
| X-Axis Travel | 800 mm | 31.496" |
|---|---|---|
| Y-Axis Travel | 830 mm | 32.677" |
| Z-Axis Travel | 560 mm | 22.047" |
| Spindle End to Table Distance | 210-770 mm | 210-770 mm |
| Table Size Dia | 800 mm | 31.496" |
| Table Load Capacity | 1,300 kg | 2,866 lb |
| Spindle Speed | 20,000 RPM | 20,000 RPM |
| Spindle Taper | HSK63T | HSK63T |
| Spindle power (S1/Max) | 30/38 kW | 30/38 kW |
| Spindle torque (S1/Max) | 88/123 Nm | 88/123 Nm |
| Swivel/Rotation Speed | A=70 / C=1000 RPM | A=70 / C=1000 RPM |
| Swivel/Rotation Torque | A/C=6920/3460 Nm | A/C=6920/3460 Nm |
| Clamping Torque | A/C=8,000 Nm | A/C=8,000 Nm |
| Swivel/Rotation Angle | A= ±120/C= Cont. | A= ±120/C= Cont. |
| ATC | 60 | 60 |
| Max. Tool Length | 300 mm | 11.811" |
| Max. Tool Weight | 8 kg | 17.6 lb |
| CN Control | Heidenhain TNC640 | Heidenhain TNC640 |
Equipped With
HEIDENHAIN TNC640 5-AXIS CNC CONTROLLER WITH HR510 MPG
20,000 RPM BUILT-IN SPINDLE, 30/38 KW (S1/MAX), 88/123 NM (S1/MAX), HSK63T
60 TOOLS ATC MAGAZINE
OIL AIR LUBRICATION DEVICE FOR SPINDLE
X/Y/Z AXIS WITH HIGH SPEED BALL SCREW DRIVE
X/Y/Z AXIS WITH HIGH RIGIDITY ROLLER TYPE LINEAR GUIDE WAY
5-AXIS WITH HEIDENHAIN OPTICAL LINEAR / CIRCULAR SCALE
CHAIN TYPE CHIP CONVEYOR SYSTEM
STANDARD COOLANT TANK
SPINDLE CHILLER
SPINDLE THERMAL COMPENSATION
AIR THROUGH SPINDLE
AIR CONDITIONER FOR ELECTRICAL CABINET
WATER PROOF LED WORKING LAMP
AIR DRYER
SAFETY INTERLOCK OF FRONT AND BACK DOOR
MANUAL OPEN/CLOSE TOP ROOF SLIDING COVER
