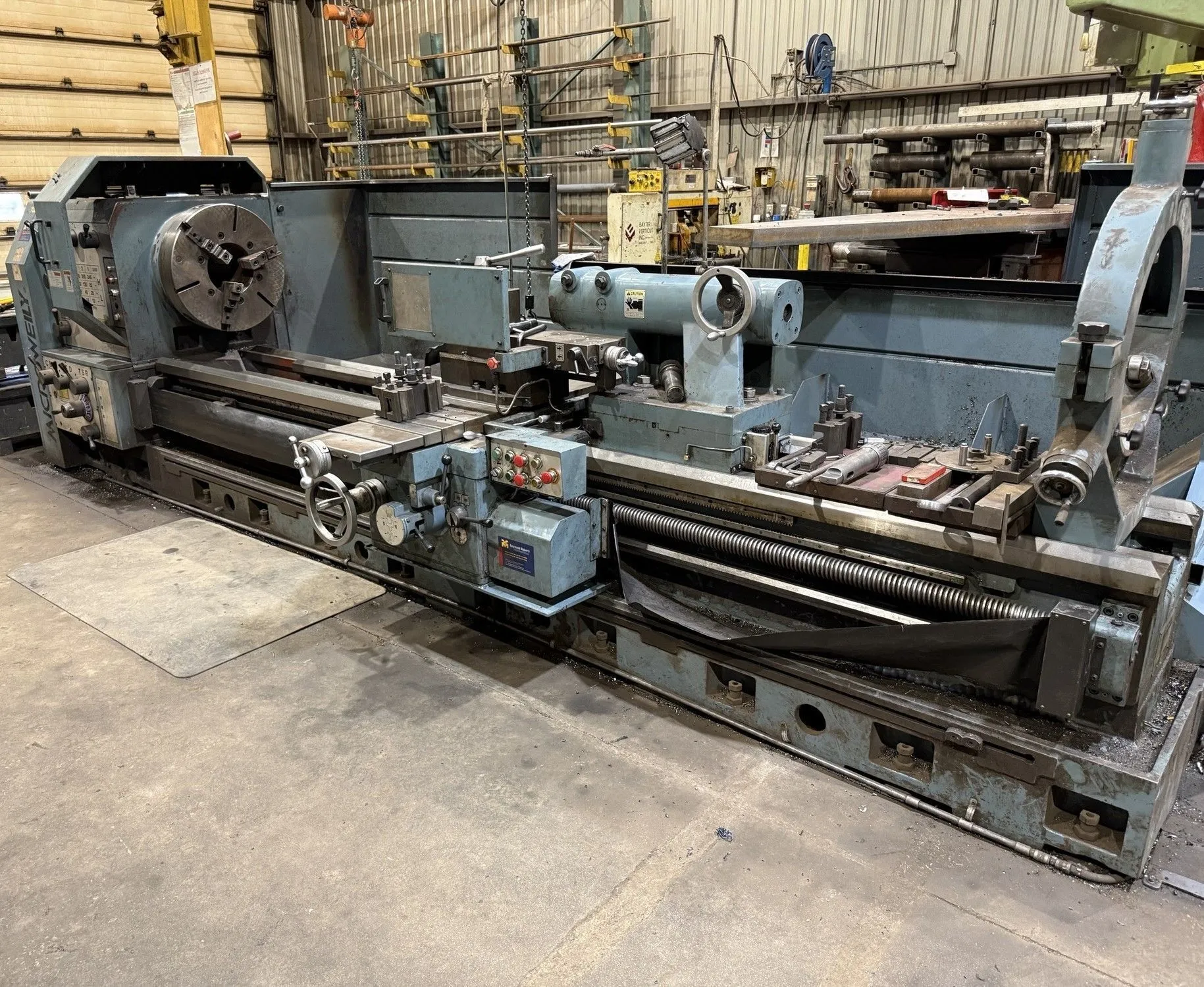

USED 2011 MICROWEILY TY-34 x 120-10

W/ 10" HOLLOW SPINDLE, 4 JAW REAR MOUNTED CHUCK AND ONE STEADY REST

TECHNICAL SPECIFICATIONS:

SWING OVER BED ....................... 34"
SWING OVER CROSS SLIDE ............... 25.10"
CENTER HEIGHT ........................ 17.71"
SPINDLE NOSE CAMLOCK ................. A1-15
HOLE THROUGH SPINDLE ................. 10"
DISTANCE BETWEEN CENTERS ............. 118.1"
SPINDLE SPEED RANGE (12) ............. 10 - 500 RPM
LONGITUDINAL FEED RANGE (70) ......... 0.0043 - .249 IPR
CROSS SLIDE TRAVEL ................... 21.65"
COMPOUND TRAVEL ...................... 14.17"
INCH THREADING RANGE (55) ............ 0.25 - 30 TPI
METRIC THREADING RANGE (68) .......... 1 - 120 mm
DIAMETRAL PITCH THREAD (70)........... 2-120 D.P.
MODULE PITCH THREADS (45)............. 0.25-30 M.P.
LONGITUDINAL FEEDS ................... 0.05-6.38 mm/rev.
CROSS FEEDS .......................... 0.025-3.04mm/rev.
WIDTH OF BED ......................... 22"
TAILSTOCK SPINDLE DIAMETER ........... 4.90"
TAILSTOCK SPINDLE TAPER .............. #6 MT
TAILSTOCK SPINDLE TRAVEL ............. 9.84"
APPROXIMATE FLOOR SPACE............... 241"L X 87"W x 60"H
APPROXIMATE WEIGHT ................... 24,200 LBS

3- jaw chucks 32" OD
4 - Jaw Chucks (rear mounted) 32" OD
Follow and steady rest
Quick Change Tool post and tooling
Tailstock
Inch Metric Threading
Thread Dial Indicator
Feed on tool post slide

EXCELLENT CONDITION
