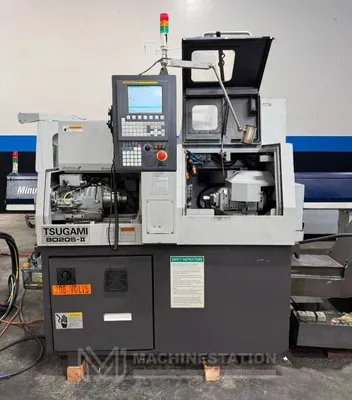

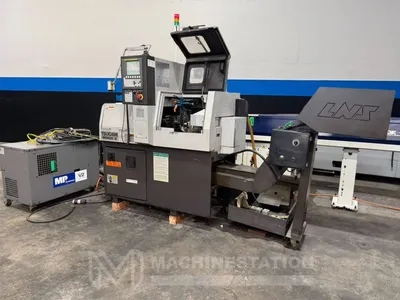

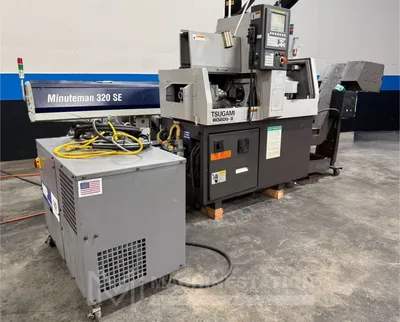

USED 2013 TSUGAMI BO-205II

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

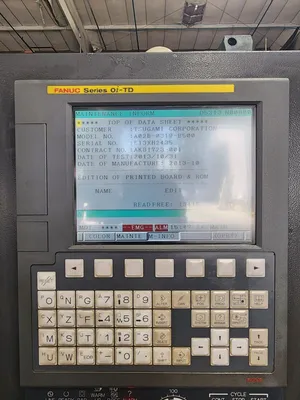

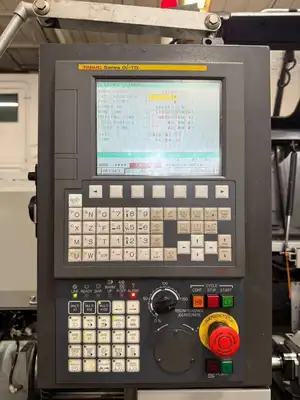

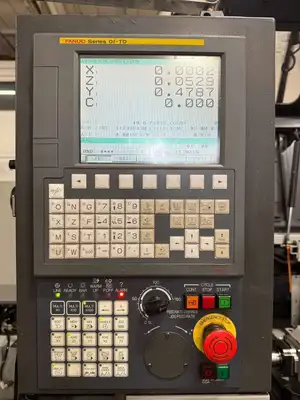

Fanuc Oi-TD CNC Control
Controlled Axes (Liner Axes) X1, X2, Y1, Z1, Z2
C & Y Axis Capable
Live Tools Capable
Long Parts Capable
Main & Back Spindle Synchronization
High Speed Rapid Travers: 1260 IPM (X1: 945 IPM)
Automatic Lubrication System

Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 8.3″ (210 mm)
Max Turning Length with Gripping Unit: 6.69″ (170mm)
Max Bar Capacity: 0.79″ (20 mm)
Total Tool Storage Capacity: 21 Tools
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M10 x 1.5
Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max. Back Spindle Tapping Diameter: M8 x 1.25
Max. Cross Drilling Diameter: 0.236 ( 6 mm) (option)
Max. Cross Tapping Diameter: M5 x 0.8 (option)

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 200 – 10000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 – 12000 RPM
Back Spindle Motor: 2.2 kw

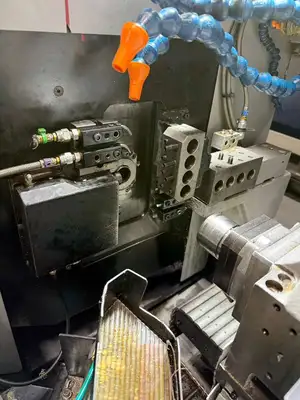

Total Tool Storage Capacity:
OD Tools: 9
ID Tools: 4
Cross Rotary Tools: 2, 3, 4 (Optional)
Front Tool Post: 4
Back Tool Post: 4

General:
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 11 kva
Overall Dimensions: 64.56″ X 42.51″ X 66.93″ High without Bar Feeder
Weight: 3,747 lbs. Approx.

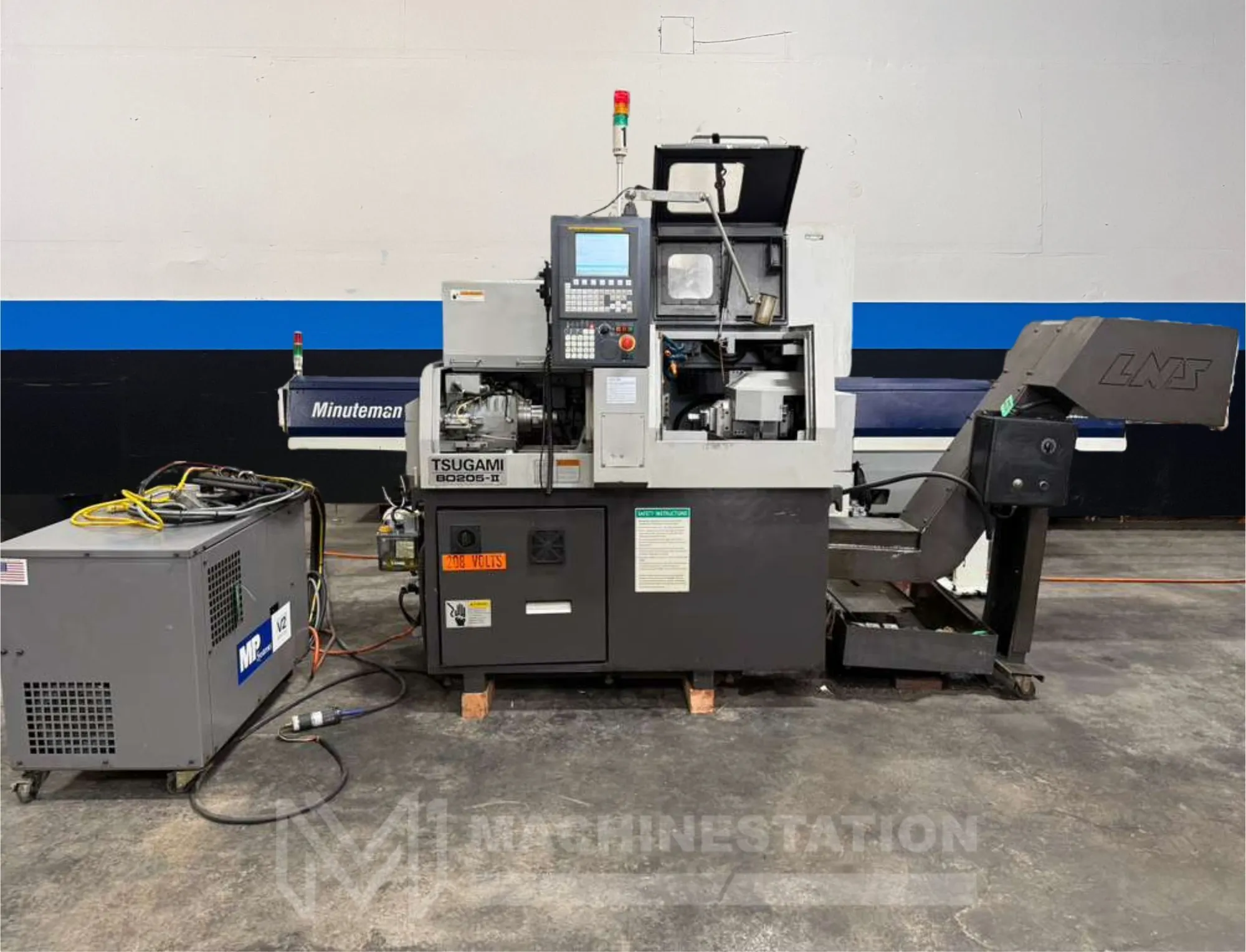

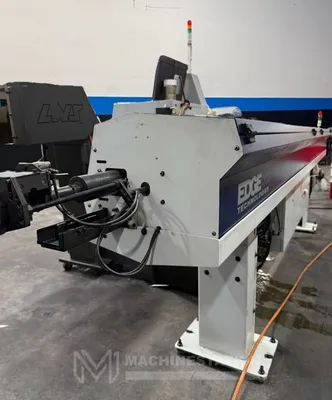

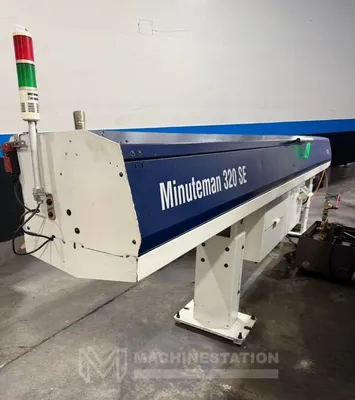

Comes with Edge Minuteman 320 SE Bar Feeder

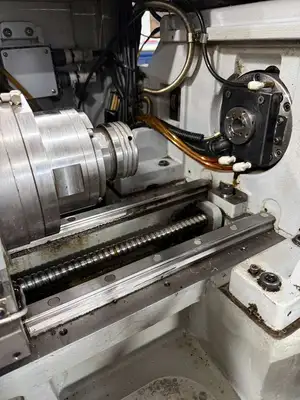

Back Spindle
MPG Handwheel Control
Parts Catcher
Parts Conveyor

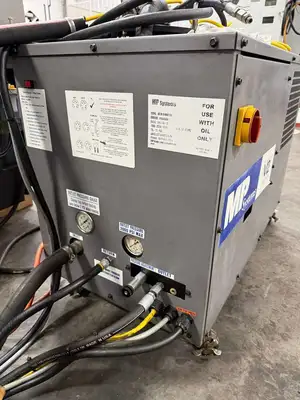

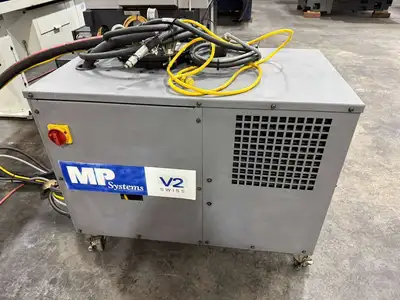

MP Systems V2 High Pressure Oil Coolant System
LNS Chip Conveyor
Levelling Pads
