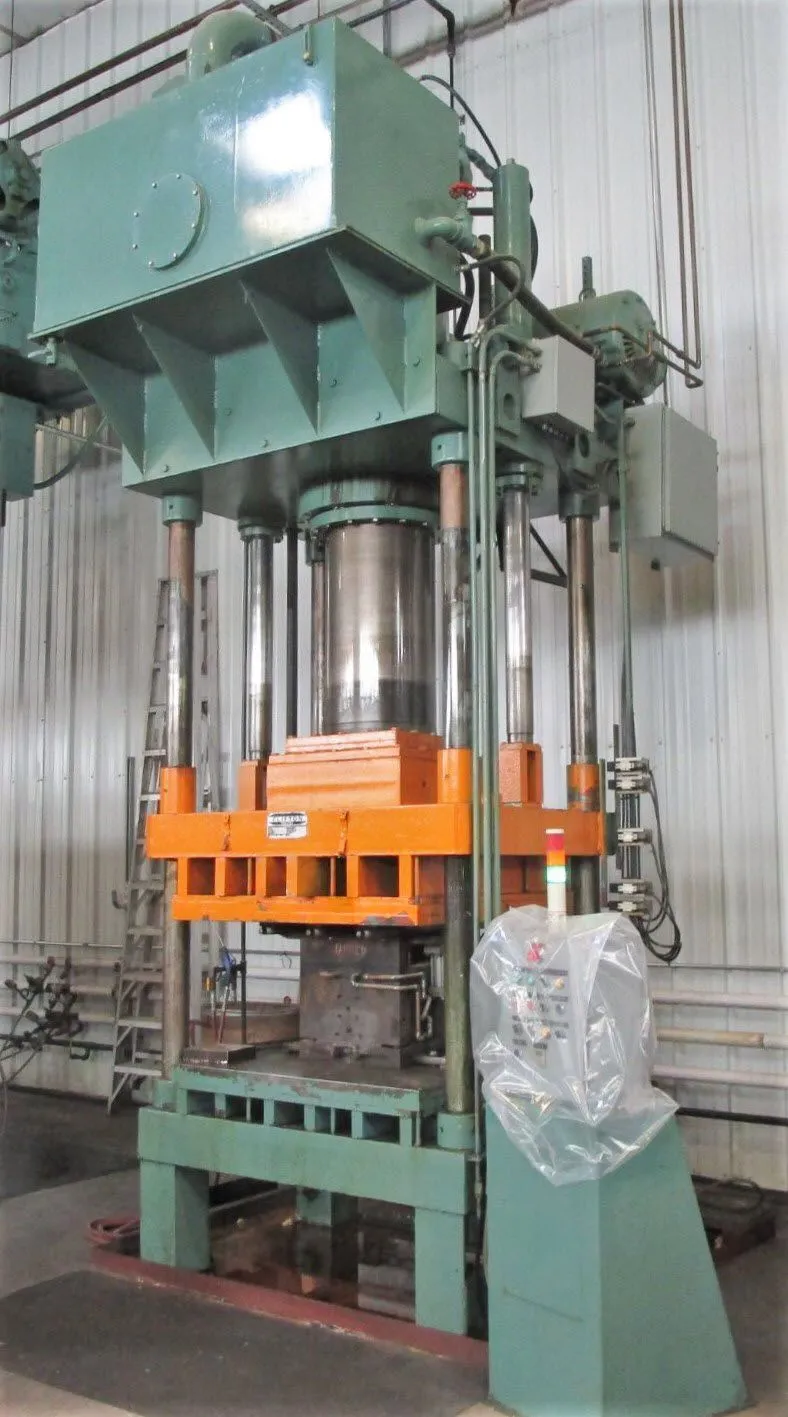

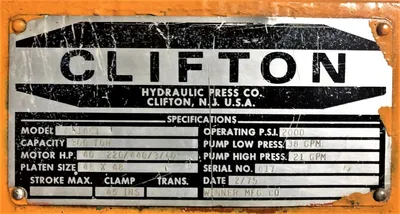

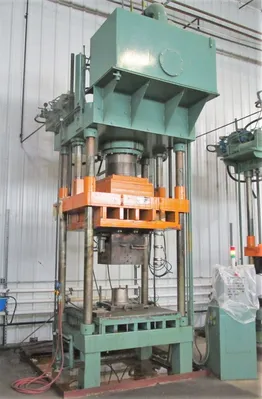

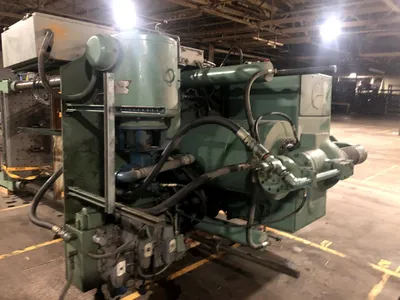

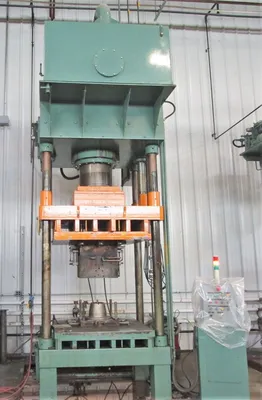

300 Ton CLifton, Model: A-1461 Clifton, 50" Stroke, 86" Daylight, 51" x 52" (Usable Bed Area), Nicely Updated Toshiba Controls
| Tonnage | 300 TONS @ 2,000 PSI | 272.156 t |
| Design | 4 Post | 4 Post |
| Up or Downstroke? | Downstroke | Downstroke |
| Stroke | 50" | 1,270 mm |
| Daylight | 86" | 2,184.4 mm |
| Bed (L-R) | 51" | 1,295.4 mm |
| Bed (F-B) | 52" | 1,320.8 mm |
| Dimensions | 110" X 86" (RL X FB) X 210" (17'6") HIGH | 110" X 86" (RL X FB) X 210" (17'6") HIGH |
CAPACITY 300 TONS @ 2,000 PSI
MAX. STROKE 50"
DAYLIGHT 86"
OVERALL BED AREA 64" X 52" (RL X FB)
DISTANCE BETWEEN POSTS 51" X 33" (RL X FB)
USABLE BED & RAM AREA 51" X 52" (RL X FB)
SPEEDS (INCHES PER MINUTE) __
CYLINDER SIZE 19.5" DIA. BORE
RAM ROD SIZE 17" DIA.
POSTS SIZE 4.5" DIA.
FLOOR TO BED 26.5"

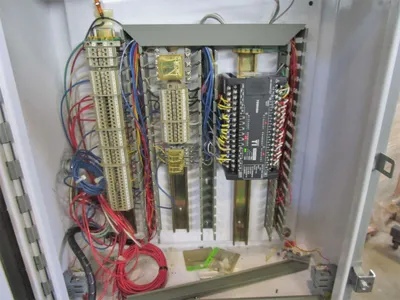

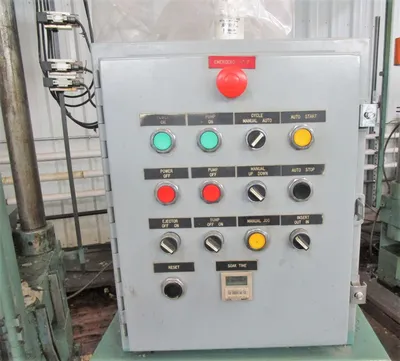

PRESS CONTROLS NICE UPDATED TOSHIBA T1 CONTROLLER

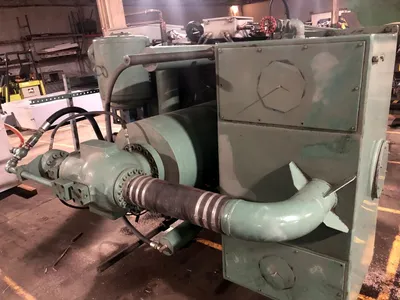

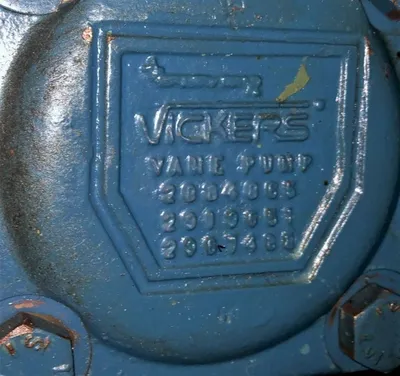

HYDRAULICS VICKERS 2884865 VANE PUMP

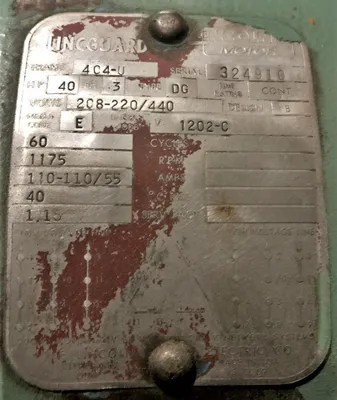

ELECTRICAL 40 HP 208-220/440V-3-60 LINCGUARD LINCOLN MOTOR | 110-110/55 AMPS
OVERALL DIMENSIONS 110" X 86" (RL X FB) 210" HIGH
OVERALL WEIGHT __
Equipped With __
Note __
Location This Used Press is Located in Our Jackson, MI Falahee Building
