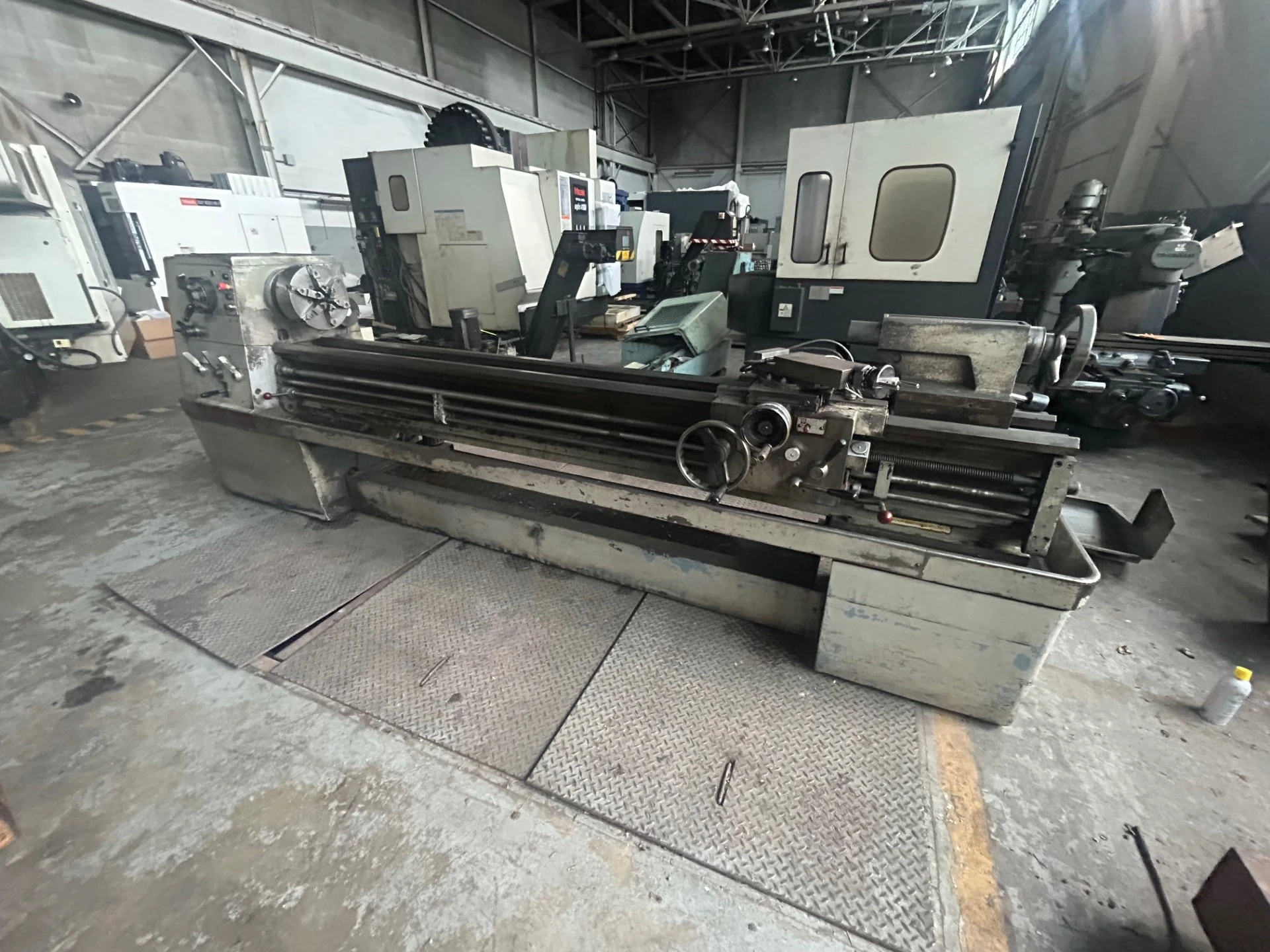

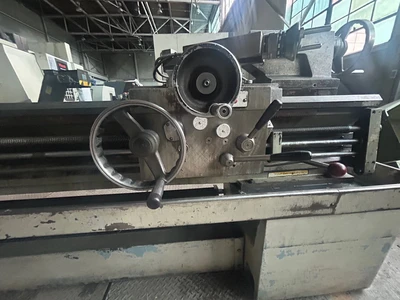

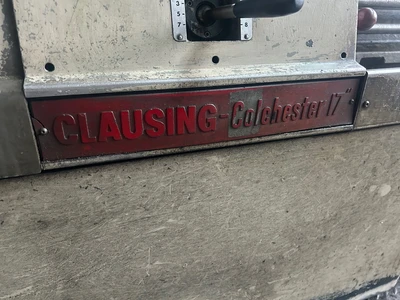

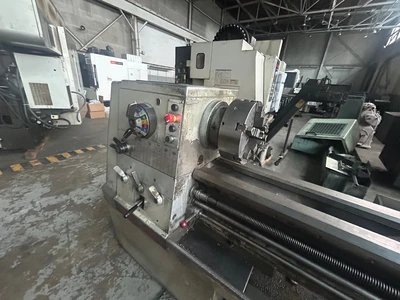

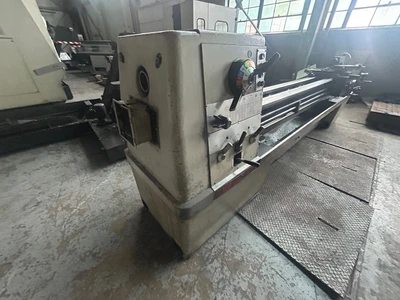

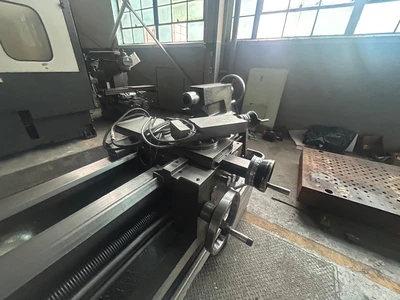

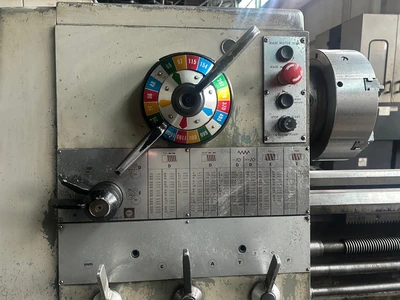

Clausing Colchester 17″ x 80″ Manual Engine Lathe

SWING OVER BED …………………. 17-1/4″

SWING IN REMOVABLE GAP ………….. 28″

SWING OVER CROSS SLIDE ………….. 10-1/2″

DISTANCE BETWEEN CENTERS ………… 80″

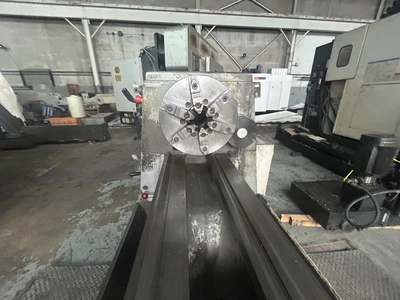

SPINDLE NOSE CAMLOCK ……………. D1-8″

HOLE THRU SPINDLE ………………. 3-1/16″

SPINDLE SPEED RANGE (16) ………… 20 – 1,600 RPM

ENGLISH THREADING RANGE (38) …….. 2 – 72 TPI

METRIC THREADING RANGE (40) ……… .4 – 14 MM

LONGITUDINAL FEED RANGE (45) …….. .002″ -. 032″ IPR

CROSS FEED RANGE (45) …………… .001″-.016″ IPR

TAILSTOCK SPINDLE TAPER …………. #5 MT

TAILSTOCK SPINDLE TRAVEL ………… 7″

APPROX DIMENSIONS ………………. 140″L x 42″W x 52″H

APPROX WEIGHT ………………….. 6,000 LBS
