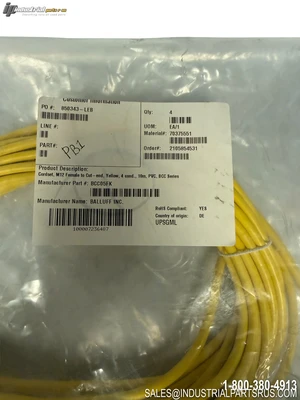

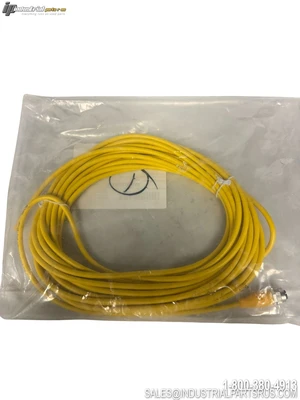

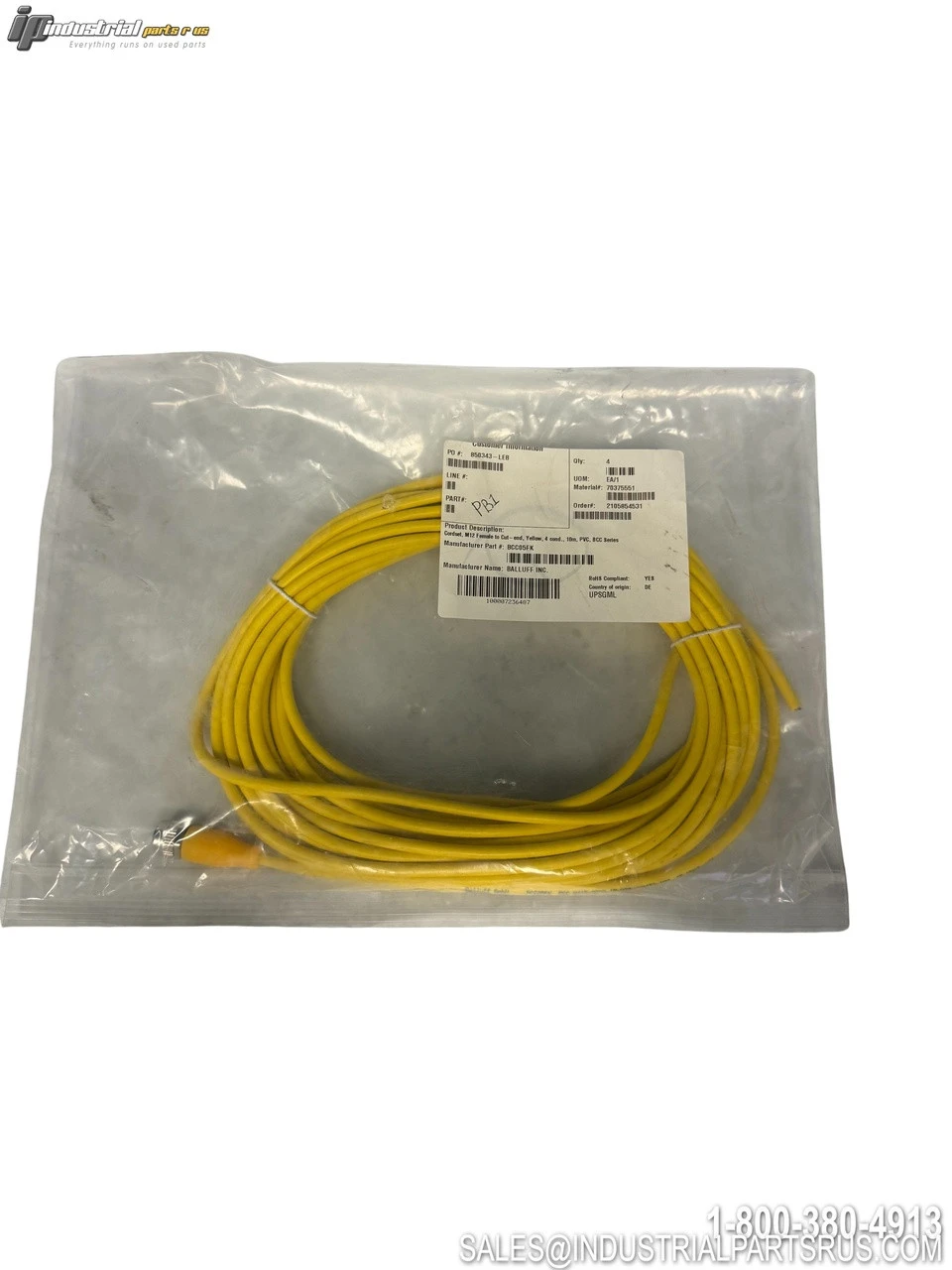

NEW BALLUFF BCCO5FK

The Balluff BCC05FK is a single-ended M12 sensor/actuator cable designed for industrial automation applications. The Balluff BCC05FK (BCC M415‑0000‑1A‑003‑VX44T2‑100) is a single‑ended M12 sensor/actuator cable that pairs a straight M12x1 female, 5‑pin (A‑coded) connector to cut‑end pigtail leads for fast, plug‑and‑play wiring in industrial automation. Its 10 m yellow PVC cable is drag‑chain compatible and built with 4×22 AWG conductors for dependable signal and power transmission in sensors, vision systems, and actuators. Rated 250 VAC/DC, 4 A, and sealed to IP67/IP68/IP69K, the BCC05FK withstands harsh conditions with wide temperature ranges (−40…105 °C fixed, −5…105 °C flexible, −5…60 °C in drag chains) and durability proven to ≥2 million bending cycles—ideal for washdown and high‑duty motion applications.
Specification
Value
Brand
Balluff
Model/Part Number
BCC05FK
Full Part Number
BCC M415-0000-1A-003-VX44T2-100
Connection Type
M12x1 Female, Straight, 5-pin, A-coded
Cable Length
10m
Cable Type
PVC Yellow, Drag Chain Compatible
Number of Conductors
4
Conductor Cross-Section
22 AWG
Operating Voltage
250 VDC / 250 VAC
Rated Current (40°C)
4.0 A
IP Rating
IP67, IP68, IP69K
Operating Temperature (Fixed Routing)
-40°C to +105°C
Operating Temperature (Flexible Routing)
-5°C to +105°C
Operating Temperature (Drag Chains)
-5°C to +60°C
Switching Output
Antivalent
Approval/Conformity
CE, cULus, WEEE
Weight
2.20 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0456
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Balluff
Part Number: BCCO5FK
Shelf: J-100
Model: BCCO5FK
MPN: BCCO5FK
Type: Sensor Cable
