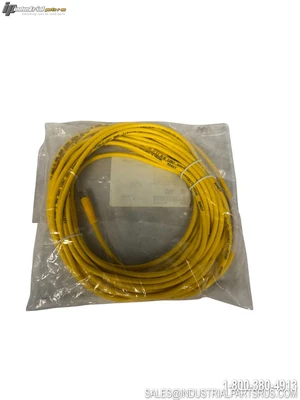

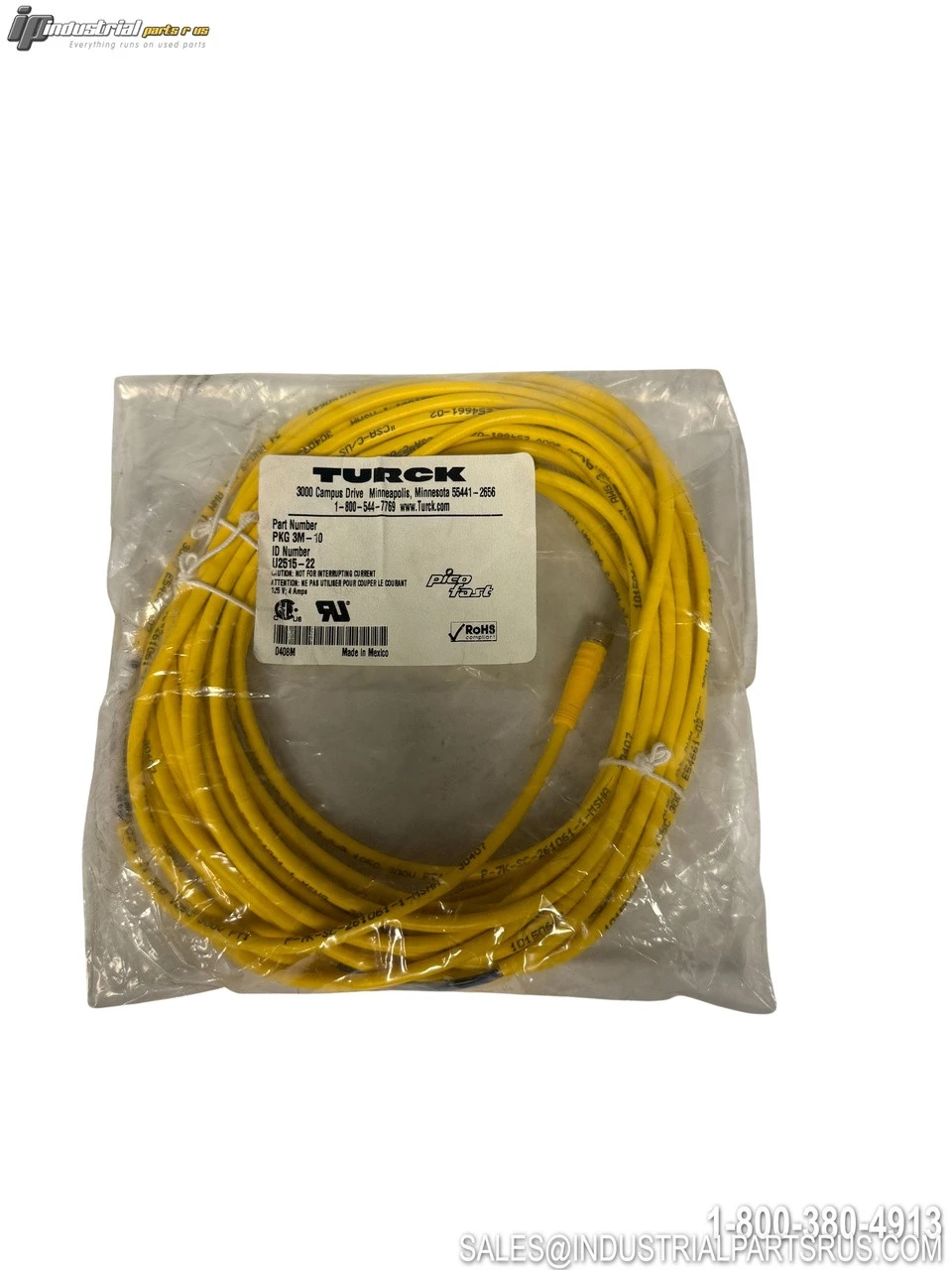

NEW TURCK PKG 3M-10

This Turck PKG 3M-10 is a professional-grade actuator and sensor cordset designed for industrial automation applications. The cable features a straight M8 female connector with open-ended flying leads, making it ideal for connecting sensors, actuators, and other automation devices. With IP67 protection when coupled and UL/CSA approvals, this cordset ensures reliable performance in demanding industrial environments.
Specification
Value
Brand
Turck
Model/Part Number
PKG 3M-10
Product ID
U2515-22
Series
Picofast
Connector Type
Female M8 x 1 Straight
Length
10m
Conductor Size
3 x 24 AWG
Number of Contacts
3
Rated Voltage
125 VAC/DC
Current Rating
4A
Cable Diameter
4.39mm
Protection Rating
IP67 (when coupled)
NEMA Rating
1, 3, 4, 6P
Connector Body Material
TPU, Yellow
Coupling Nut Material
Brass, Nickel-plated
Contact Material
Brass, Gold-plated
Operating Temperature
-40°C to +105°C (static)
Flex Rating
10 million cycles
Approvals
UL 2238, CSA C22.2 No. 182.3, CE
We warranty all items for 30 days from date of purchase.
