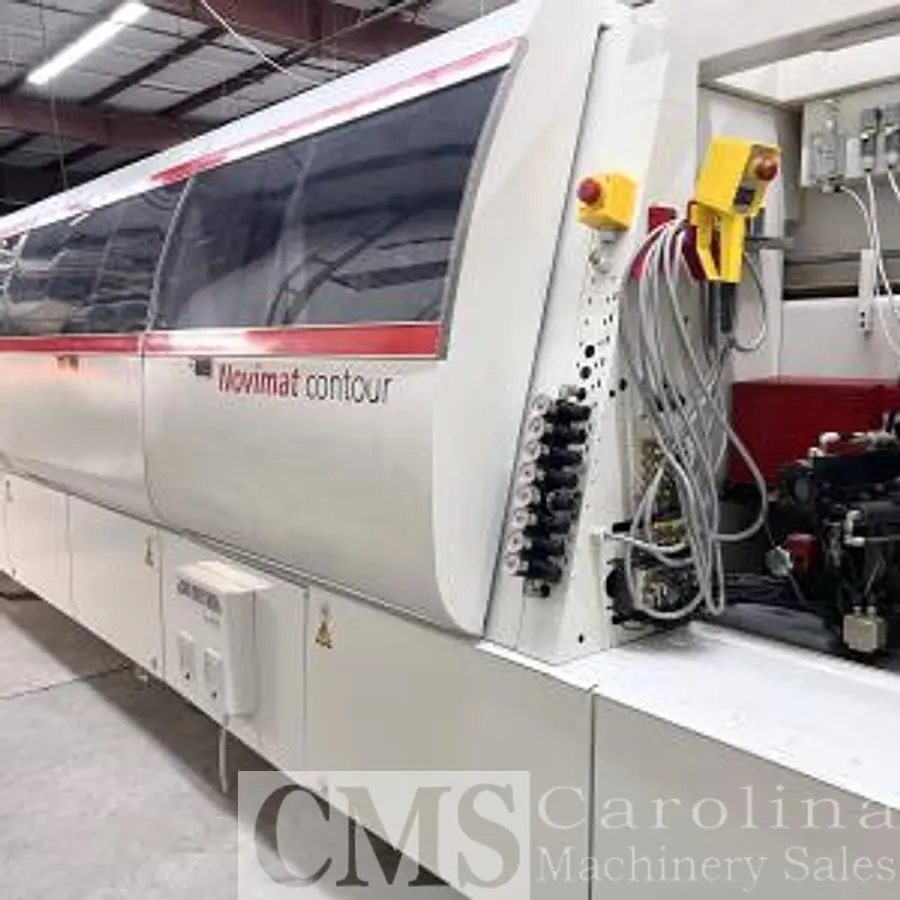

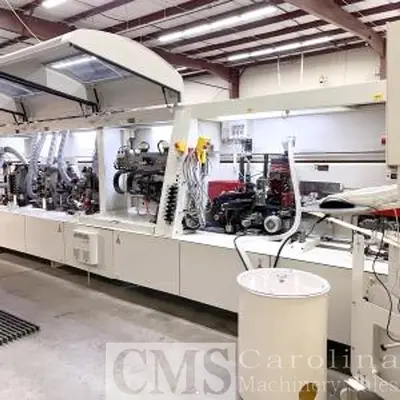

USED IMA NOVIMAT CONCEPT L20

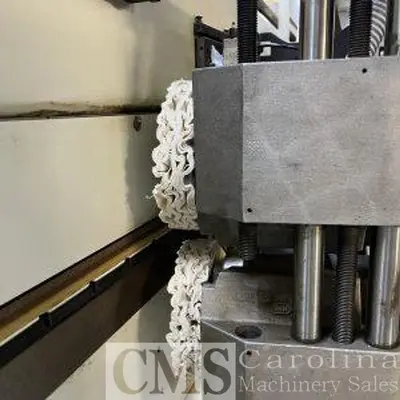

Tooling: Multi-Milling Unit, 2 mm corner rounding unit
Edgeband Capabilities: 0.5 mm - 3 mm coiled edgebanding
Edging Strips and Lipping: 3 mm - 20 mm
Minimum Edge Tape Height: 14 mm
Maximum Edge Tape Height: 65 mm
Minimum Panel Thickness: 8 mm
Maximum Panel Thickness: 60 mm
Smallest Work-piece 65 mm x 300 mm (at max panel thickness of 25 mm)
Processing Speed: 20 m/min with corner rounding
Processing Speed: up to 30 m/min only end trimming
Working height: 960 mm
Operating Voltage: 3PE 60Hz 480V
Rated Power: 27 kW
Nominal Current: 56A
Compressed Air: 7-8 bar
