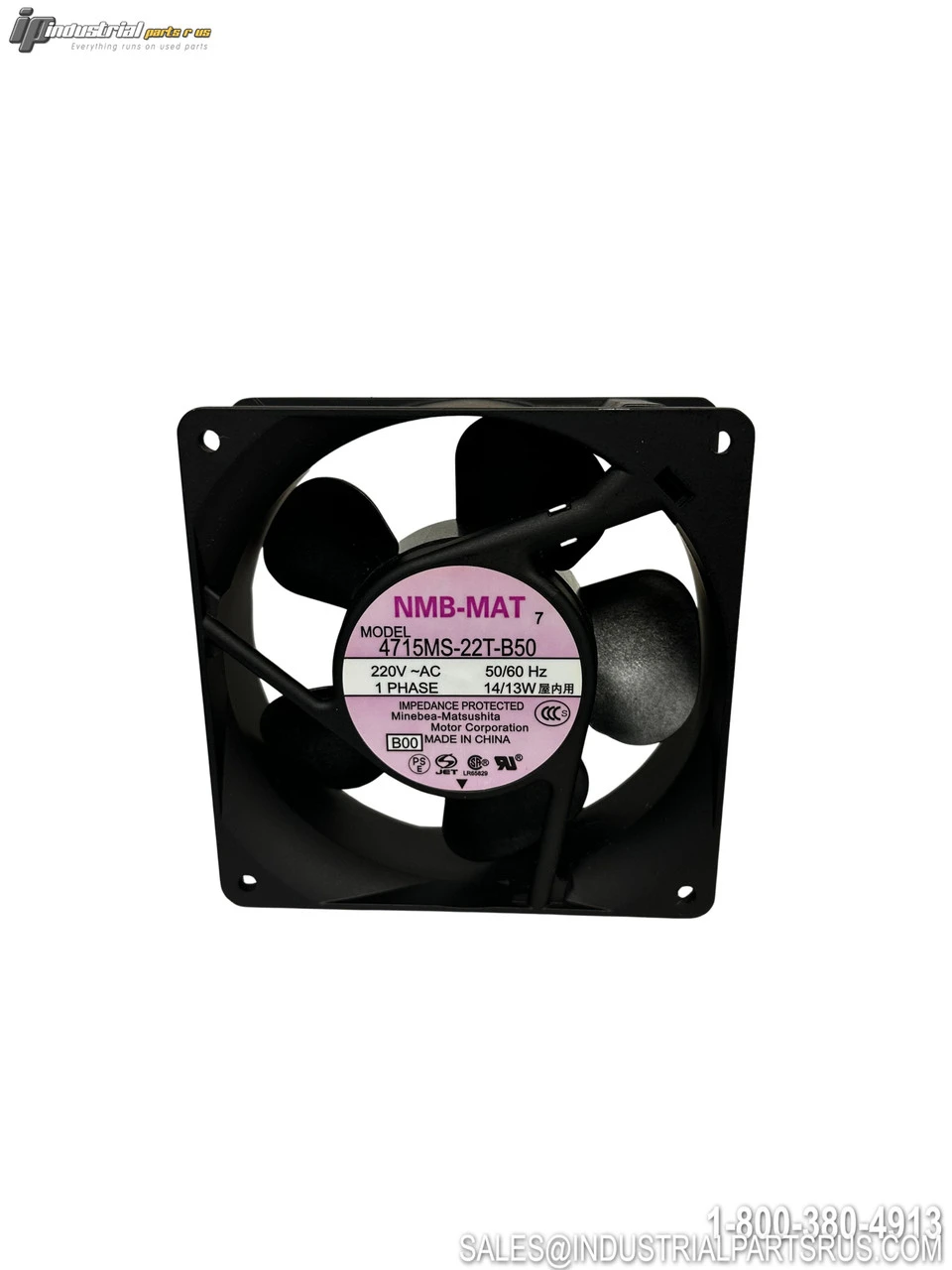

USED NMB-MAT 4715MS-22T-B50

The NMB-MAT 4715MS-22T-B50 is a professional-grade AC axial cooling fan designed for industrial applications including UPS systems, server cooling, and telecommunications equipment. This square frame fan features ball bearing construction for reliable operation and optimized airflow performance.
Specification
Value
Brand
NMB-MAT
Model/Part Number
4715MS-22T-B50
Supply Voltage
220VAC
Frequency
50/60Hz
Power Rating
14W (50Hz) / 13W (60Hz)
Current Rating
0.12A (50Hz) / 0.10A (60Hz)
Frame Size
119mm x 119mm
Depth
38mm
Speed
2600 RPM (50Hz) / 2900 RPM (60Hz)
Air Flow
88.3 CFM (50Hz) / 102.4 CFM (60Hz)
Static Pressure
63.8 Pa (50Hz) / 75.6 Pa (60Hz)
Noise Level
37dB (50Hz) / 41dB (60Hz)
Bearing Type
Ball Bearing
Connection Type
Terminal
Series
4715MS
Mass
550g
We warranty all items for 30 days from date of purchase.

SKU: AI0428
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Full Load Amps: 0.12A (50Hz) / 0.10A (60Hz)
Manufacturer: Nmb-Mat
Part Number: 4715MS-22T-B50
Shelf: J-112
Model: 4715MS-22T-B50
MPN: 4715MS-22T-B50
Type: AC Axial Fan
