USED SMC XTO-1719
Overview
Description

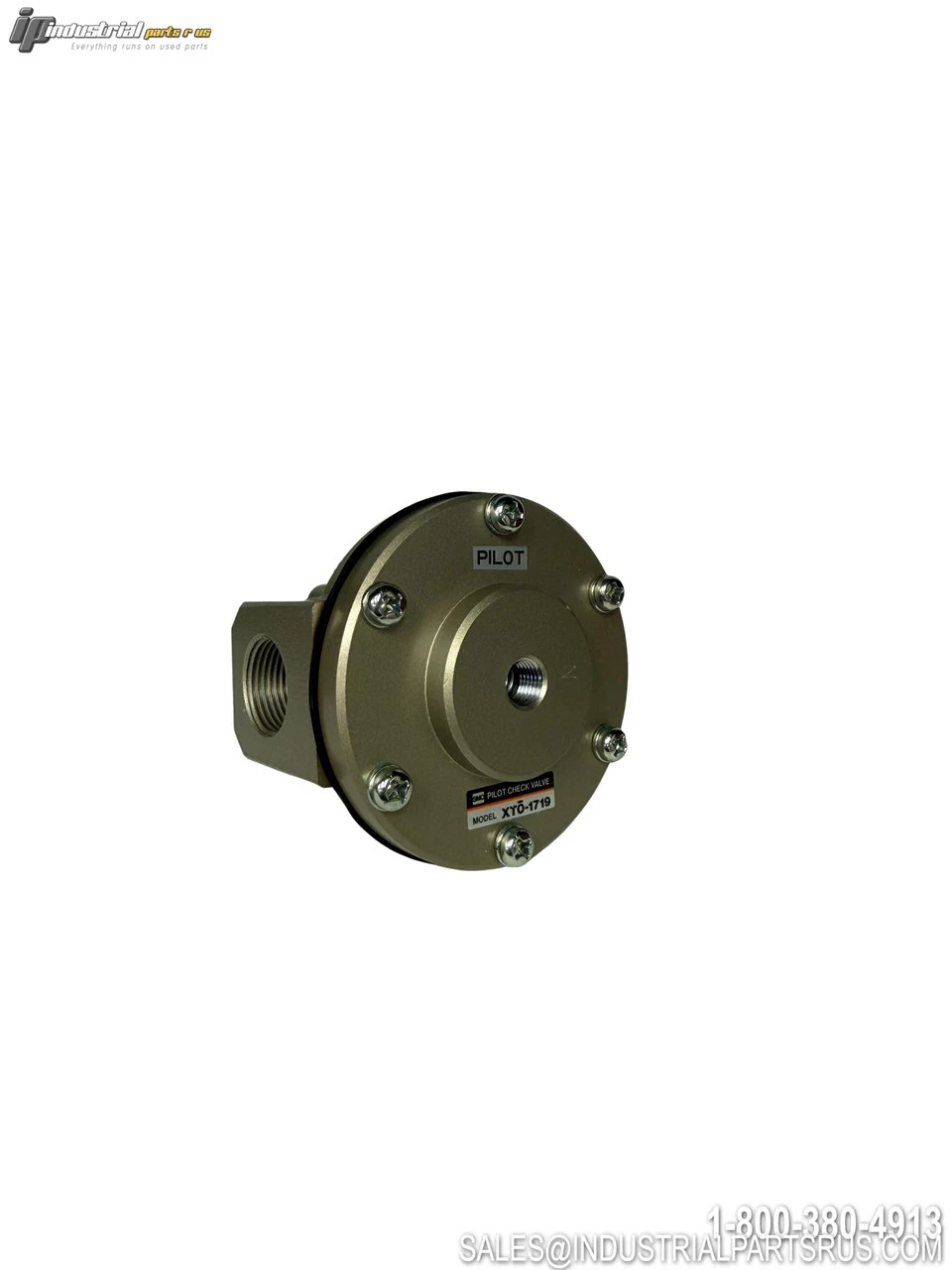

The SMC XTO-1719 is a pilot operated check valve designed for pneumatic air control applications. This in-line model features threaded connections and provides reliable directional flow control for compressed air systems. The valve allows free flow in one direction while blocking reverse flow until a pilot signal is applied.
Specification
Value
Brand
SMC
Model/Part Number
XTO-1719
Product Type
Pilot Check Valve
Valve Type
Pneumatic Valve
Series
XTO
Fluid
Air
Design
In-line
Connection Type
Threaded
Available Port Sizes
Rc3/4, Rc1
Proof Pressure
1.5 MPa
Maximum Operating Pressure
1.0 MPa (145 psi)
Minimum Operating Pressure
0.2 MPa
Pilot Pressure Range
0.2-1 MPa
Operating Temperature
-5 to 60°C
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI0423
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686161
Manufacturer: SMC
Part Number: XTO-1719
Shelf: A18
Model: XTO-1719
MPN: XTO-1719
Type: Pneumatic Valve
