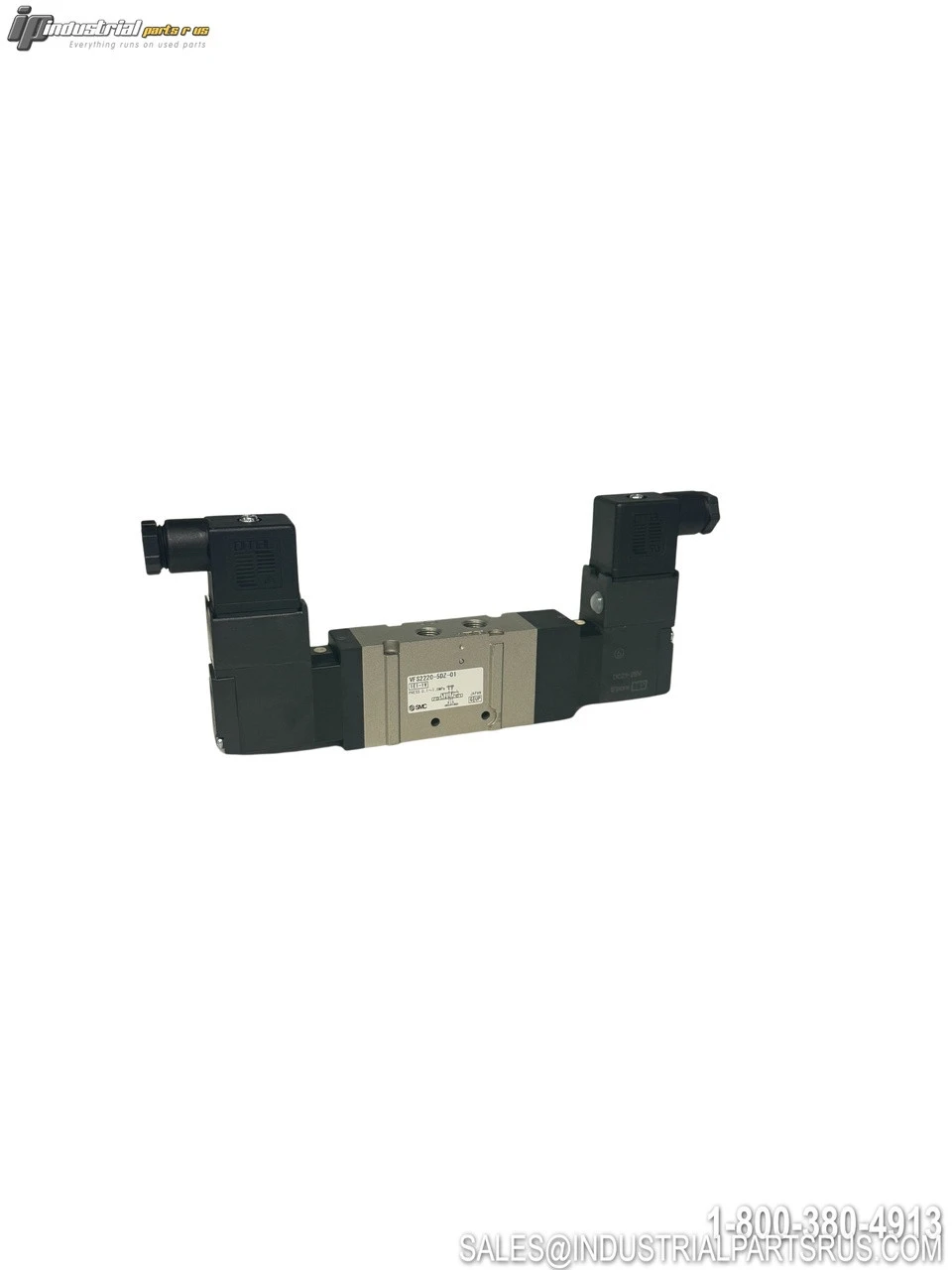

USED SMC VFS2220-5DZ-01

The SMC VFS2220-5DZ-01 is a 5-port pilot operated solenoid valve from the VFS2000 series, designed for pneumatic automation applications. This valve features metal seal construction and is part of SMC's comprehensive line of pilot solenoid valves with metal seals and body ported type manifolds. The VFS2000 series provides compact design with high flow capacity of 1/4: C: 3.4 dm3/(s·bar) and low power consumption of 1.8 W DC.
Specification
Value
Brand
SMC
Model/Part Number
VFS2220-5DZ-01
Series
VFS2000
Port Configuration
5 Port
Operation Type
Pilot Operated
Actuation
2 Position Double
Coil Voltage
24VDC
Port Size
1/4"
Thread Type
Rc (PT)
Electrical Entry
DIN Terminal
Pilot Type
Internal Pilot
Manual Override
Non-locking Push Type (Flush)
Body Type
Body Ported Individual Exhaust
Seal Type
Metal Seal
Maximum Operating Pressure
9.9 kgf/cm² (0.97 MPa)
Operating Temperature
-10 to 60°C
Power Consumption
1.8W DC
Flow Capacity
C: 3.4 dm³/(s·bar)
Light/Surge Suppressor
With Light/Surge Voltage Suppressor
We warranty all items for 30 days from date of purchase.

SKU: AI0432
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686208
Manufacturer: SMC
Part Number: VFS2220-5DZ-01
Shelf: A-18
Model: VFS2220-5DZ-01
MPN: VFS2220-5DZ-01
Type: Solenoid Valve
