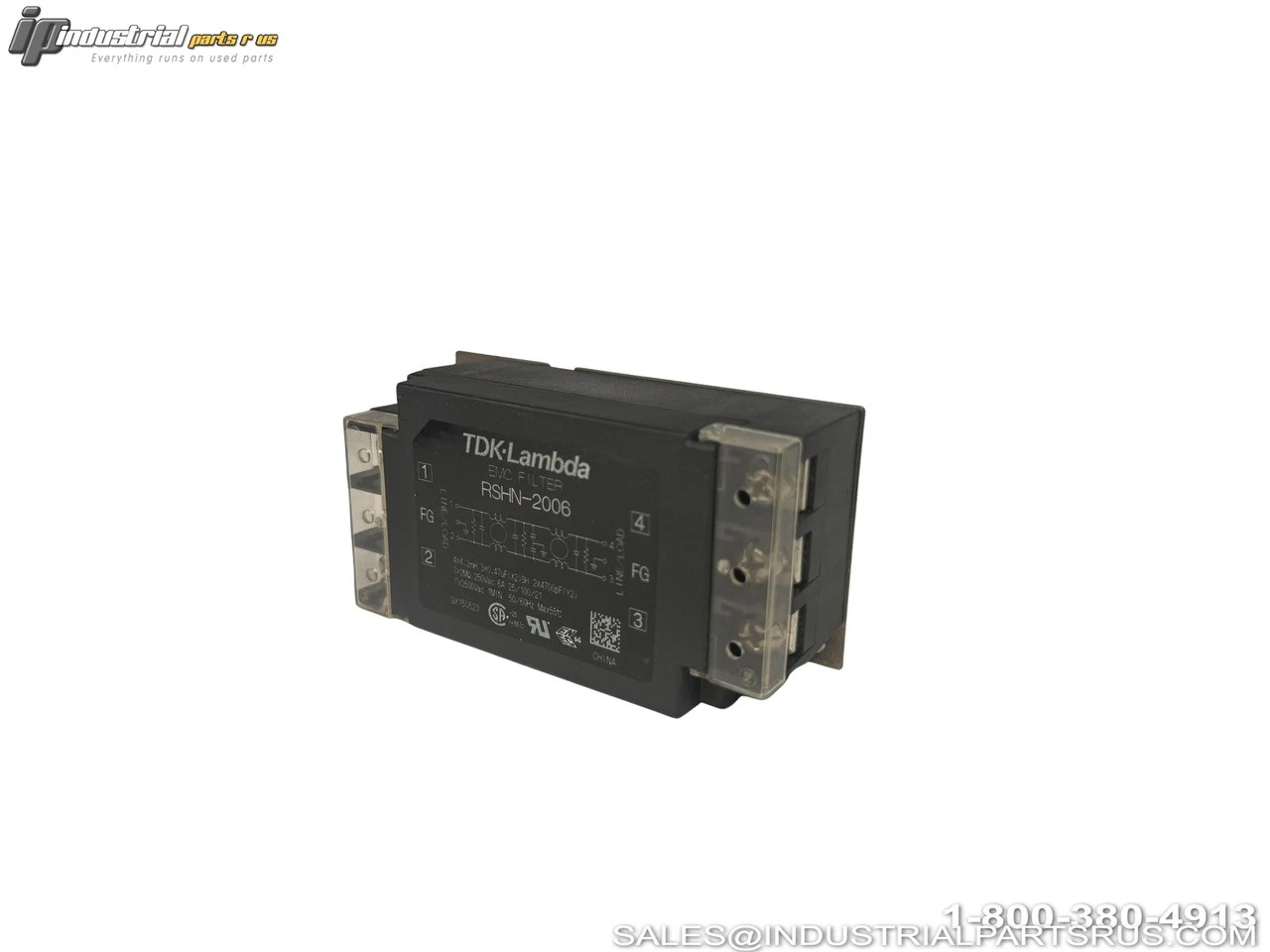

The TDK-Lambda RSHN-2006 is a single-phase EMC/EMI power line filter designed to provide high attenuation electromagnetic interference filtering for general purpose applications. This filter features terminal block connections and flange mounting for secure installation in industrial environments.
Specification
Value
Brand
TDK-Lambda
Model/Part Number
RSHN-2006
Type
Power Line Filter
Series
RSHN
Current Rating
6A
Voltage Rating (AC)
250VAC
Voltage Rating (DC)
250VDC
Number of Phases
Single Phase
Number of Stages
Two Stage
Operating Frequency
60Hz
Operating Temperature Range
-25°C to 85°C
Termination Type
Terminal Block
Mounting Type
Flange Mount
Dimensions (L x W x H)
98mm x 52mm x 35mm
Weight
240g
Insulation Resistance
100MΩ
Leakage Current
1mA
Withstanding Voltage
2500VAC
Safety Standards
UL1283/CSA C22.2 No.8/EN60939
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
| Weight | 3.00 LBS | 3.00 LBS |
SKU: AI0404
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 1mA
Manufacturer: TDK-Lambda
Part Number: RSHN-2006
Shelf: K-41
Model: RSHN-2006
MPN: RSHN-2006
Type: Power Line Filter
