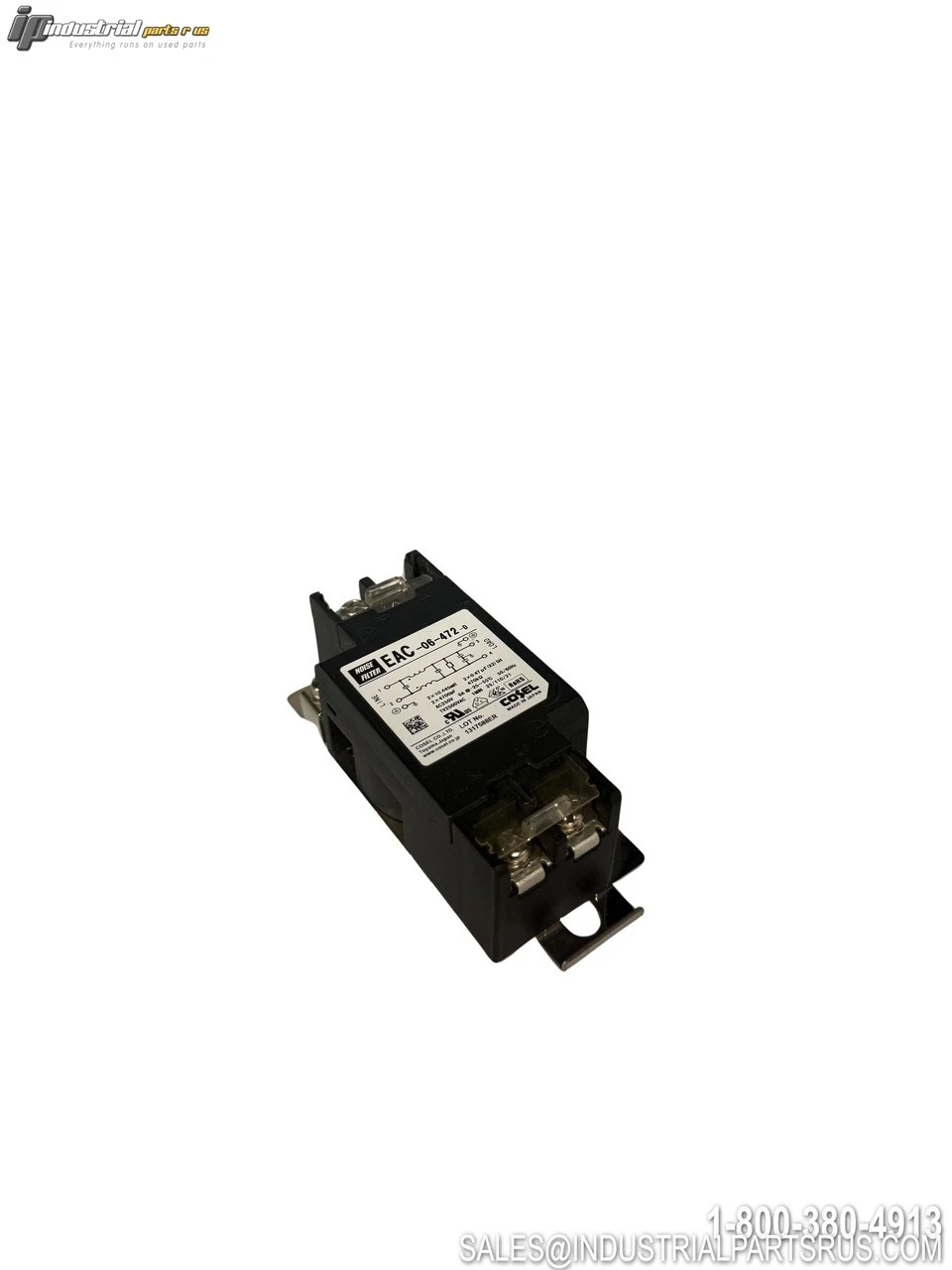

The COSEL EAC-06-472-D is a compact single-phase power line filter designed for EMI/EMC noise suppression in electrical systems. This filter operates in the 150kHz to 1MHz frequency range and features a 1-stage filtering design with terminal block connections and DIN rail mounting capability.
Specification
Value
Brand
COSEL
Model/Part Number
EAC-06-472-D
Product Type
Power Line Filter
Series
EAC
Rated Voltage
AC 1-Phase 250V / DC 250V
Rated Current
6A
Operating Frequency
60Hz
Filter Range
150kHz to 1MHz
Line to Ground Capacitor
4700pF
Leakage Current
0.5mA/1.0mA max (125/250V 60Hz)
Test Voltage
2500 VAC (Terminal-Mounting Plate)
Isolation Resistance
500 VDC 500MΩ min
Operating Temperature
-25°C to +85°C
Mounting Type
DIN Rail
Connection Type
Terminal Block
Dimensions (W×H×D)
39×30×85 mm (1.54×1.18×3.35 inches)
Weight
170g max
Safety Approvals
UL1283, CSA C22.2 No.8, DIN EN60939 VDE0565
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
| Weight | 2.00 LBS | 2.00 LBS |
SKU: AI0405
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Full Load Amps: 0.5mA/1.0mA max (125/250V 60Hz)
Manufacturer: Cosel
Part Number: EAC-06-472-D
Shelf: K-40
Model: EAC-06-472-D
MPN: EAC-06-472-D
Type: Power Line Filter
