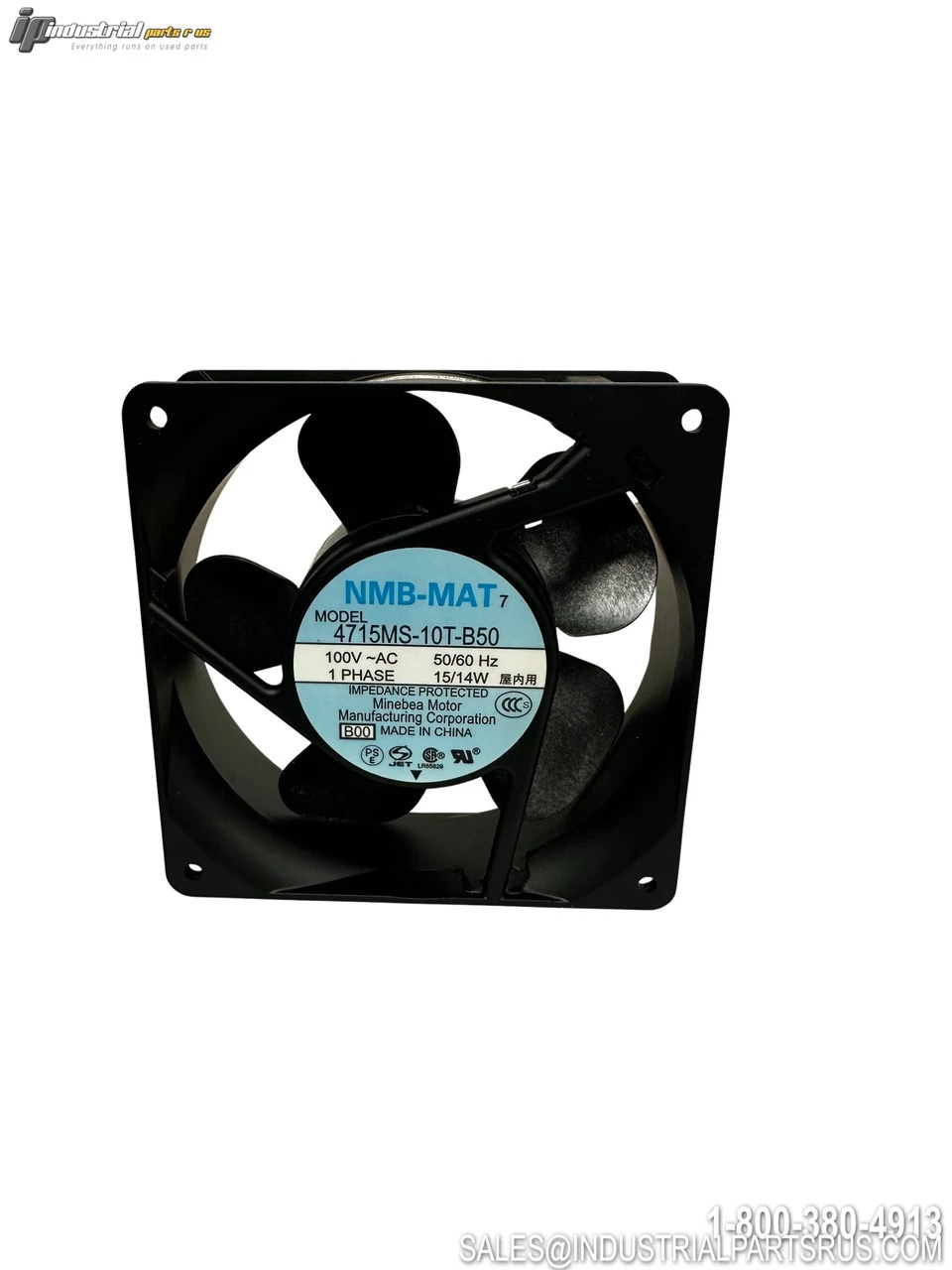

USED NMB-MAT 4715MS-10T-B50

The NMB-MAT 4715MS-10T-B50 is a high-performance AC axial cooling fan designed for industrial and commercial cooling applications. This square-frame fan features ball bearing construction for extended life and reliable operation in demanding environments. Manufactured by NMB Technologies (MinebeaMitsumi Group), this fan delivers efficient airflow with low noise operation.
Specification
Value
Brand
NMB-MAT
Model/Part Number
4715MS-10T-B50
Manufacturer
NMB Technologies Corporation (MinebeaMitsumi Group)
Voltage
100V AC
Power Rating
15W/14W
Current
0.27A
Frequency
50/60Hz
Frame Size
119mm x 119mm
Frame Depth
38mm
Frame Type
Square
Bearing Type
Ball Bearing
Air Flow (CFM)
88.3-102.4 CFM
Air Flow (m³/min)
2.5
Static Pressure
0.26 In H2O / 64.7 Pa
Fan Speed
2600 RPM
Noise Level
37-41 dBA
Life Expectancy
100,000 hours L10 at 25°C
Operating Temperature
-20°C to +75°C
Weight
550g
We warranty all items for 30 days from date of purchase.

SKU: AI0426
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 0.27 A
Manufacturer: Nmb-Mat
Part Number: 4715MS-10T-B50
Shelf: J-112
Model: 4715MS-10T-B50
MPN: 4715MS-10T-B50
Type: Electric Motor
