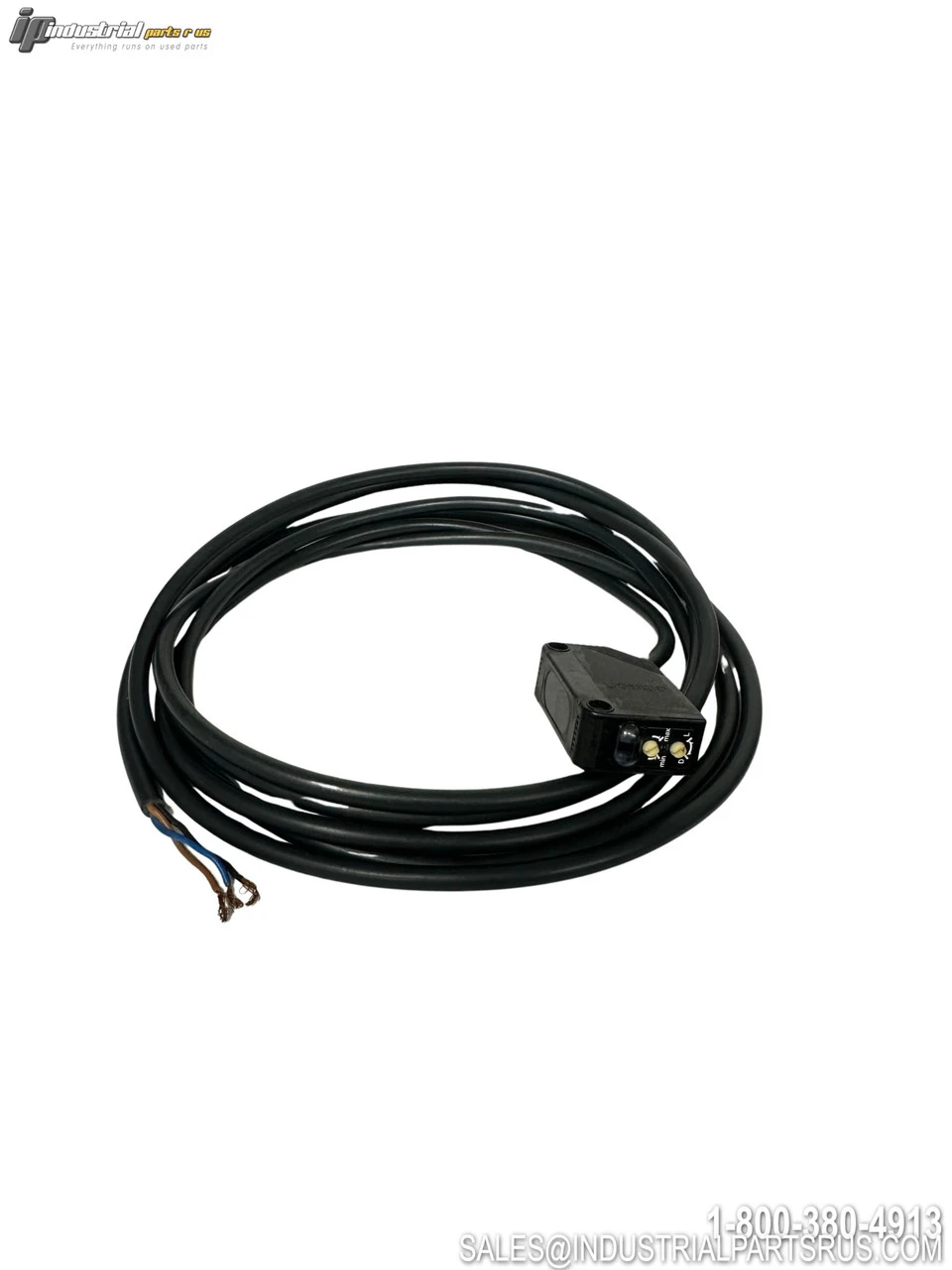

USED OMRON E3Z-D62

The Omron E3Z-D62 is a compact photoelectric sensor with built-in amplifier designed for diffuse reflective sensing applications. This general purpose sensor features NPN configuration and provides reliable object detection with infrared LED light (860nm). Ideal for detecting small objects with a small spot, this sensor offers stable detection across various industrial automation applications.
Specification
Value
Brand
Omron
Model/Part Number
E3Z-D62
Product Series
E3Z
Sensing Method
Diffuse Reflective
Output Type
NPN Open Collector
Sensing Range
100mm (White Paper 100×100mm)
Sensing Range Extended
1m (White Paper 300×300mm)
Power Supply Voltage
12 to 24 VDC ±10%
Current Consumption
30 mA max
Control Output
100 mA max at 26.4 VDC
Light Source
Infrared LED (860 nm)
Standard Sensing Object
Opaque: 12 mm dia. min.
Hysteresis
20% max of setting distance
Directional Angle
2 to 10°
Operating Mode
L-ON/D-ON, switch selectable
Residual Voltage
1 V max
Housing Type
Rectangular
We warranty all items for 30 days from date of purchase.

SKU: AI0407
UPC: 679523686222
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Output Type: NPN
Sensor Type: Photoelectric
Full Load Amps: 30mA
Manufacturer: Omron
Part Number: E3Z-D62
Shelf: N-8
Model: E3Z-D62
MPN: E3Z-D62
Type: Photoelectric Sensor
