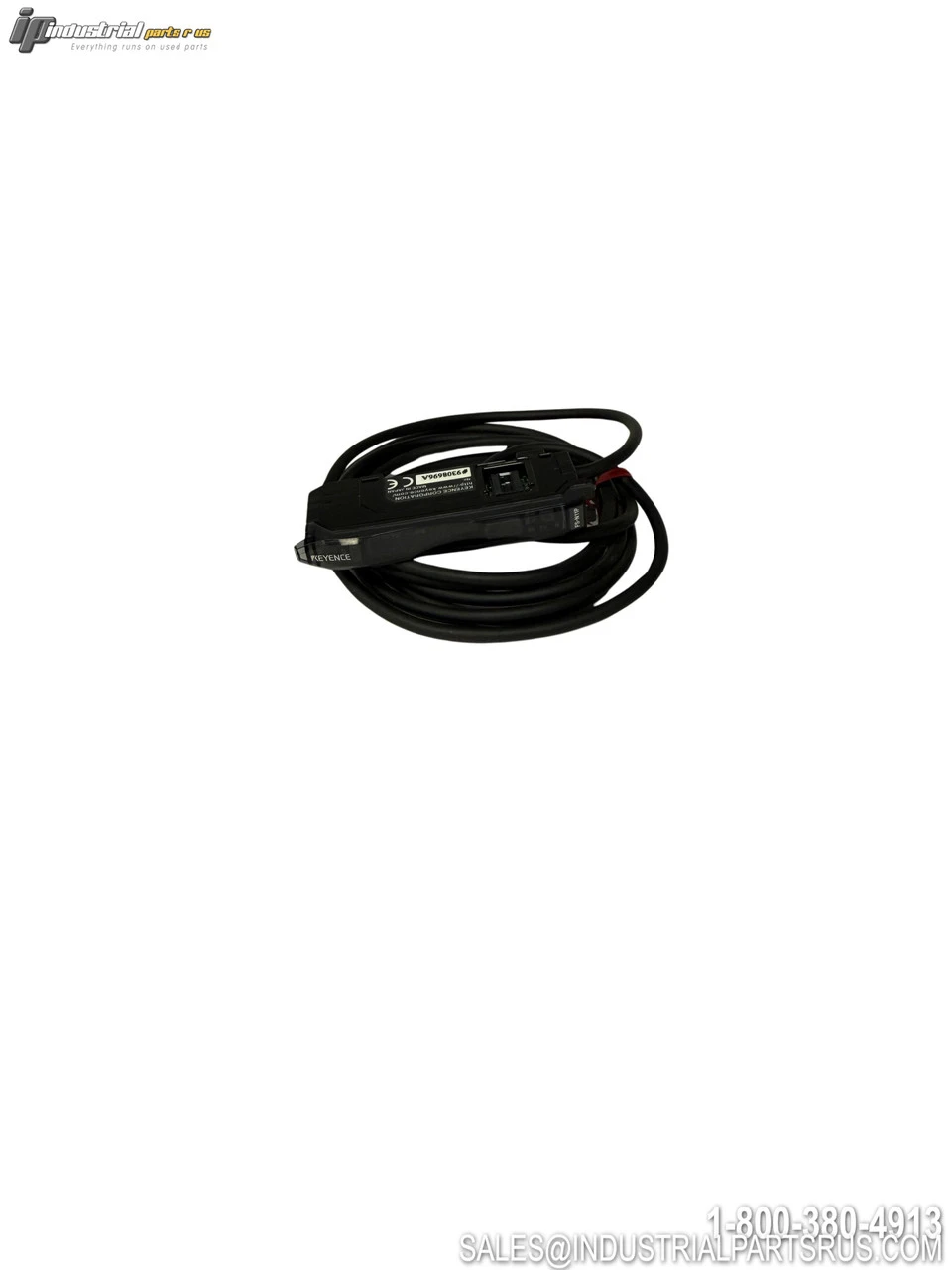

USED KEYENCE FS-N11P

The Keyence FS-N11P is a fiber optic amplifier designed for cable-type connection with NPN output configuration. This main unit amplifier works with the FU Series fiber optic sensor heads and features one-touch calibration, dual digital display, automatic maintenance, and MEGA power mode.
Specification
Value
Brand
Keyence
Model/Part Number
FS-N11P
Product Type
Fiber Optic Amplifier
Series
FS-N
Unit Type
Main Unit
Connection Type
Cable Type
Output Type
PNP
Power Voltage
12 to 24 VDC ±10%
Power Consumption
950 mW max (Normal mode)
Current Consumption
39 mA max @ 24V, 52 mA max @ 12V
Output Current
100 mA max
Output Impedance
10 kOhm
Response Time
50 µs to 16 ms (selectable)
Light Source
Red 4-element LED
Operating Temperature
-20 to +55°C (-4 to +131°F)
Mounting Type
DIN Rail
Dimensions (HxWxD)
1.19 x 0.39 x 2.83 inches (30.3 x 9.8 x 71.8 mm)
Housing Material
Polycarbonate
Approvals
CE Certified, cULus Listed
We warranty all items for 30 days from date of purchase.

SKU: AI0411
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: NPN
Sensor Type: Fiber Optic
Full Load Amps: 39 mA max @ 24V, 52 mA max @ 12V
Manufacturer: Keyence
Part Number: FS-N11P
Shelf: O-5
Model: FS-N11P
MPN: FS-N11P
Type: Fiber Optic Sensor
