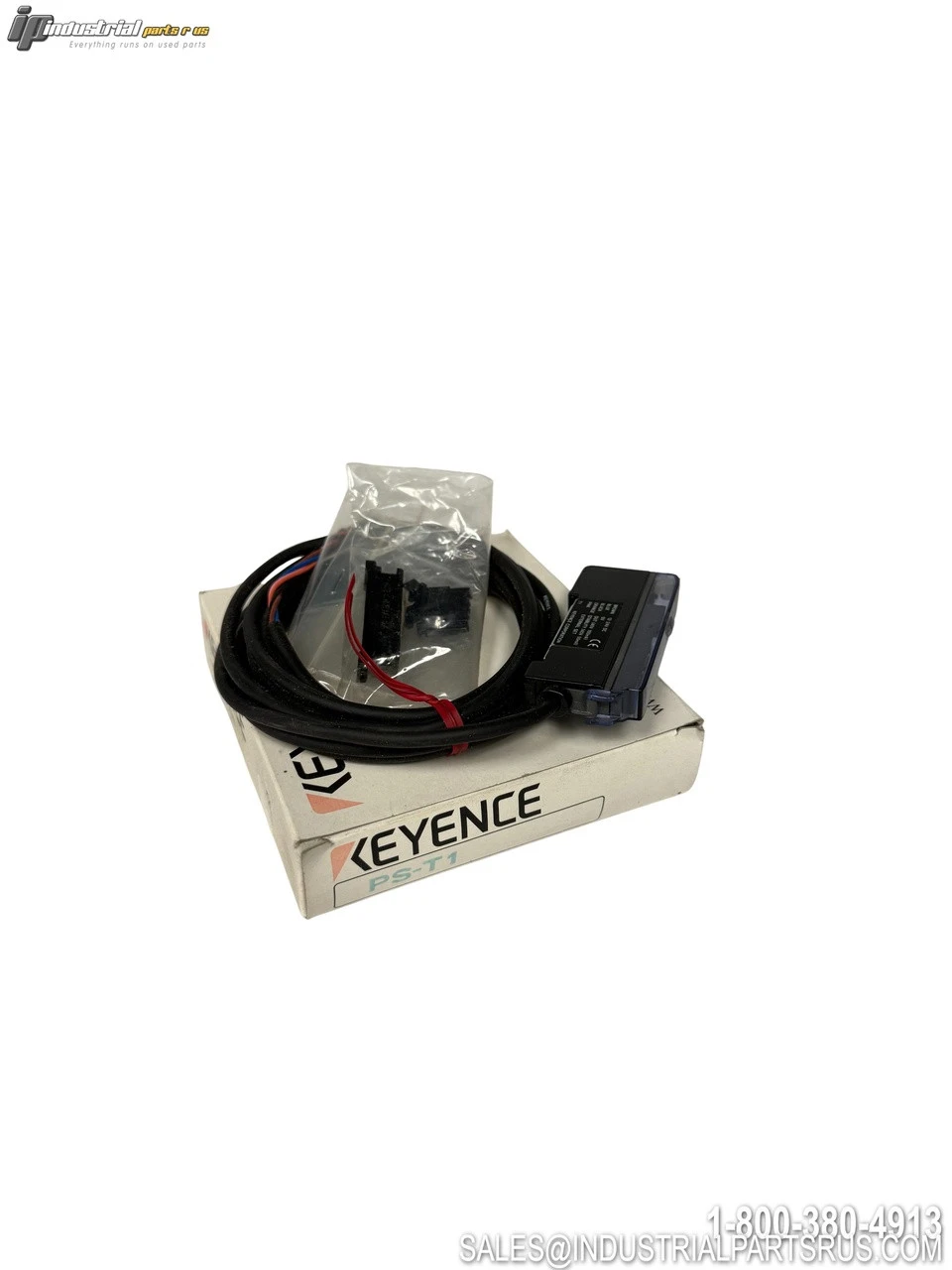

NEW KEYENCE PS-T1

The Keyence PS-T1 is a photoelectric sensor amplifier unit featuring NPN output configuration. This main unit is part of the PS-T series of one-touch calibration photoelectric sensors designed for industrial automation and sensing applications. The unit provides stability output and serves as the main control unit in multi-unit photoelectric sensor configurations.
Specification
Value
Brand
Keyence
Model/Part Number
PS-T1
Series
PS-T
Unit Type
Main Unit
Output Type
NPN
Supply Voltage
12 to 24V DC
Current Consumption
35 mA max
Control Output Current
100 mA max
Stability Output Current
50 mA max
Timer Function
ON-delay: 40ms, OFF-delay: 40ms
Protection Circuit
Reverse polarity, Over-current, Surge absorber
Multiple Connections
Up to 16 expansion units
Indicator Lamps
Red LED (output), Green LED (stable operation), Yellow LED (calibration)
External Calibration Input
Non-voltage input (contact, solid state)
We warranty all items for 30 days from date of purchase.

SKU: AI0415
UPC: 679523686321
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686321
Output Type: NPN
Sensor Type: Photoelectric
Full Load Amps: 35 mA max
Manufacturer: Keyence
Part Number: PS-T1
Shelf: O-4
Model: PS-T1
MPN: PS-T1
Type: Photoelectric Sensor
