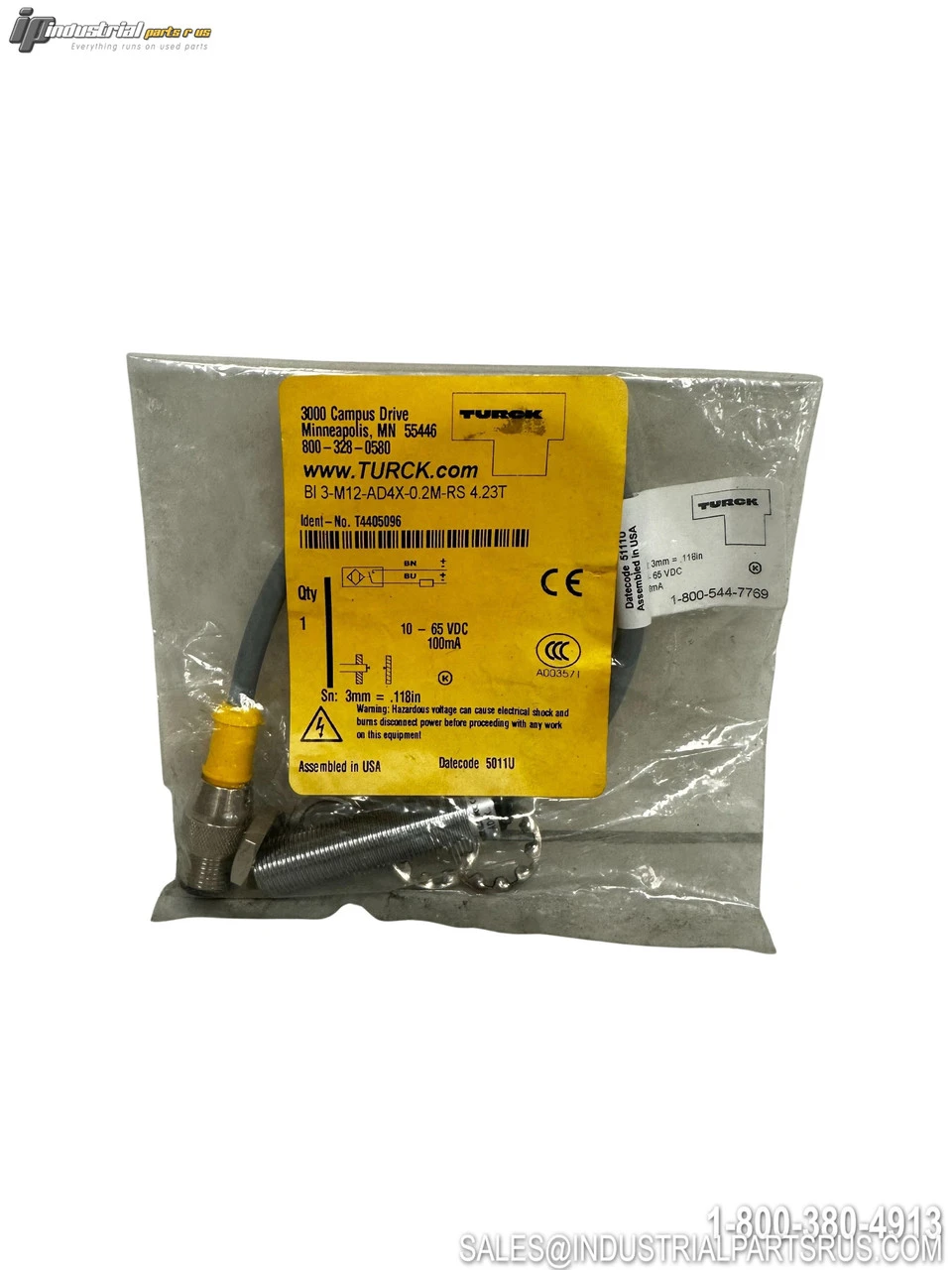

NEW TURCK BI 3-M12-AD4X 0.2M-RS 4.23T
Overview
Description
The TURCK Bi 3-M12-AD4X 0.2M-RS 4.23T is an inductive proximity sensor designed for industrial automation applications requiring precise object detection. This embeddable sensor features a shielded design for flush mounting in metal and provides reliable switching performance with LED status indication.
Specification
Value
Brand
TURCK
Model/Part Number
Bi 3-M12-AD4X 0.2M-RS 4.23T
Sensor Type
Inductive Proximity Sensor
Sensing Range
3mm
Supply Voltage
10-65VDC
Thread Size
M12
Housing Material
Chrome Plated Brass
Output Type
Normally Open (NO)
Connection Type
2-Wire DC
Cable Length
0.2m
Maximum Current
100mA
Design
Embeddable/Shielded
Protection Rating
IP67
Operating Temperature
-25°C to +70°C
Switching Frequency
1kHz Maximum
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0435
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Output Type: Normally Open
Sensor Type: Inductive Proximity Sensor
Full Load Amps: 100mA
Manufacturer: Turck
Part Number: BI 3-M12-AD4X 0.2M-RS 4.23T
Shelf: K-45
Model: BI 3-M12-AD4X 0.2M-RS 4.23T
MPN: BI 3-M12-AD4X 0.2M-RS 4.23T
Type: Inductive Proximity Sensor
