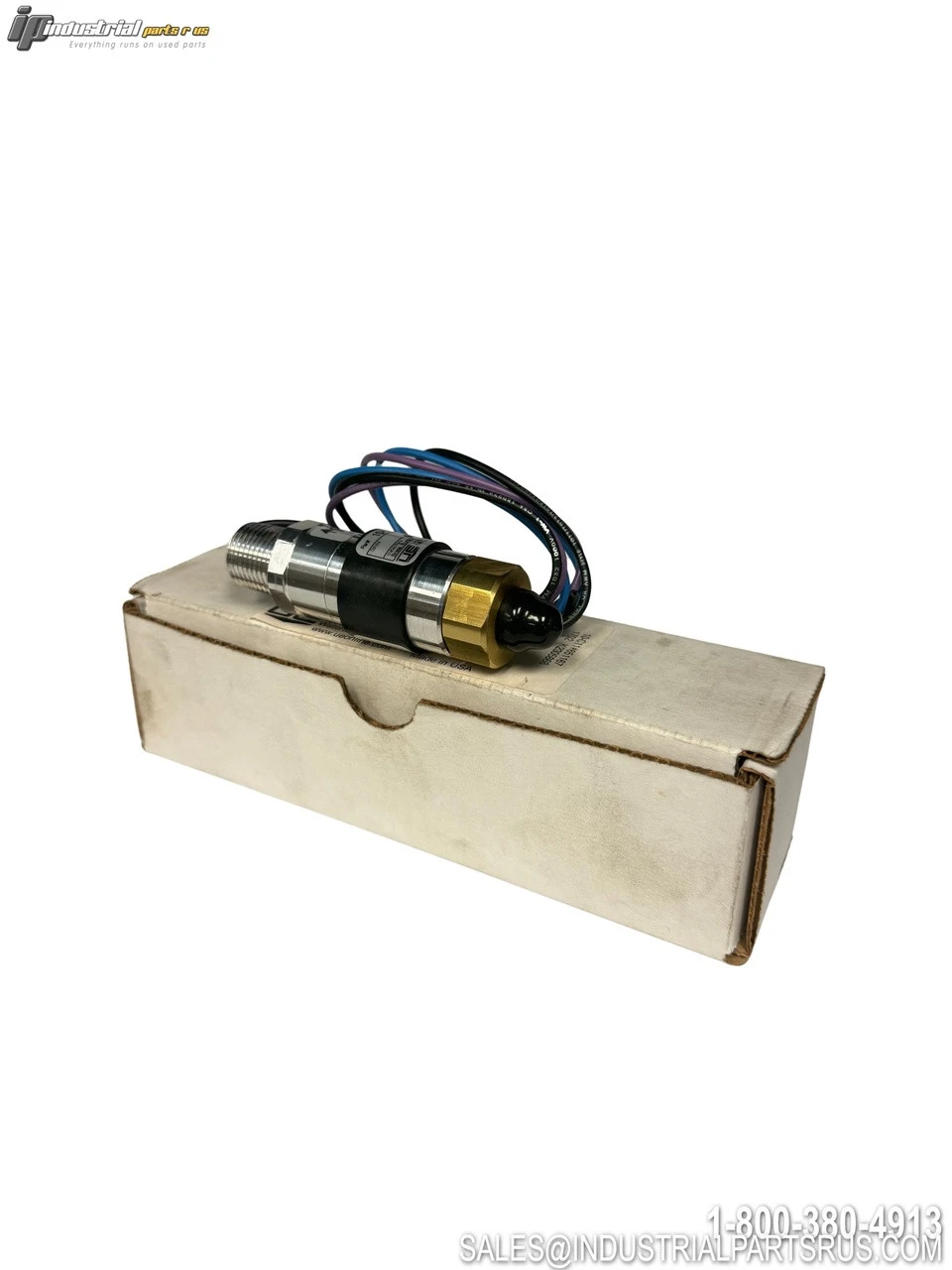

NEW UE 10-C11

The United Electric 10-C11 is a compact cylindrical pressure switch designed for light industrial and OEM applications where space is at a premium. The 10 Series pressure switch is designed for light industrial applications as well as for OEM equipment. A compact, cylindrical design and choice of electrical terminations make the 10 Series simple to install and operate. Just 1-1/4 inches in diameter and as small as 3 inches high, this compact, cylindrical switch mounts wherever space is at a premium.
Specification
Value
Brand
United Electric
Model/Part Number
10-C11
Product Type
Pressure Switch
Series
Spectra 10
Pressure Range
10-150 PSI
Switch Output
1 SPDT
Electrical Rating
5A@125/250 VAC or 5A/3A@30VDC
Enclosure Type
NEMA 4
Enclosure Material
Aluminum
Electrical Connection
1/2" MNPT conduit w/20" leads (3-wire)
Pressure Connection
1/8" MNPT brass
Sensor Type
Buna-N diaphragm and O-ring
Adjustment Type
External screw adjustment
Diameter
1.25 inches
Minimum Height
3 inches
Proof Pressure
3000 PSI
Overrange Pressure
1500 PSI
Deadband
2 to 10 PSI
Approvals
UL, CSA, CE, cULus
We warranty all items for 30 days from date of purchase.

SKU: AI0434
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 7.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Sensor Type: Buna-N diaphragm and O-ring
Manufacturer: Ue
Enclosure Type: NEMA 4
Part Number: 10-C11
Shelf: A-18
Model: 10-C11
MPN: 10-C11
Type: Pressure Switch
