USED ALLEN-BRADLEY 800T-QA24G
Overview
Description

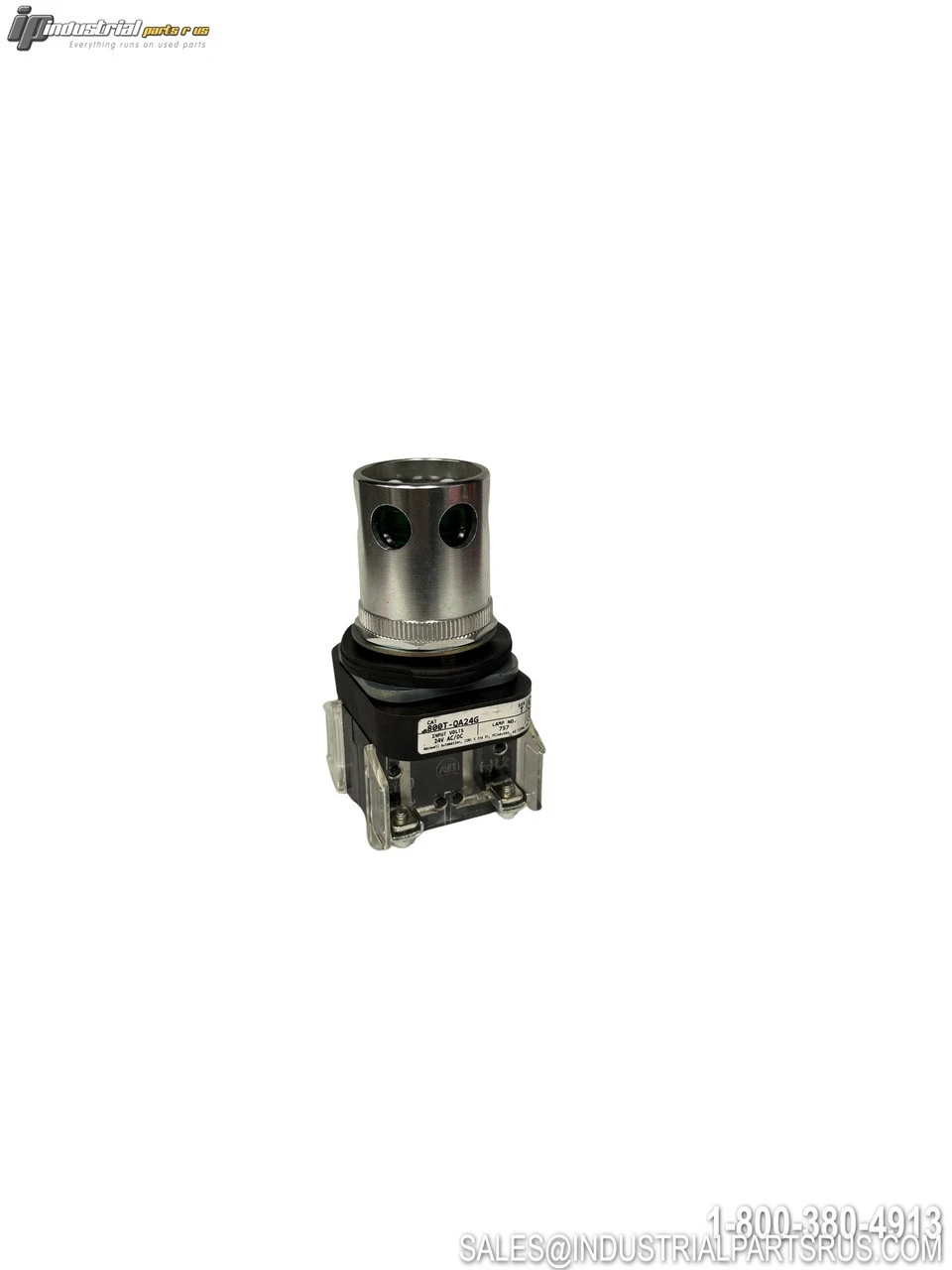

The Allen-Bradley 800T-QA24G is a rugged 30mm illuminated momentary push button designed for industrial automation applications. This Type 4/13 rated device features an extended head with guard, green incandescent illumination at 24V AC/DC, and provides reliable switching with 1 normally open and 1 normally closed contact configuration.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
800T-QA24G
Product Type
Push Button
Series
800T
Size
30mm
Action Type
Momentary
Actuator Type
Extended Head with Guard
Voltage
24V AC/DC
Contact Configuration
1 NO, 1 NC
Contact Rating
10 Amps
Illumination Type
Incandescent
Lens Color
Green
Protection Rating
Type 4/13
Block Type
Standard
Material
Metal
Mounting Type
1-Hole, Screw
Weight
0.35 lbs
UPC
781180189272
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI0429
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Allen-Bradley
Part Number: 800T-QA24G
Shelf: J-43
Model: 800T-QA24G
MPN: 800T-QA24G
Type: Push Button
