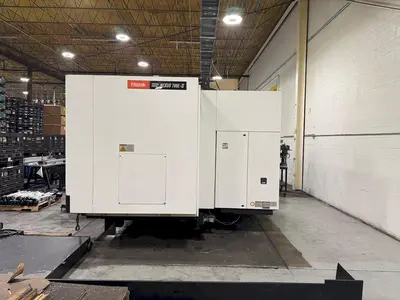

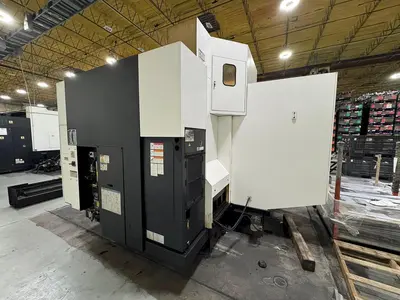

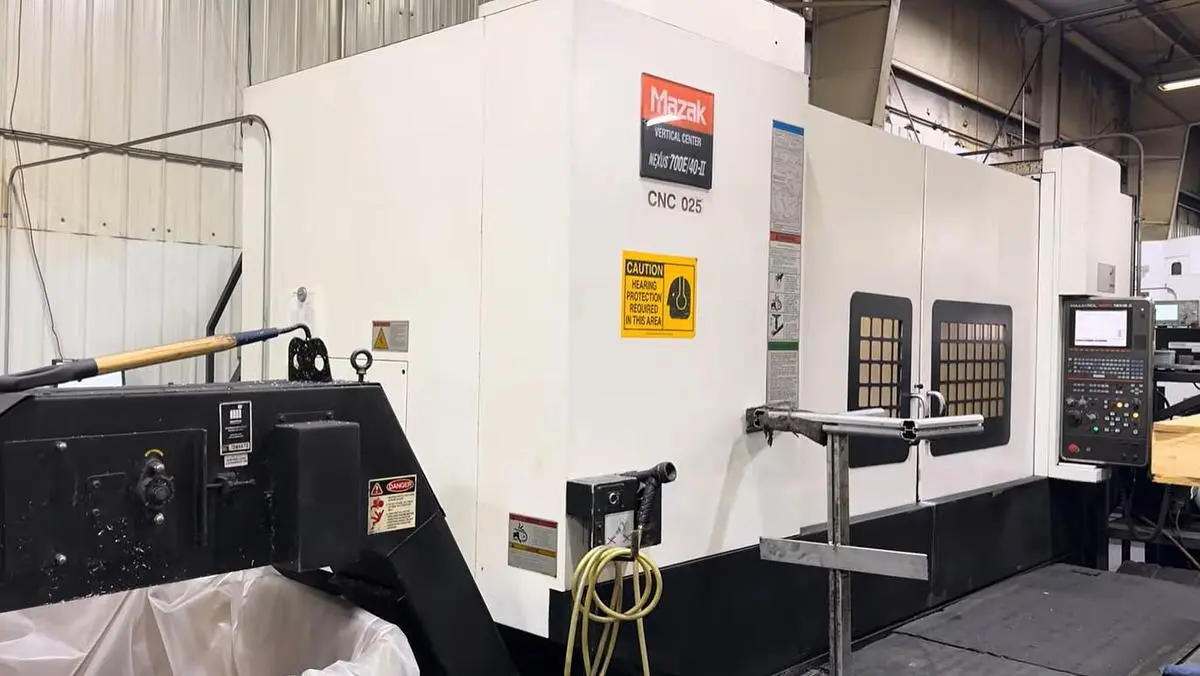

USED 2013 MAZAK NEXUS VCN 700E/40-II

4th Axis Interface
48 Position Side Mounted Tool Changer
Chip Conveyor
Remote Jog Handle
EIA/ISO Input Function
Rigid Tapping

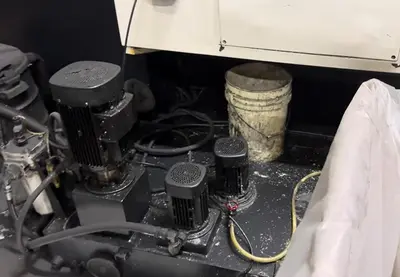

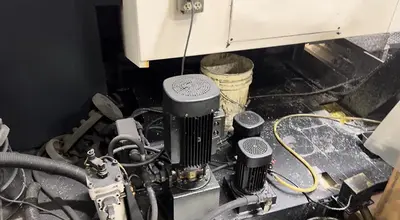

Flood Coolant
PCMCIA 2 Slots
RS 232 Port Interface
Mazak 2D Software
12.1" Color LCD Monitor
Multi Tap Transformer - Currently Wired 208V

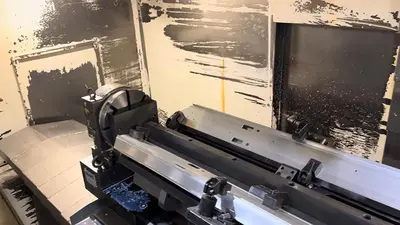

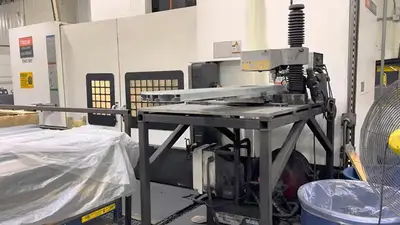

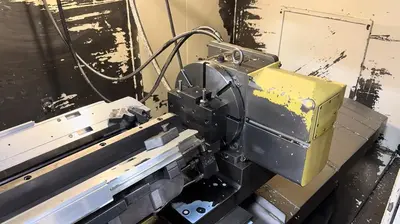

**4th Axis Rotary Table is available for an additional cost with total price of $165,000**

The 2013 Mazak Nexus VCN 700E/40-II is a high-performance CNC Vertical Machining Center designed for precision and efficiency in industrial applications. Equipped with the versatile Mazatrol Matrix Nexus 2 Control, this machine offers extensive capabilities with an 80" x 27.5" table and remarkable travel distances of 80" on the X-axis, 27.5" on the Y-axis, and 25.6" on the Z-axis. A sturdy construction allows it to handle up to 5,511 lbs. on its table, ensuring suitability for hefty and complex machining operations.

This machine boasts a robust 30 HP spindle motor with a maximum speed of 12,000 RPM and a spindle taper of CAT #40, delivering reliable power and accuracy. The 48-station automatic tool changer enhances productivity with a rapid tool change time of just 1.3 seconds. Additionally, it features excellent rapid traverse rates of 1182 IPM on the X and Y axes and 790 IPM on the Z-axis, enabling swift and efficient machining processes. For enhanced operations, a rotary table can be added at additional cost.

Designed for ease of operation and high throughput, the Mazak Nexus VCN 700E/40-II is equipped with a prepped 4th axis and a chip conveyor to streamline tasks further. The machine's dimensions, 198" x 139" x 143", and its substantial weight of 31,500 lbs., highlight its capability for handling challenging production environments, making it a valuable asset for any manufacturing facility.

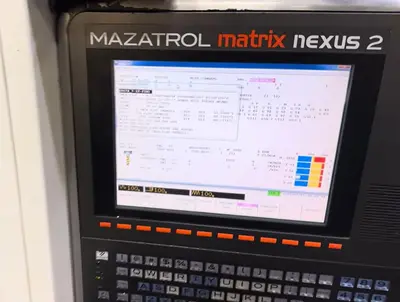

Control: Mazatrol Matrix Nexus 2 Control
Table Size: 80" x 27.5"
Maximum Weight on Table: 5,511 lbs.
Distance Spindle Nose to Table Top: 7.87" - 36.22"
X-Axis Travel: 80"
Y-Axis Travel: 27.5"
Z-Axis Travel: 25.6"
Spindle Taper: CAT #40
Spindle Speeds: 12,000 RPM
Spindle Motor: 30 HP
Spindle Torque: 222.7 ft./lbs.
Number of Tool Positions: 48 Station Tool Changer
Maximum Tool Length / Weight: 17.7" / 44 lbs.
Tool Change Time Tool to Tool: 1.3 seconds
Rapid Traverse Rates X, Y / Z: 1182 IPM / 790 IPM
Cutting Feedrates: 1182 IPM
Machine Dimensions: 198" x 139" x 143"
Machine Weight: 31,500 lbs.
