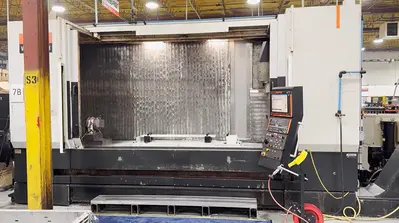

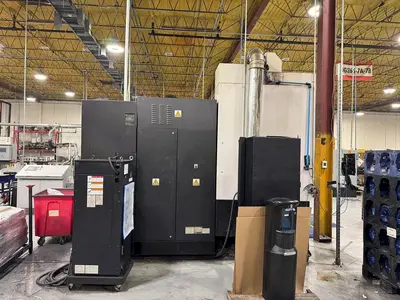

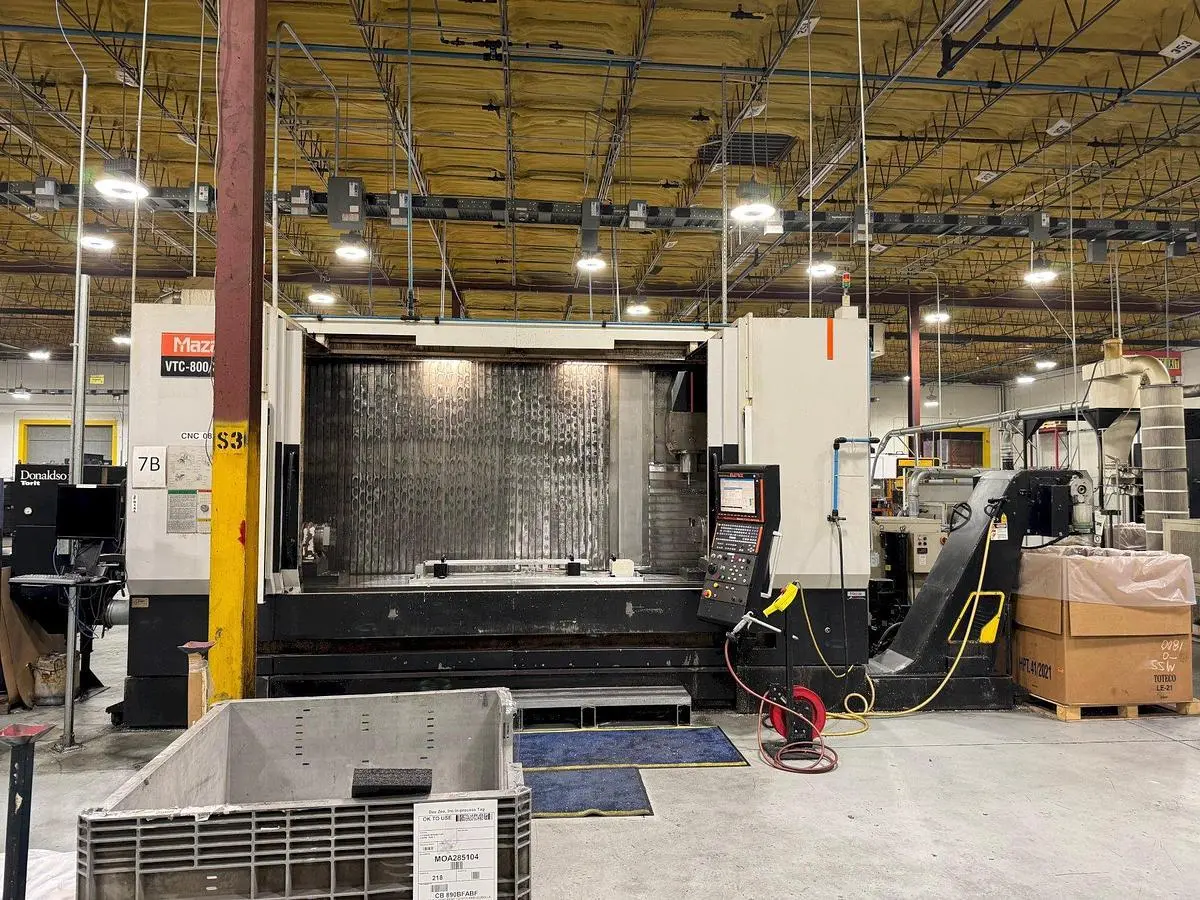

USED 2010 MAZAK VTC800E/30-SR

Pendulum Style B Axis Head with .0001 Degree Incremental Movement
Index Coupling of B Axis can be clamped every 5 degree increment
4th & 5th Axis Interface

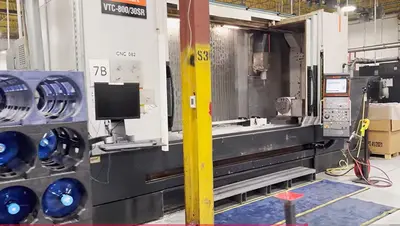

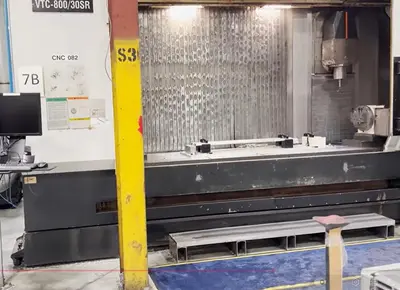

4th Axis Rotary Table as seen in Photos
Chip Conveyor
18,000 RPM Spindle
48 Station Side Mounted Tool Changer

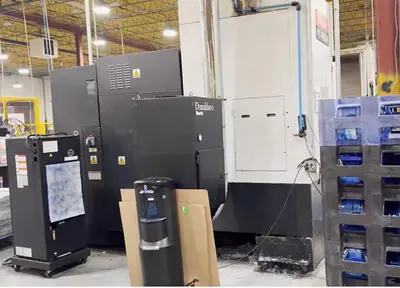

Chiller Unit
High Pressure Coolant System

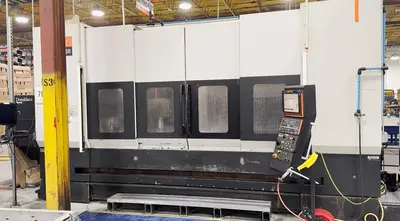

Auto Door
EIA Input Function
Rigid Tapping
Complete Coolant System with Tank & Pump
Multi Tap Transformer
PCMCIA Interface
IC Memory Card Interface
RS 232 Port Interface

The 2010 Mazak VTC800E/30-SR is a robust 5-axis CNC vertical machining center, ideal for complex precision tasks. Featuring the Mazatrol Matrix Control, this machine offers an expansive table size of 137.8" x 31.49" that can accommodate up to 5,500 lbs. Its substantial travel range includes an X-axis of 118.1", a Y-axis of 31.5", and a Z-axis of 28.35". The B-axis is capable of a +/- 110-degree tilt with precise movements in 0.0001-degree increments, suited for intricate operations.

Equipped with a CAT 40 spindle taper, the machine supports a maximum spindle speed of 18,000 RPM, powered by a 47 HP motor. The tool handling capabilities are enhanced by its 48-position, side-mounted automatic tool changer, making it efficient for various production demands. Rapid traverse rates are impressive at 1,970 IPM, providing swift movement for increased productivity.

Though weighing 35,000 lbs, the VTC800E/30-SR is compact with dimensions of 207" x 140" x 125". It includes options for chip conveyors and preparations for the 4th axis, with an additional rotary table available for purchase. This machining center offers a blend of precision and versatility, making it a valuable addition for manufacturers seeking advanced multi-axis capabilities.
