New | Build-to-Order

NEW BEMATO BMT 2280MA

Ontario, Canada
502Listings|10Followers
Overview
Engine Lathes

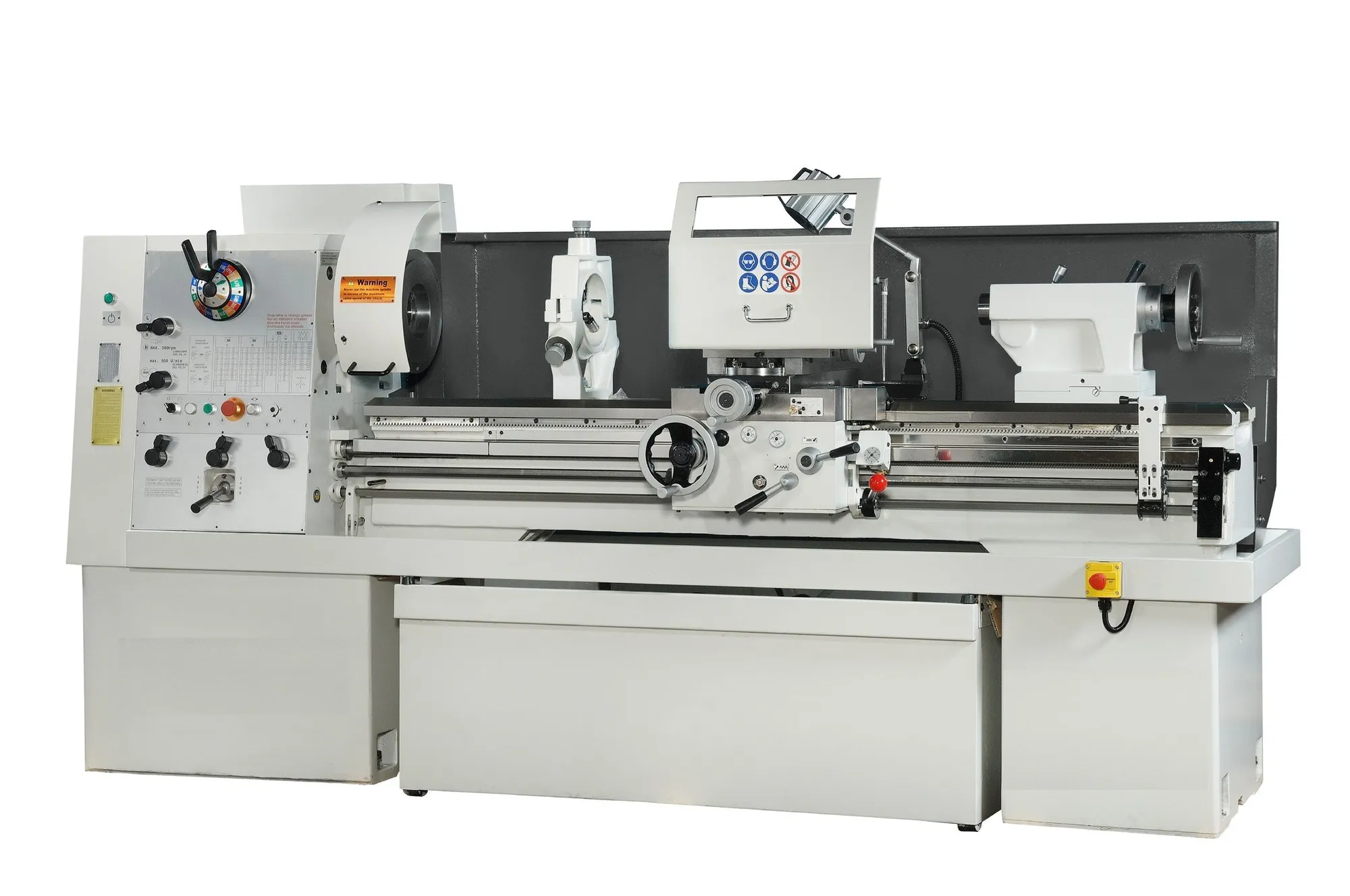

The BEMATO BMT-2280MA CNC Manual Lathe is engineered for precision and performance, offering high-speed machining capabilities in a robust and durable design. Its universal gearbox, high-torque spindle motor, and extensive threading options make it an indispensable tool for workshops and production lines. Whether you’re handling aluminum alloys, carbon steel, or other materials, this lathe is built to deliver exceptional results.

With advanced features like variable-speed options, induction-hardened bedways, and a user-friendly design, the BMT-2040MA ensures accuracy and efficiency for every operation. It is available in various configurations to suit your specific machining needs, making it ideal for automotive, aerospace, and general manufacturing applications.

Key Features:
• High-Speed Spindle: 16-step speeds ranging from 20–1600 RPM.
• Customizable Lengths: Distance between centers ranging from 950 mm to 2240 mm.
• Universal Gearbox: Supports metric, imperial, M.P., and D.P. threading.
• Induction-Hardened Bedways: Ensures durability and long-lasting precision.
• Precision Headstock Gears: Hardened and ground for smooth, accurate operations.

Specs
Swing Over Bed
22.047"
560 mm
Swing Over Cros Slide
15.354"
390 mm
Swing in Gap
31.89"
810 mm
Distance Between Centers
76.772"
1,950 mm
Bed Width
89.764"
2,280 mm
Gap width from Faceplate
8.6614"
220 mm
Spindle Bore
3.1496"
80 mm
Spindle Nose
D1-8
D1-8
Spindle Speed
1,600 RPM
1,600 RPM
Tailstock Quill Travel
11.811"
300 mm
Tailstock Taper Center
MT#5
MT#5
Equipped With

12" BISON 3J D8 CAST CHUCK SEMI-STEEL D1-8 MOUNT
ROLLER TYPE STEADY REST (44-135MM)
ROLLER TYPE LARGER STEADY REST (85-190MM CAPACITY)
ROLLER TYPE FOLLOW REST FOR 2200 SERIES (15-85MM)
FULL LENGTH SPLASH GUARD 80" MODEL
LED WORKING LAMP
CHUCK SAFETY GUARD WITH SWITCH
LEADSCREW COVER FOR 80" MODEL
RAPID FEED ATTACHMENT FOR Z-AXIS MOVEMENT
DIXON JS3 QUICK CHANGE TOOLPOST WITH 6 TOOLHOLDERS
CSA APPROVED ELECTRICAL COMPONENTS
FAGOR BRAND 3 AXES D.R.O FOR BMT 2080/2280MA
GAP BED
MOTOR & ELECTRIC CONTROL SYSTEM
COOLANT SYSTEM
BACKPLATE FOR 3-JAW CHUCK
6-WAY TOOLPOST
THREADS INDICATOR
SOFT START BY INVERTER DRIVING
CENTERS & CENTER SLEEVE
LEVELING BLOCK
SERVICE TOOLS & TOOLBOX
INSTRUCTION & PARTS MANUAL
