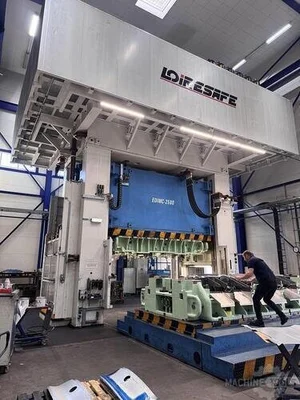

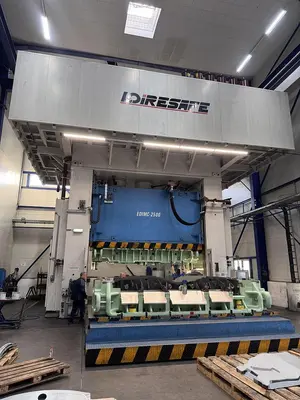

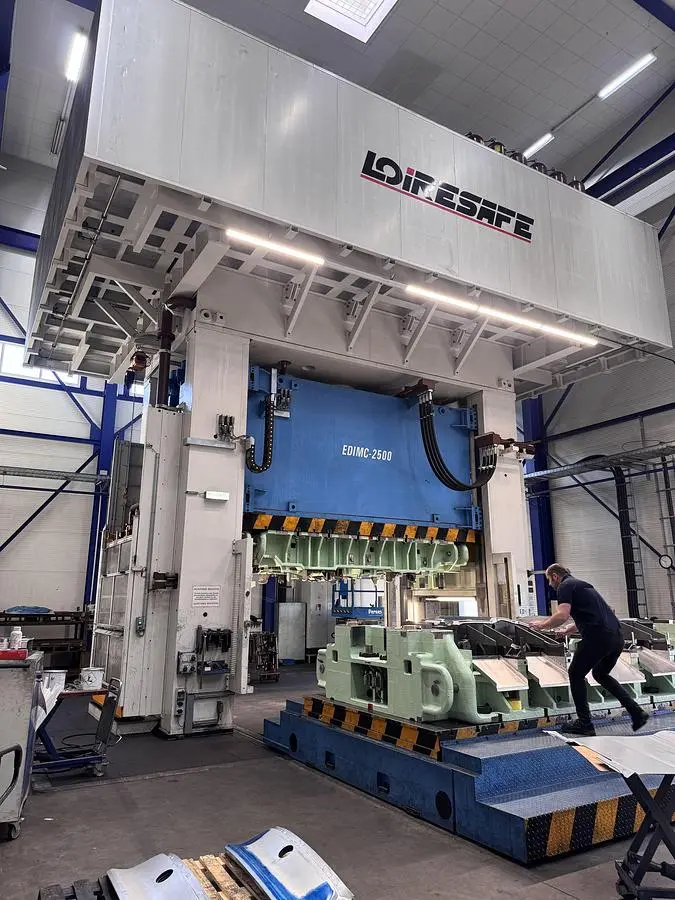

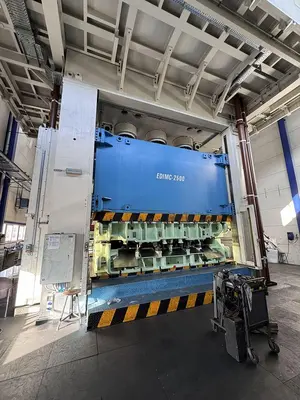

USED 2015 LOIRESAFE EDIMC 2500-250
Overview
2,500 tons Press with sliding table - 3-part drawing cushion in the table - drawing device in the ram - cutting impact damping / parallel holding

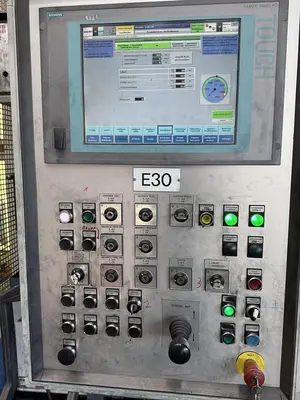

SIEMENS SIMATIC HMI TOUCH CNC Control
Frame Design H-Frame
Hydraulic Drive Type
Openings in Uprights
Number of Cushions - 3
Moving Bolster
Light Barrier
Cutting Impact Damping System
Hydraulic Overload Protection
Specs
Manufacturer: Loire
Model: EDIMC 2500-250
Year: 2015
Condition: Used
Stock Number: 5654321
Press Total Force (Nominal): 2500 Ton
Press table dimensions: 5,000 x 2,500 mm
Ram clamping surface: 5,000 x 2,500 mm
Ram stroke: 1,700 mm
Ram (Hydraulic Press) number of main cylinders: 3
Approximate max velocity: 380 mm/s
Working max velocity: 200 mm/s
Ram ejectors stroke: 200 mm
Ram ejectors force: 200 Ton
Die cushion (table cushion) number: 3
Force of cushion: 200 Ton
Die cushion stroke: 350 mm
Distance table to ram max: 2,200 mm
Tool length max: 5,000 mm
Tool width max: 2,500 mm
Tool height max: 1,600 mm
Electrics: 500 kW - 400 V - 50 Hz
Machine weight: 533,000 kg
