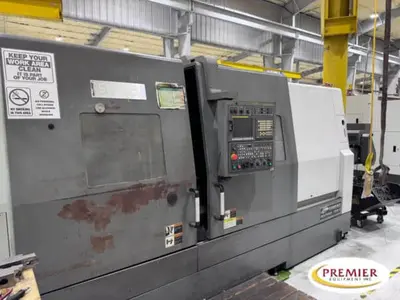

SMEC SL-45/2200BB – 2012

SMEC SL-45/2200BB CNC Turning Center

Swing over the bed30.51”
Swing over the cross slide24.80”
Max. turning diameter27.17”
Max. turning length  87.80”
Spindle noseA2-15 (ASA)
Main spindle motor40/50 hp
Spindle speed1,200 rpm with 24” chuck
Bore diameter 7.125”
Draw tube ID6.50”
Spindle torque (30 min. rating)2,330 ft-lbs
Spindle Drive Method2-Speed Gear
X axis travel13.78”
Z axis travel91.73”

Fanuc Series Oi-TD
Box way construction with anti-friction mating way surfaces
12-Station Turret
Tool Presetter
Manual Steady Rest RIP-216
Tailstock
Chip Conveyor
Large Chuck
