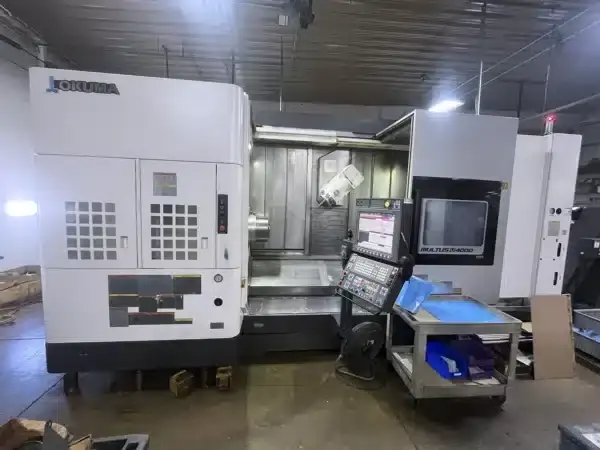

Okuma Multus U4000-2SW/2000 – 2015

2015 Okuma Multus U4000 2SW/2000
machine specifications

Control: Okuma OSP-P300S

Main Spindle

Spindle Nose:A2-11

Maximum Speed: 3,000 RPM

spindle power: 22 HP (continuous) / 43 HP (30-minute)

Spindle Bore (Big Bore): 4.41″

Sub-Spindle: A2-8

Maximum Turning Diameter: 25.6″

Maximum Turning Length: 78.7″

B-Axis Milling Head:

B-axis range: -30° to +210°

Milling Spindle Speed: 12,000 RPM

Axis Configuration: 8-Axis / Simultaneous 5-Axis Machining

AUTOMATIC TOOL CHANGER: 80 Tools – Capto C6

Machine Construction: Heavy-duty box-way design for high-torque cutting
machine equipped with

Big Bore A2-11 Main Spindle

5-Axis Machining Package

NC B-Axis Contouring

C-Axis Synchronization

Lower Turret Milling Function

Negative Tool Radius Compensation

Lathe Tool Indexing – Multi-Edge

Z-Axis Auto Zero Offset

C-Axis Auto Zero Offset

Hydraulic Oil Temperature Regulator

Rapid Traverse Override Switch

80-Station ATC – Capto C6 (with Barfeeder Cover)

Renishaw RMP60 Automatic Part Probing

Touchsetter

Used Tool List Display
