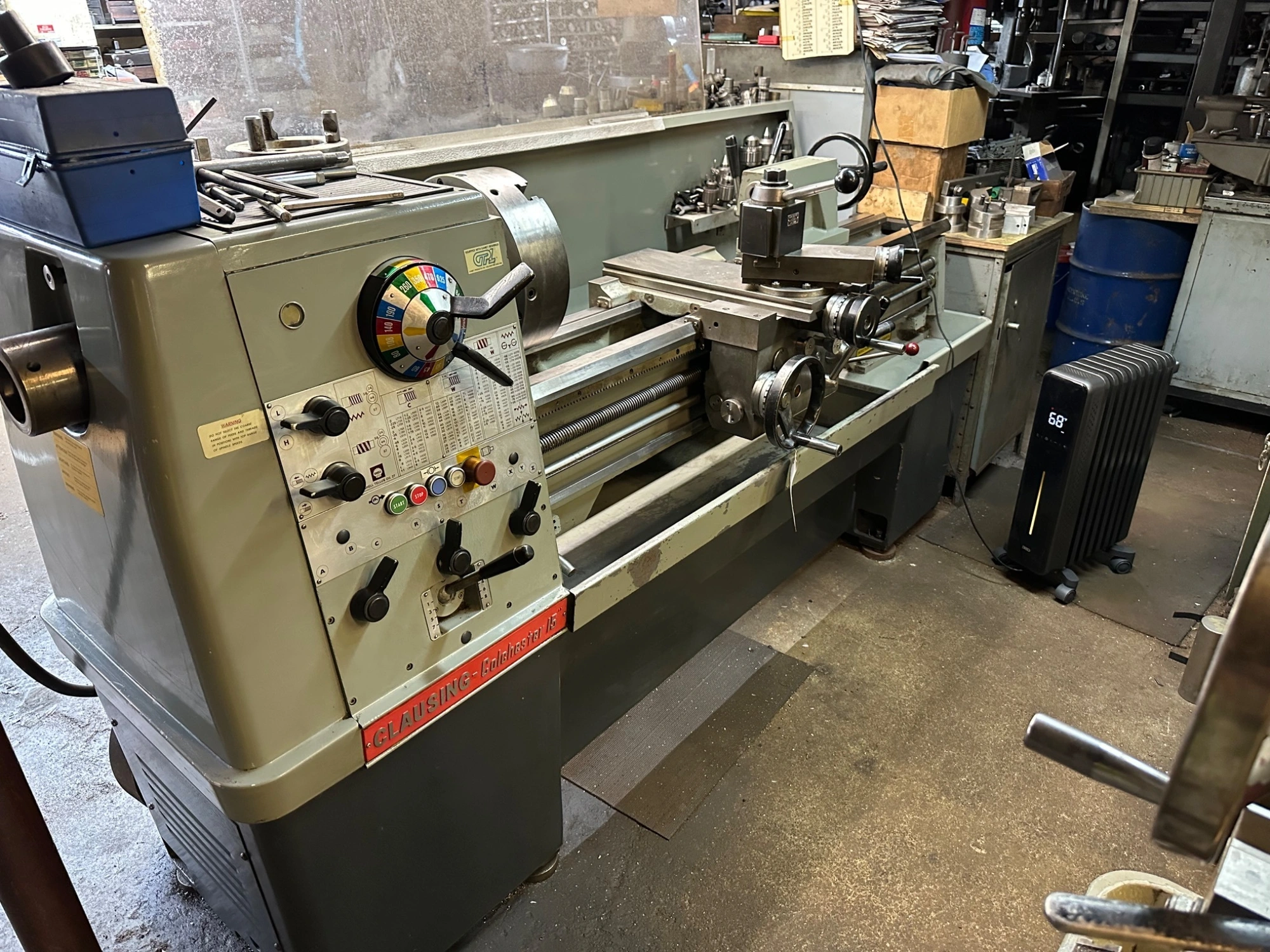

15" x 50" Clausing Colchester Engine Lathe, 12" 3-Jaw Chuck, 2-1/8" Spindle Hole, Aloris Holder, Coolant System, Tailstock, Tooling
| Swing | 15" | 381 mm |
| Centers | 50" | 1,270 mm |
| Spindle Bore | 2" | 50.8 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 2,000 RPM | 2,000 RPM |
Swing Over Bed - 15.25"
Swing Over Cross Slide - 9.5"
Distance Between Centers - 50"
Spindle Hole - 2.125"
Spindle Nose - D1-6 Camlock
Spindle Speeds (16) - 25 - 2,000 RPM
Main Motor - 7.5 HP
Bed Width - 11"
Type of Ways - Vee and Flat
Cross Slide Travel - 9.25"
Compound Slide Travel - 4.75"
Tailstock Quill Diameter - 2.25"
Tailstock Quill Travel - 6.25"
Tailstock Taper - 4MT
Threads, Metric (39) - 0.2 - 14.0 mm
Threads, Inch (45) - 2 - 72 TPI
Approximate Floor Space - 96" L x 40" W x 49" H
Approximate Weight - 3,750 lbs.
Electrics - 230 Volt, 3 Phase
- 12" 3-Jaw Chuck
- Inch Metric Threading
- Aloris Model CA Quick Change Toolpost
- Misc. Aloris CA Holders
- Coolant System
- Thread Dial
- Trav-a-Dial
