USED KICE INDUSTRIES INC. VJ10X8X8

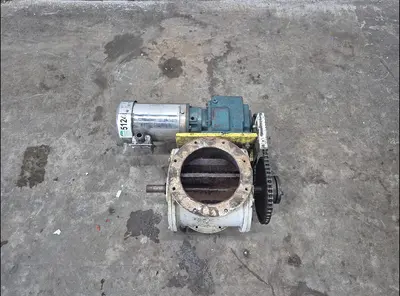

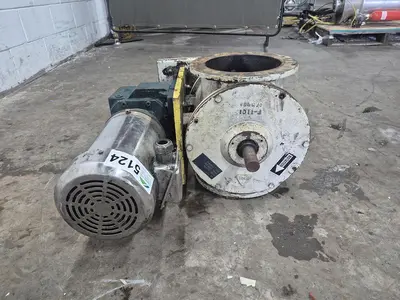

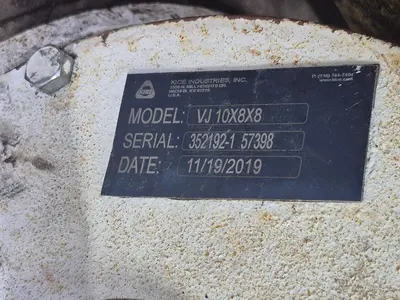

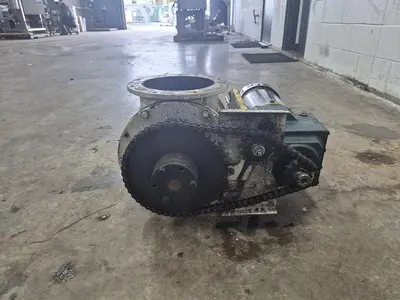

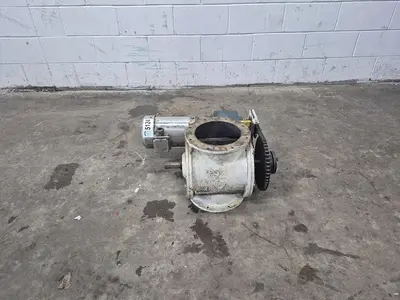

Kice VJ10X8X8 Rotary Airlock Valve
The Kice VJ10X8X8 rotary airlock valve is primarily used in industrial material handling systems to regulate the flow of dry, free-flowing bulk materials while maintaining a seal between two areas with different pressure or vacuum levels.
Specs:

Primary Applications: Pneumatic Conveying Systems, Dust Collection Systems and Feeding Processing Equipment
Industries Used In: Agriculture/Food Processing, Chemical Manufacturing, Plastics and Minerals/Construction
Inlet/Outlet Size: 8" x 8" square openings
Rotor Diameter: 10" diameter
Material: Heavy-duty cast-iron body and rotor (some models are carbon steel)
Valve Height: 13.5" (inlet to outlet)
Capacity: Approximately 1/3 cubic foot of product per revolution

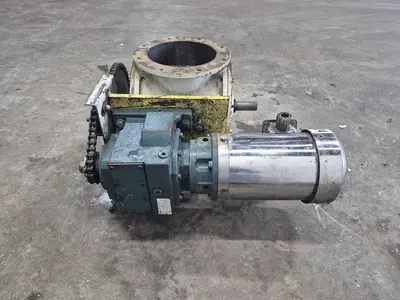

Powered by a 2/1.5 HP Leeson Washdown Duty Motor

Model: C6T17FC179
3-Phase
208-230/190 V
6.2-6/5.2 A
1740/1440 RPM
60 Hz

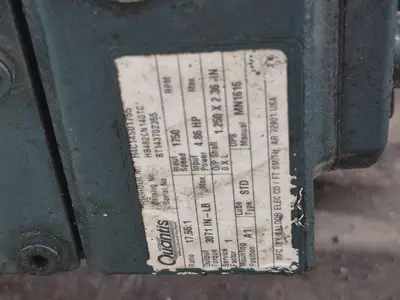

Doge Quantis Inline Helical Speed Reducer (Gearbox)

Ratio: 17.55:1
Output Torque: 3071 IN-LB
Input Speed: 1750 RPM
Input Power: 4.86 HP
